17
Model C707 Operating Procedures
140618

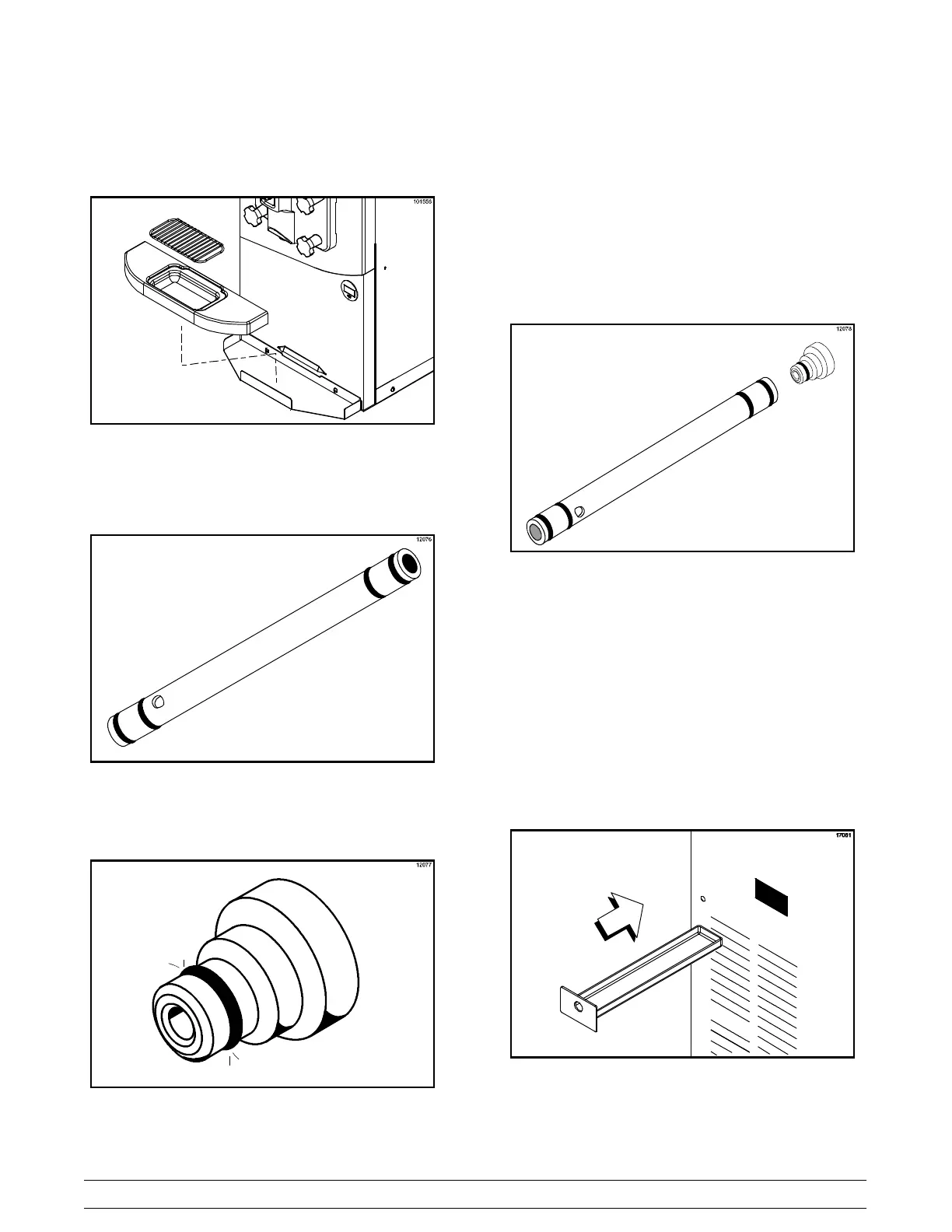

Step 7
Install the front drip tray and the splash shield under
the door spout.
Figure 17
Step 8
Slide two o- rings on one end of the feed tube. Slide
two o- rings on the other end of the feed tube.
Figure 18
Slide the small o- ring into the groove of the air orifice.
Do not lubricate the o- ring.
Figure 19
Note: Make sure the hole in the air orifice is clean and
is not clogged. If the hole in the air orifice should
become clogged, use soap and hot water to clear the
hole. Do not enlarge the hole in the air orifice.
Install the air orifice into the hole in the top of the feed
tube (in the end without the small hole on the side).
Figure 20
Step 9
Lay the feed tube (with the air orifice installed) and the
hopper gasket in the bottom of the mix hopper for
sanitizing.
Step 10
Slide the rear drip pan into the hole in the side panel.
Figure 21
