Taylor c713 - Actuator A.-Draw Switch - X69835 (Model C712 & C713)

4-26
PARTS
Models C712/C713
Parts
4

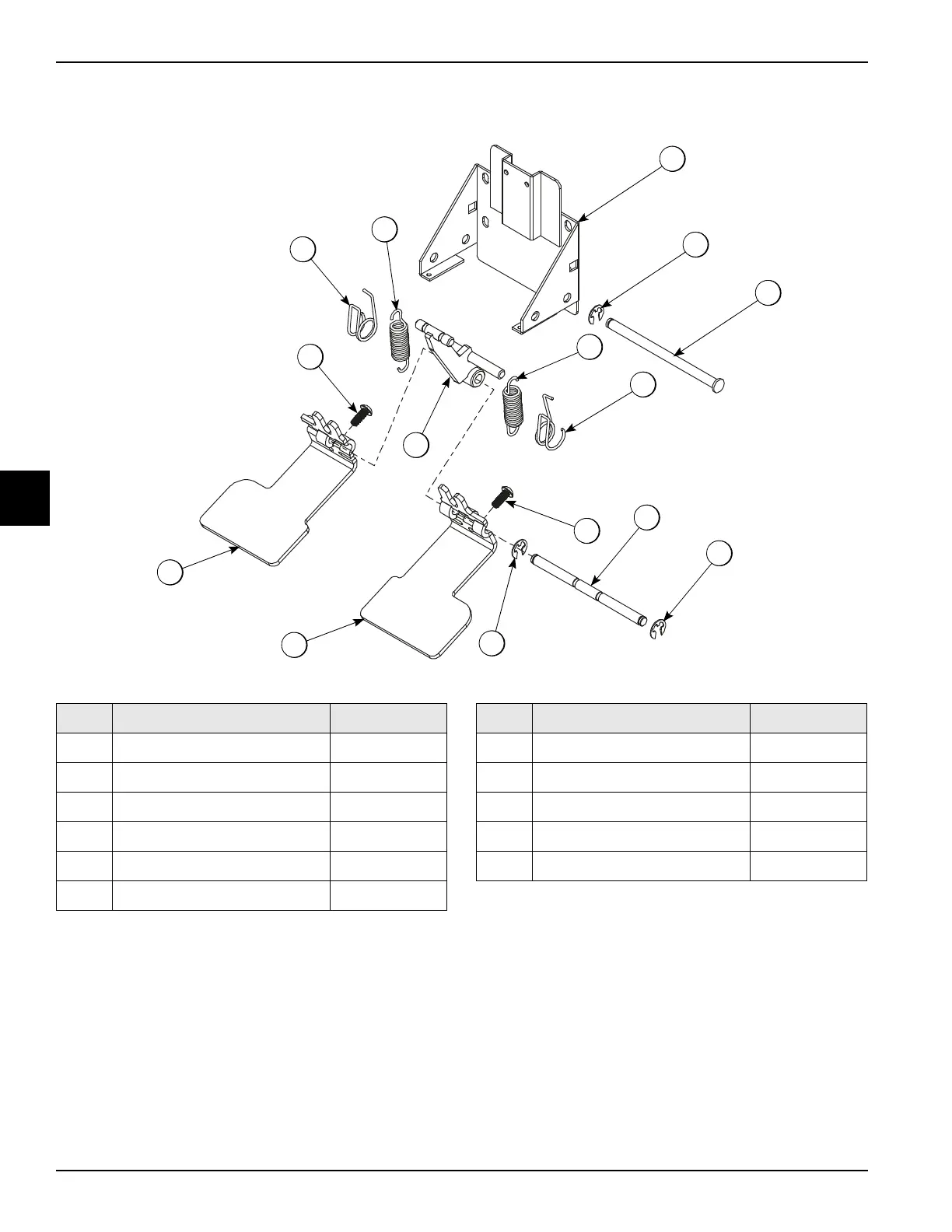

Actuator A.-Draw Switch - X69835 (Model C712 & C713)
Figure 4-16
5
6
4
3
10
10
1
11
2
11
6
9
6
8
7
Item Description Part No.
1 Spring-Return-Left 038923
2 Bracket A.-Spring-Return X69481
3 Spring-Return-Right 038924
4 Pin-Pivot-Draw Switch 038484
5 Bracket A.-Switch X69836
6 E-ring 1/4 Black PHOS 032190
Item Description Part No.
7 Arm-Draw Switch-Left 069166
8 Arm-Draw Switch-Right 069167
9 Rod-Spring Retainer 038254-SP
10 Spring-Extension.467x.062 069392
11 Screw-Adjustment 069374
