Taylor C717 - Model C709 Single-Spout Door and Beater Assembly

OPERATOR PARTS IDENTIFICATION
4-5
Models C709 & C717
Operator Parts Identification
4

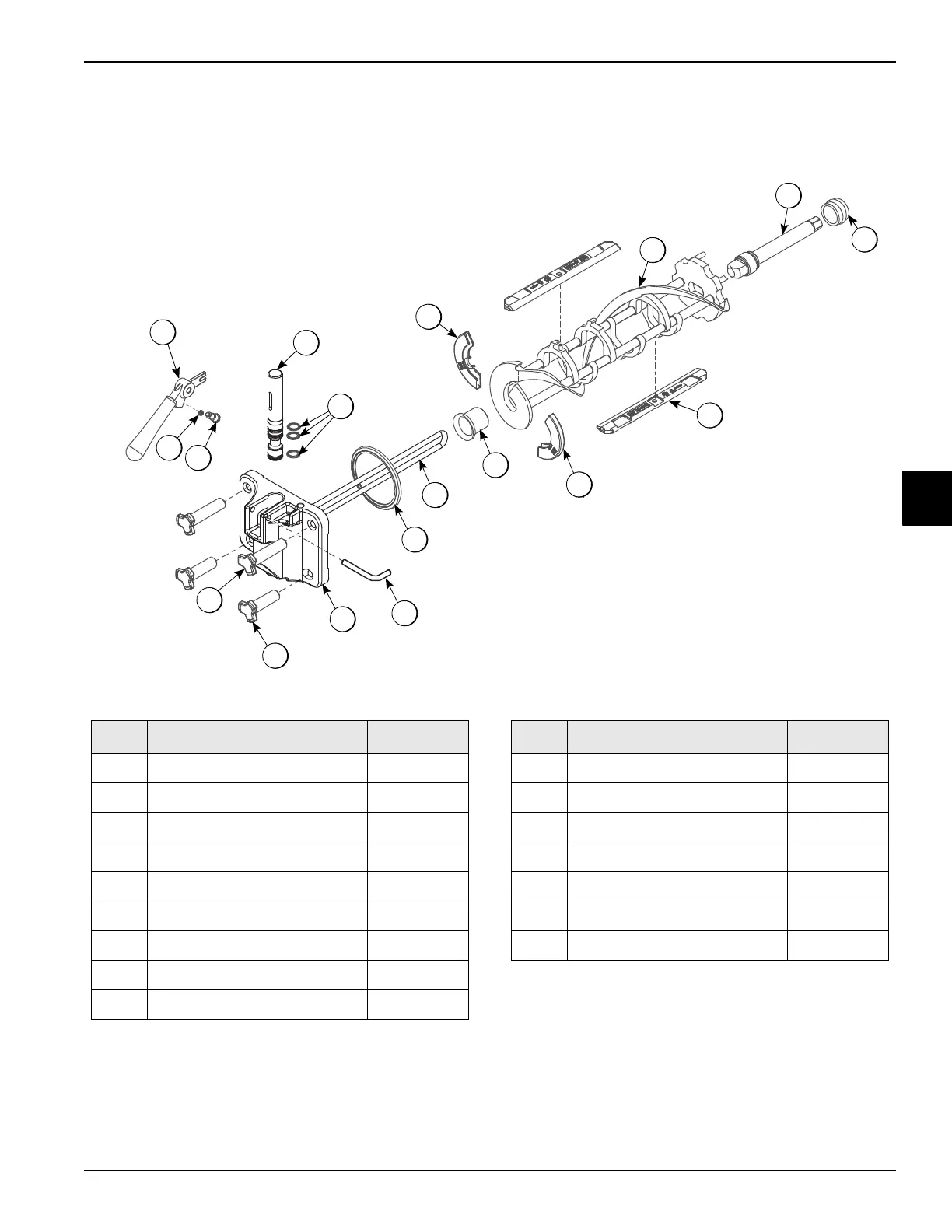

Model C709 Single-Spout Door and Beater Assembly
Figure 4-3
6
10
3
1
6
7
8
9
5
15
14
4
2
13a
11
12
13
6
Item Description Part No.
1 Handle A.-Draw-Push X82875
2 O-ring-1/4 OD x .070W 50 015872
3 Screw-Adjustment-5/16-24 056332-SP
4 Valve A.-Draw X55820
5 O-ring-7/8 OD x .103W 014402
6 Kit A.-Beater-Front Shoes-Bearing X50350
7 Beater A.-3.4QT-1 Pin X46231
8 Shaft-Beater 056078
9 Seal-Drive Shaft 032560
Item Description Part No.
10 Blade-Scraper-Plastic 046235
11 Gasket-Door HT 4"-Double 048926
12 Pin-Handle-SS 055819
13 Door A.-w/Baffle X57332-SER
13a Baffle A.-Long 4 IN w/Rad X50882
14 Nut-Stud-Black 2.563 058764
15 Nut-Stud-Black 3.250 058765
