Introduction
Model C723
Adjustable Draw Handle
This unit features an adjustable draw handle to
provide the best portion control, giving a better,
consistent quality to your product and controlling
costs. The draw handle should be adjusted to
provide a flow rate of 5 to 7-1/2 oz. (142 to 213 g.)
of product by weight per 10 seconds. To INCREASE
the flow rate, tighten the screw. To DECREASE the
flow rate, loosen the screw. (See Figure 6.)

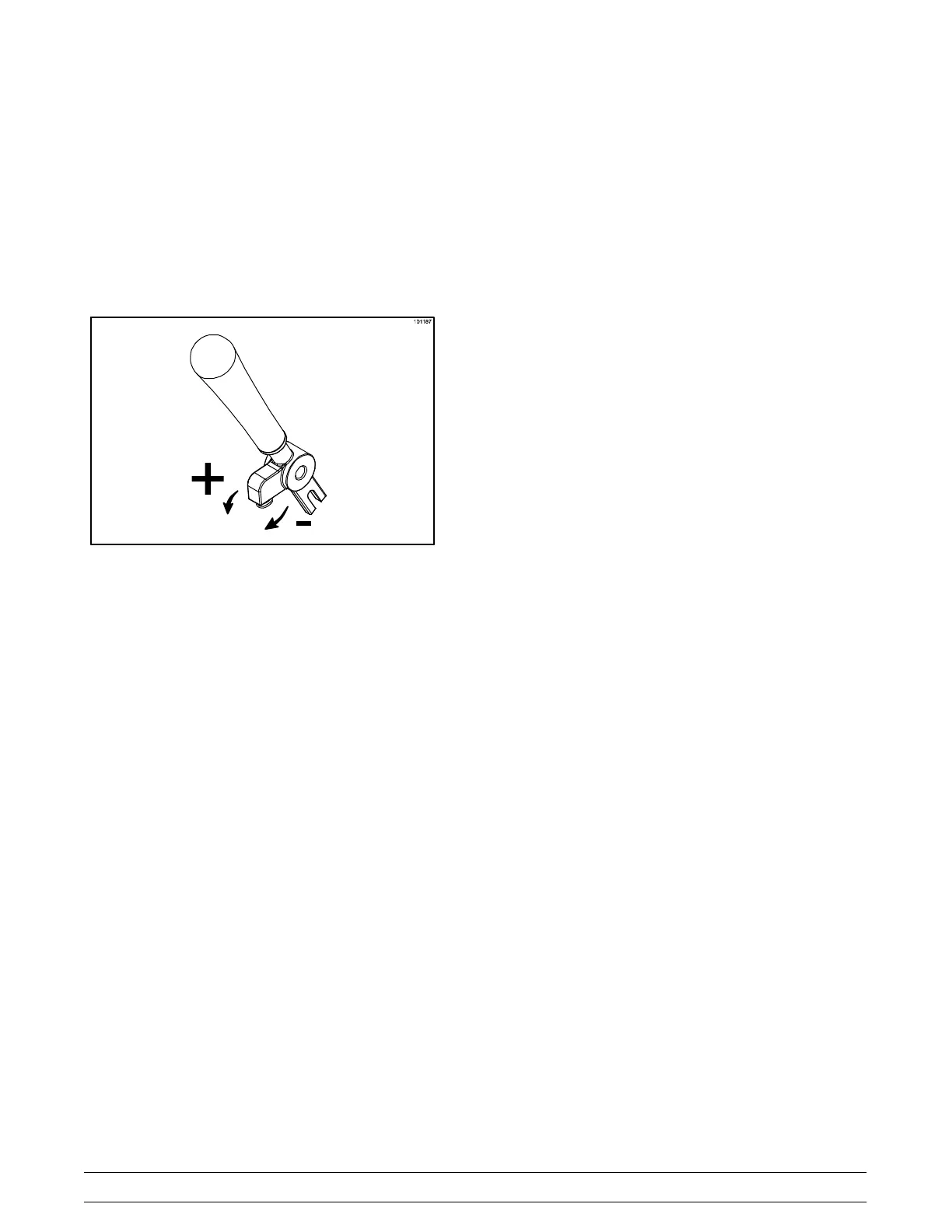

Figure 6

Taylor C723 Specifications

General

Type	Soft Serve Freezer
Mix Flow	Gravity
Number of Flavors	2 + Twist
Electrical	208-230/60/1
Freezing Cylinder Size	3.4 qt (3.2 L)
