Taylor C723 Service Manual

58
Parts
Model C723
140519
Control A.-Upper - X68824-27

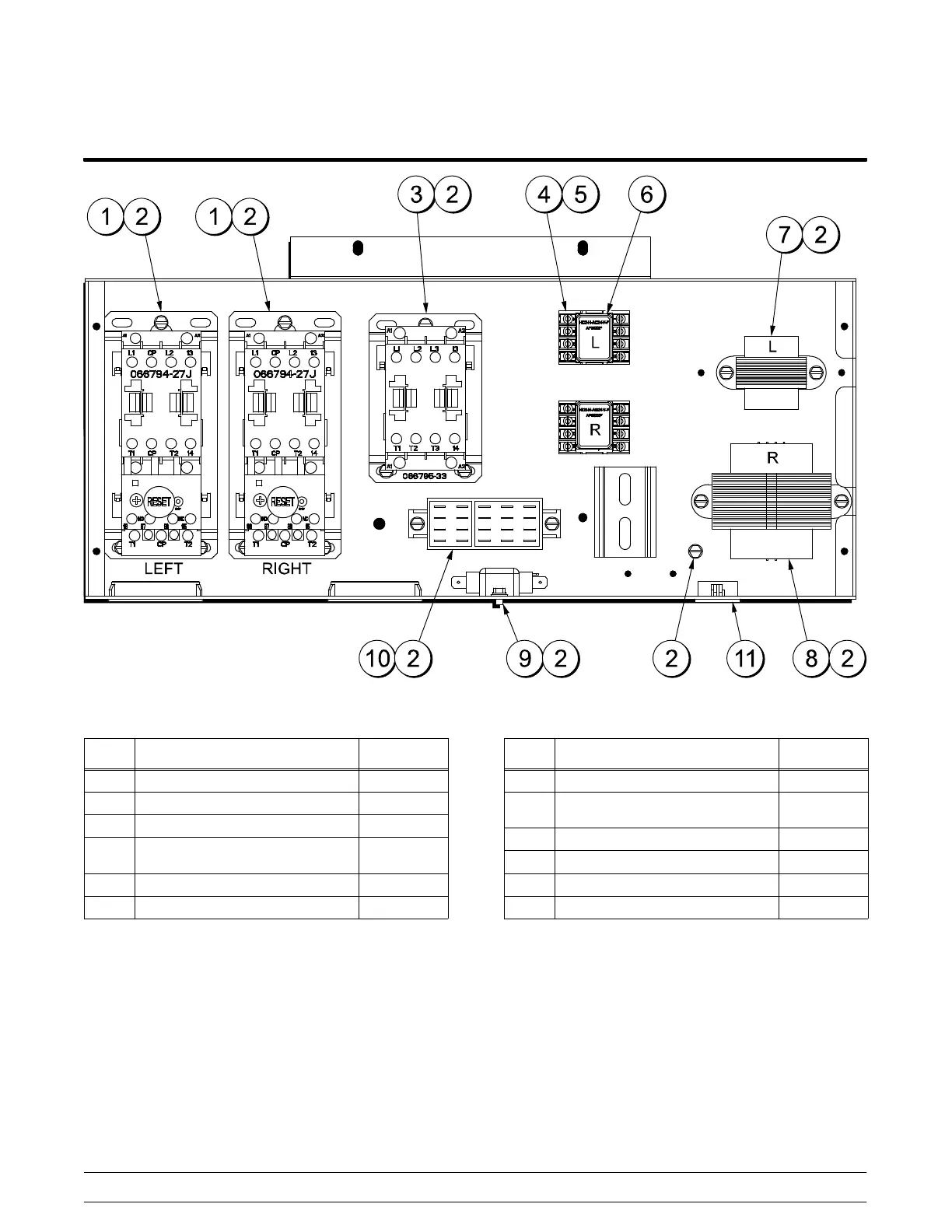

Figure 77
ITEM DESCRIPTION PART NO.
1 STARTER-1 PHASE 4 TO 6.5 A 066794-27J
2 SCREW-8X1/4 SLTD HEX WASH 009894
3 RELAY-3 POLE-20A-208/240 066795-33
4 SOCKET-RELAY-FOR USE
W/05211
052112
5 SCREW-6X5/16 SLTD ROUND B 013646
6 RELAY-DPDT 100UA -7A 1/8HP 052111-03
ITEM DESCRIPTION PART NO.
7 TRANS.-120/208/240V PRI 081783-27
8 TRANS.-CONT.-32VA
120/200/240V
054834
9 FILTER-CORCOM 6EH1 040140-001
10 BLOCK-TERMINAL 2P .25 SPD 051644
11 BUSHING-SNAP 11/16 ID X 7/8 010548
12* HARNESS-WIRE-CNTRL 068874
*NOT SHOWN

Taylor C723 Specifications

General

Type	Soft Serve Freezer
Mix Flow	Gravity
Number of Flavors	2 + Twist
Electrical	208-230/60/1
Freezing Cylinder Size	3.4 qt (3.2 L)
