Taylor C723 Service Manual

59
Model C723
Parts
140519

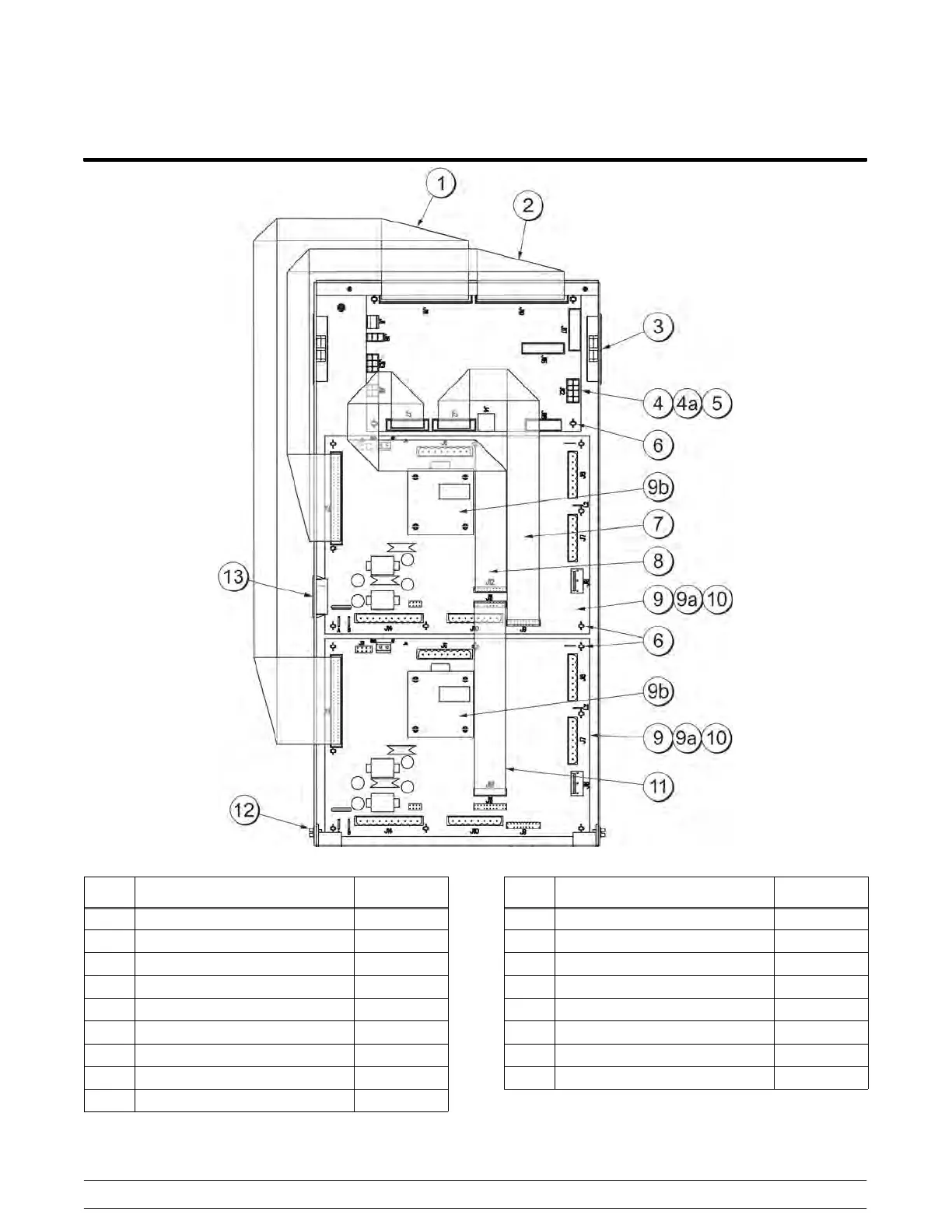

Control A.-Lower - X68828-27
Figure 78
ITEM DESCRIPTION PART NO.
1 CABLE-RIBBON-50C-25"L.DIL/ 040040-025
2 CABLE-RIBBON-50C-20"L-DIL/ 040040-011
3 BUSHING-SNAP 1-5/8ID X 2 OD 043637
4 PCB A.-CONTROL*UVC 4 X69137-SER
4a CONTROL-UVC4 - BASE BRD X68114-SER
5 INSULATOR-PCB-UVC111 059708
6 STANDOFF-NYLON-SNAP-1/2L 053413
7 CABLE-RIBBON-20C-14"L-DIL/ 040040-040
8 CABLE-RIBBON-20C-16"L-DIL/ 040040-049
ITEM DESCRIPTION PART NO.
9 CONTROL-INTERFCE-HT-SS 063964-SER
9a CNTRL-ROHS-HT INTF BASE 063920-SER
9b PCB A.-ROHS-PERSON-HT-SS 063922-SER
10 INSULATOR-PCB-INTERFACE 059706
11 CABLE-RIBBON-20C-17"L-DIL/ 040040-013
12 SCREW-8X1/4 SLTD HEX 009894
13 BUSHING-SNAP 15/16 ID 023396
* HARNESS-WIRE-LW V-CNTL 068917
* NOT SHOWN

Taylor C723 Specifications

General

Type	Soft Serve Freezer
Mix Flow	Gravity
Number of Flavors	2 + Twist
Electrical	208-230/60/1
Freezing Cylinder Size	3.4 qt (3.2 L)
