Parts
Model C723
140519
Box A.-Cap & Relay - X68848-27

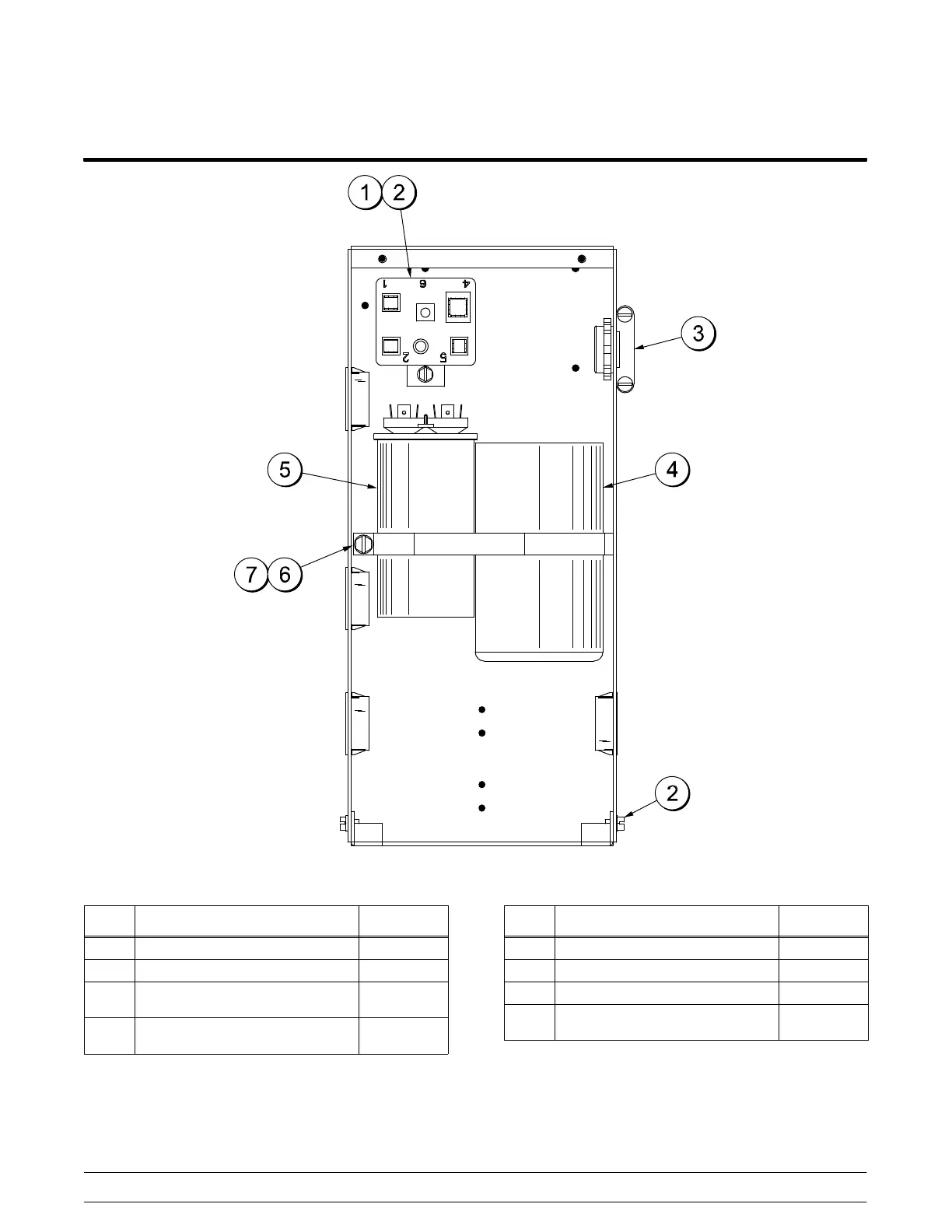

Figure 79
ITEM DESCRIPTION PART NO.
1 RELAY-START-COMPRESSOR 062363
2 SCREW-8X1/4 SLTD HEX WASH 009894
3 CONNECTOR-BX 3/4 STR-2
SCREW
031231
4 CAPACITOR-START
189-227UF/33
033044-1
ITEM DESCRIPTION PART NO.
5 CAPACITOR-RUN 25UF/440V 037431
6 STRAP-CAPACITOR 7-11/32 037890
7 SCREW-10X3/8 SLOTTED HEX 015582
* HARNESS-WIRE-CAP/RELAY
BOX
069079-27
*NOT SHOWN
