Taylor C723 Service Manual

61
Model C723
Parts
160205

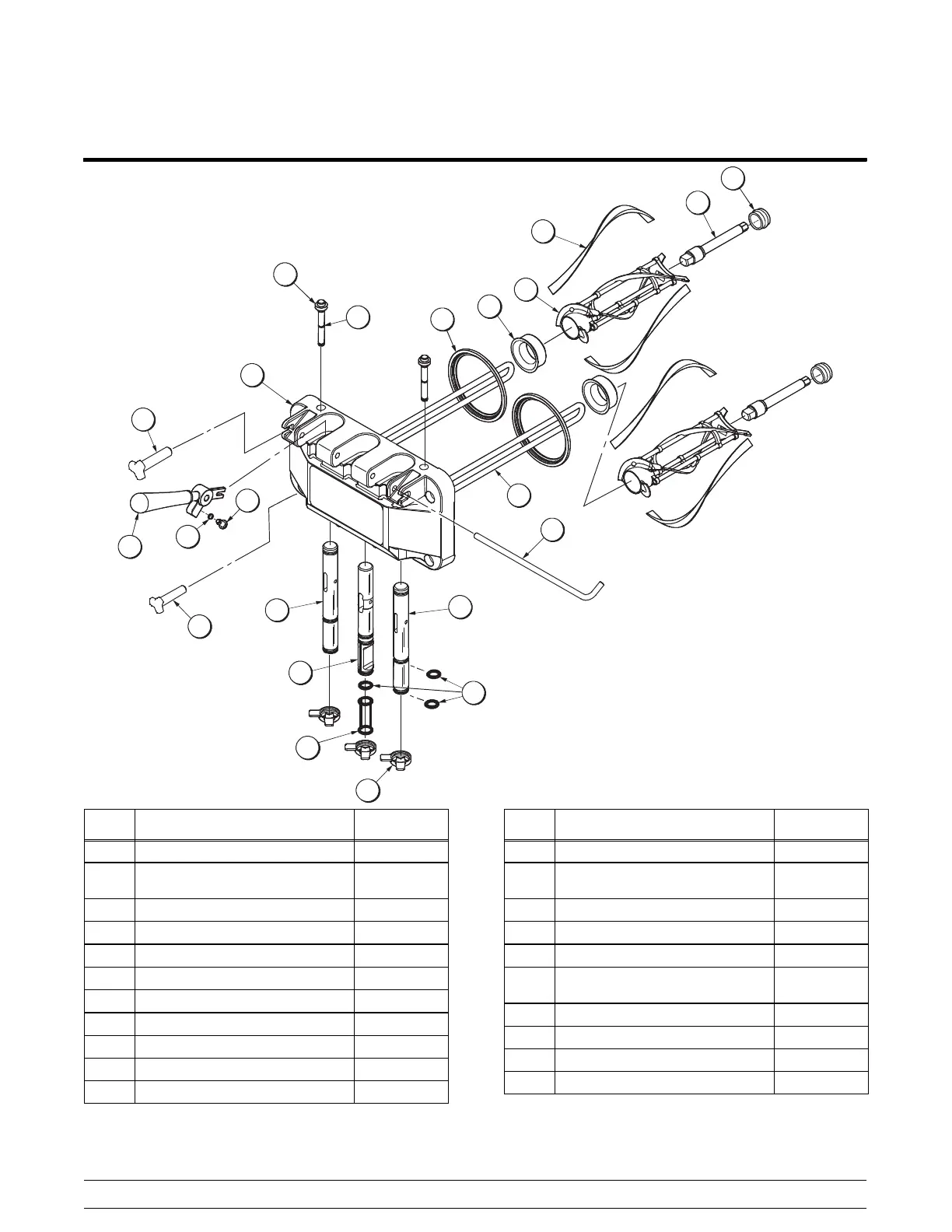

Door and Beater Assembly
16
5
13
1
3
10
20
9
12
4
6
7
8
17
15
18
19
2
10
14
11
20a
Figure 80
ITEM DESCRIPTION PART NO.
1 PLUG-PRIME TWIN 059936
2 O-RING-1/2OD X .070W
(50 TO BAG)
024278
3 GASKET-DOOR HT 4"-DOUBLE 048926
4 BEARING-FRONT 050216
5 BEATER A.-2.8QT-HELICORE X35466
6 BLADE-SCRAPER-PLASTIC 035480
7 SHAFT-BEATER 054194
8 SEAL-DRIVE SHAFT 032560
9 PIN-HANDLE-TWIN 059894
10 VALVE A.-DRAW X69615
11 O-RING-7/8 OD X .103W-SIL 083693
ITEM DESCRIPTION PART NO.
12 CAP-DESIGN 1.010"ID-6 POINT 014218
13 SEAL-DRAW VALVE-LARGE
H-RING
034698
14 VALVE A.-DRAW-CENTER X62218
15 NUT-STUD-BLACK 2 .563 LONG 058764
16 SCREW-ADJUSTMENT-5/16-24 056332
17 O-RING-1/4 OD X .070W 50
(25 TO BAG)
015872
18 HANDLE A.-DRAW X56421-1
19 NUT-STUD-BLACK 3 .250 LONG 058765
20 DOOR A.-*SH BAF*W/PRG X68889-SER
20a BAFFLE A.-SHORT 4 IN X50883

Taylor C723 Specifications

General

Type	Soft Serve Freezer
Mix Flow	Gravity
Number of Flavors	2 + Twist
Electrical	208-230/60/1
Freezing Cylinder Size	3.4 qt (3.2 L)
