Taylor C723 Service Manual

62
Parts
Model C723
140519

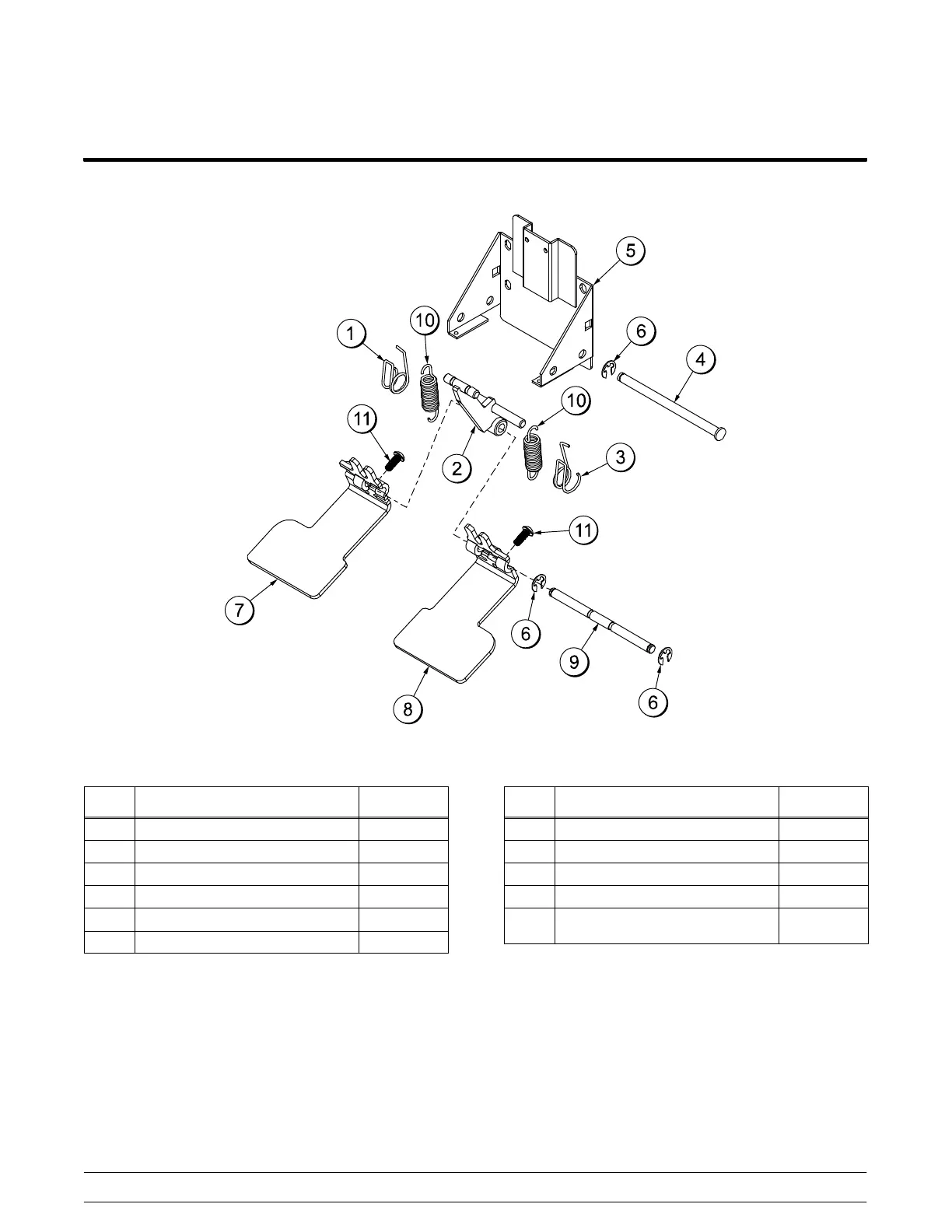

Actuator A.-Draw Switch - X69835
Figure 81
ITEM DESCRIPTION PART NO.
1 SPRING-RETURN-LEFT 038923
2 BRACKET A.-SPRING-RETURN X69481
3 SPRING-RETURN-RIGHT 038924
4 PIN-PIVOT-DRAW SWITCH 038484
5 BRACKET A.-SWITCH X69836
6 E-RING 1/4 BLACK PHOS 032190
ITEM DESCRIPTION PART NO.
7 ARM-DRAW SWITCH-LEFT 069166
8 ARM-DRAW SWITCH-RIGHT 069167
9 ROD-SPRING RETAINER 038254-SP
10 SPRING-EXTENSION.467X.062 069392
11 SCREW-ADJUSTMENT-DRAW
PADDLE
069374

Taylor C723 Specifications

General

Type	Soft Serve Freezer
Mix Flow	Gravity
Number of Flavors	2 + Twist
Electrical	208-230/60/1
Freezing Cylinder Size	3.4 qt (3.2 L)
