63
Model
C723
Parts
Switch A-Dual Lever - X69838

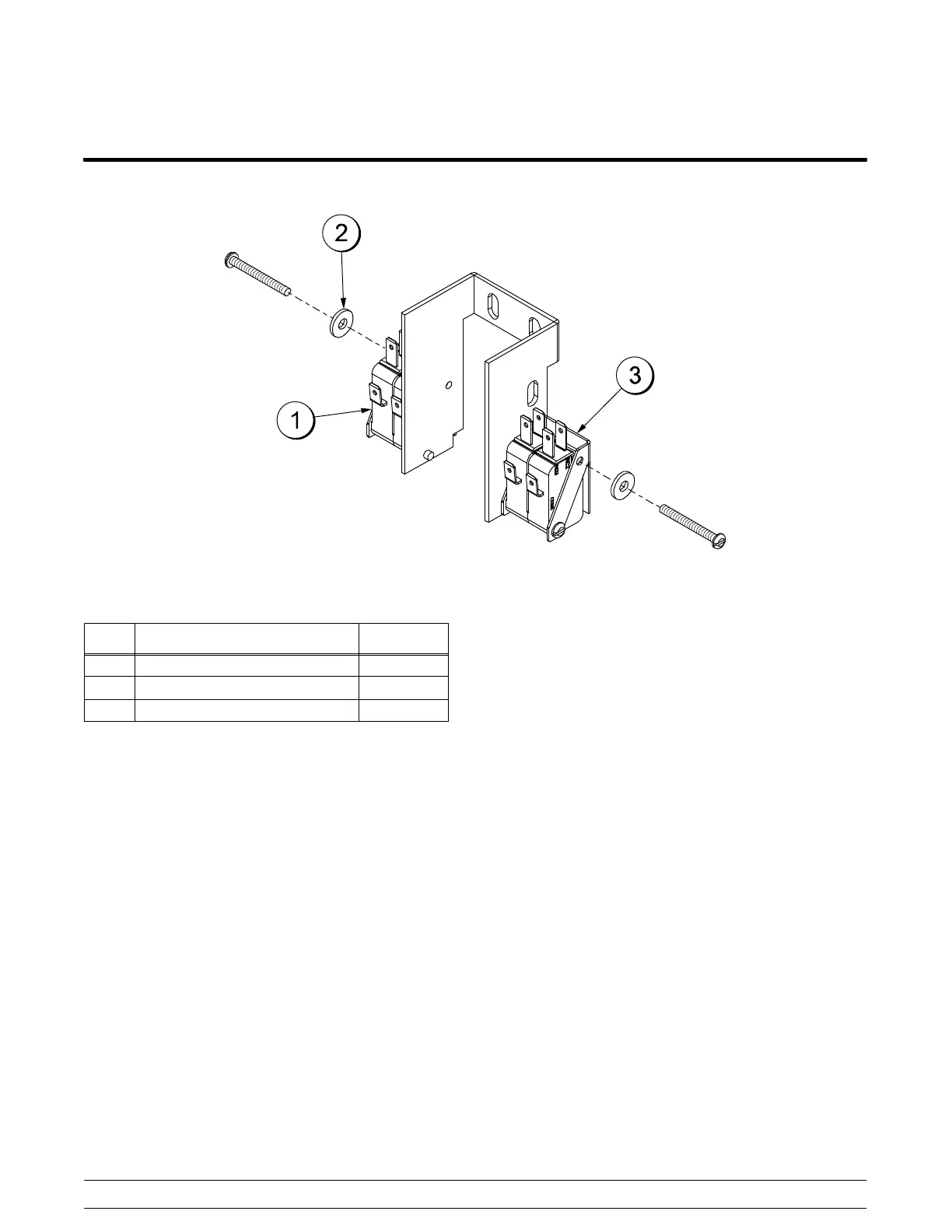

Figure 82
ITEM
DESCRIPTION
PART NO.
1
SWITCH-LEVER-SPDT 10A
028889
2
WASHER-#6 SAE FLAT 18-8 SS
023546
3
ACTUATOR-TANDEM LEAF
062408
66
68
Table of Contents
Table of Contents
3
Section 1: Introduction
5
Safety
6
Model C723 Specifications
8
Running Specifications
10
General Installation Instructions
11
Environmental Notices
14
Important to the Operator
15
Section 2: Controls, Systems and Operations
19
Universal Control Programming
20
Freezer Lockout
32
Timers
35
Setting Viscosity
36
Beater Motor & Belt Removal
37
Jumper Pin Chart - UVC4
38
C723 Control Overview
39
C723 UVC4 Update Instructions
40
Refrigeration Schematic
41
Refrigeration System Components
42
Section 3: Troubleshooting
43
General Troubleshooting Guide
44
Electrical Troubleshooting Guide
48
Electrical Troubleshooting Guide
49
Bacteria Troubleshooting
50
Section 4: Parts
53
Parts Warranty Explanation
54
Model C723 Exploded View
56
Other manuals for Taylor C723
Operator's Manual
56 pages
Operating Instructions
51 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Taylor C723 and is the answer not in the manual?
Ask a question
Taylor C723 Specifications
General
Type
Soft Serve Freezer
Mix Flow
Gravity
Number of Flavors
2 + Twist
Electrical
208-230/60/1
Freezing Cylinder Size
3.4 qt (3.2 L)
