64
Parts
Model C723
140519
Motor A.-Danfoss Condenser - X68882-27

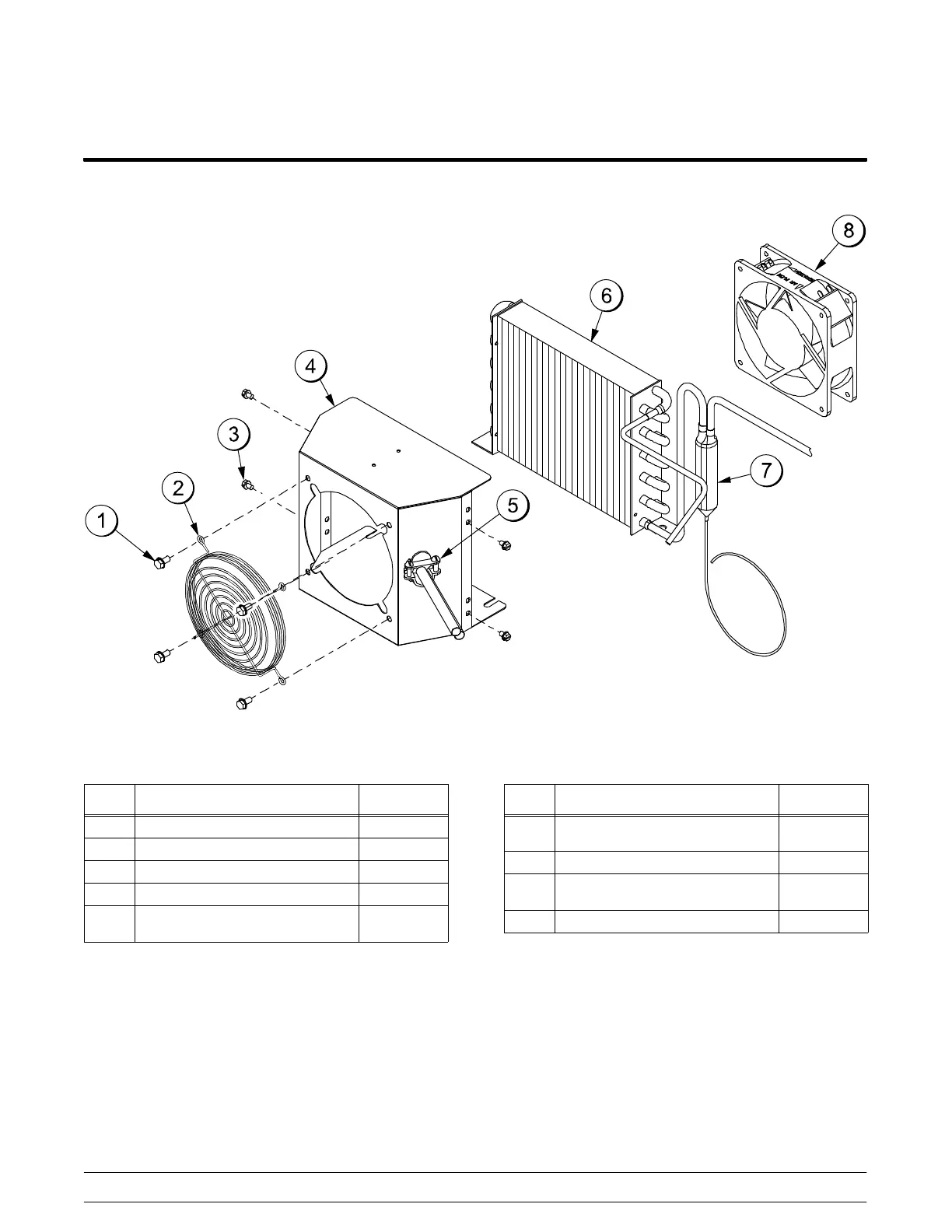

Figure 83
ITEM DESCRIPTION PART NO.
1 SCREW-10-32X3/8 UNSL HWH 039381
2 GUARD-FAN 028534-1
3 SCREW-8X1/4 SLTD HEX WASH 009894
4 SHROUD-DANFOSS 068883
5 CONNECTOR-BX 3/8 STR-2
SCREW
014569
ITEM DESCRIPTION PART NO.
6 CONDENSER-AC 7X6X1.25-
2 ROW
027155
7 DRYER-CAP. TUBE .026ID X 13' 047699
8 MOTOR-FAN 95.3 CFM 2700
RPM
062253-27
* HARNESS-WIRE-DANFOSS 081309-27
*NOT SHOWN
