65
Model C723
Parts

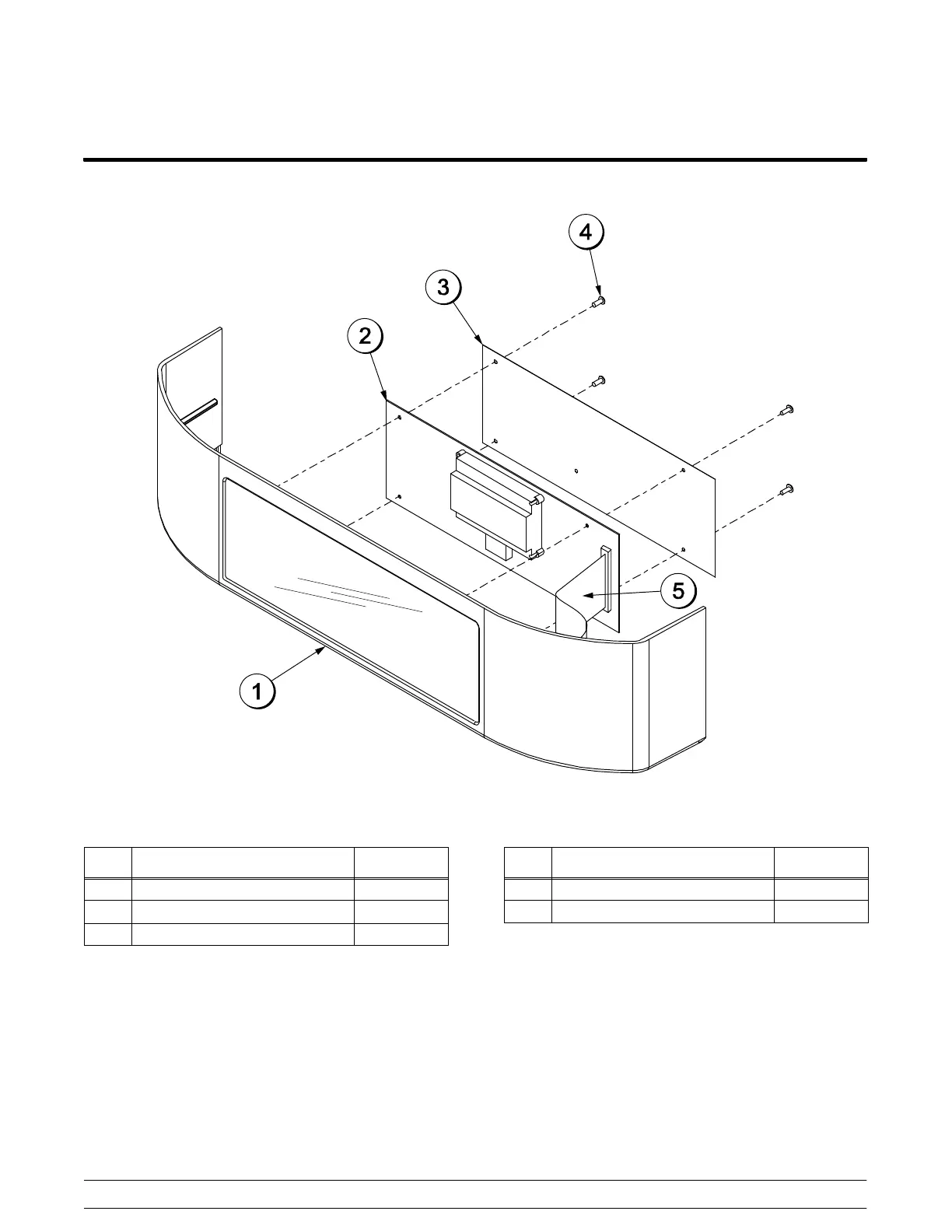

Plate A.-Dec C723 - X68829-SER
Figure 84
ITEM DESCRIPTION PART NO.
1 PLATE-DEC 068830
2 PCB A.-INTERFACE 063925-SER
3 INSULATOR-PCB-INTERFACE 057168
ITEM DESCRIPTION PART NO.
4 SCREW-6-32X3/8 SLTD 002201
5 CABLE-RIBBON-14C-3"L-SIL/SIL 056864
