67
Model
C723
Parts
Brushes

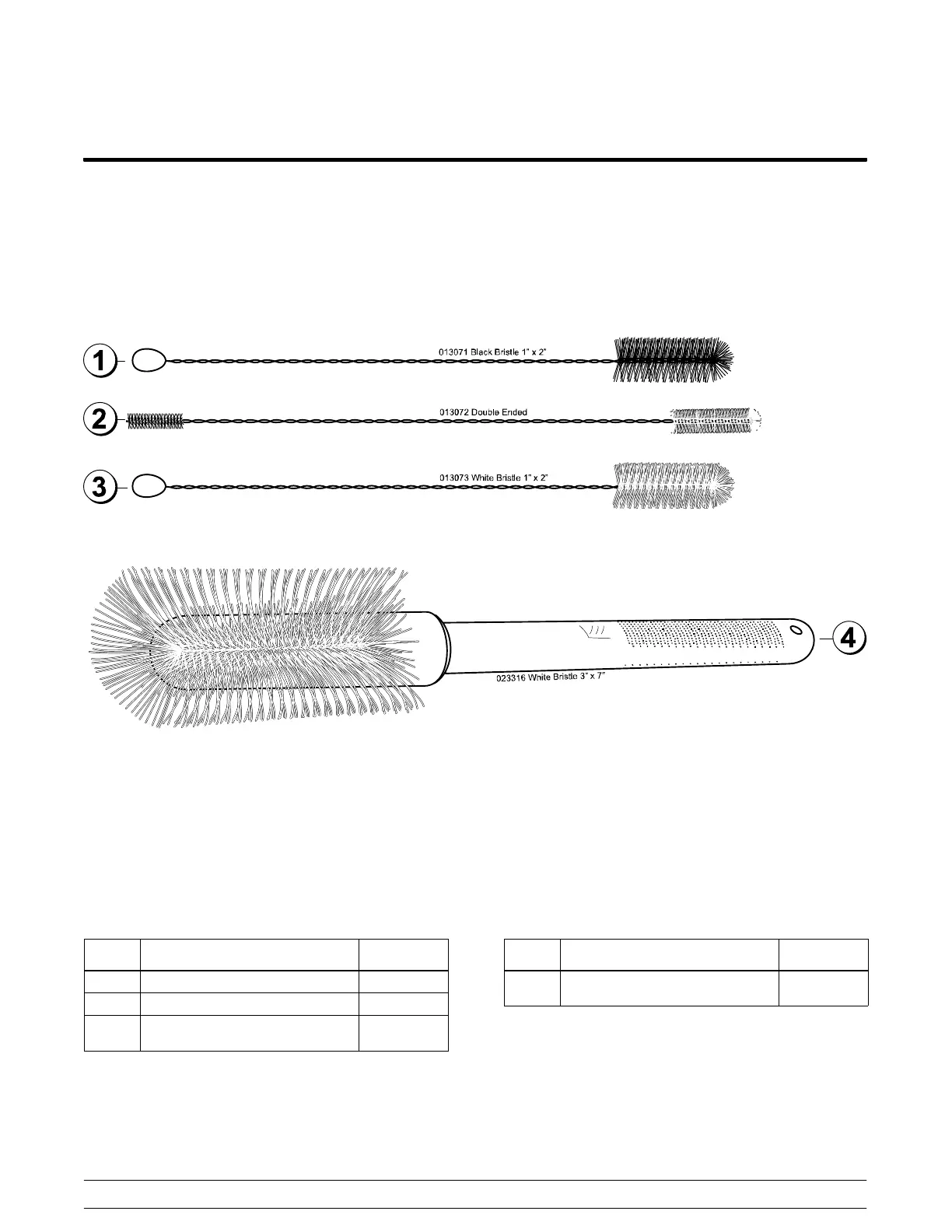

Figure 86
ITEM
DESCRIPTION
PART NO.
1
BLACK BRISTLE BRUSH
013071
2
DOUBLE END BRUSH
013072
3
WHITE BRISTLE BRUSH
(1” x 2”)
013073
ITEM
DESCRIPTION
PART NO.
4
WHITE BRISTLE BRUSH
(3” x 7”)
023316
70
72
