33
Models QS12/QS24
Parts

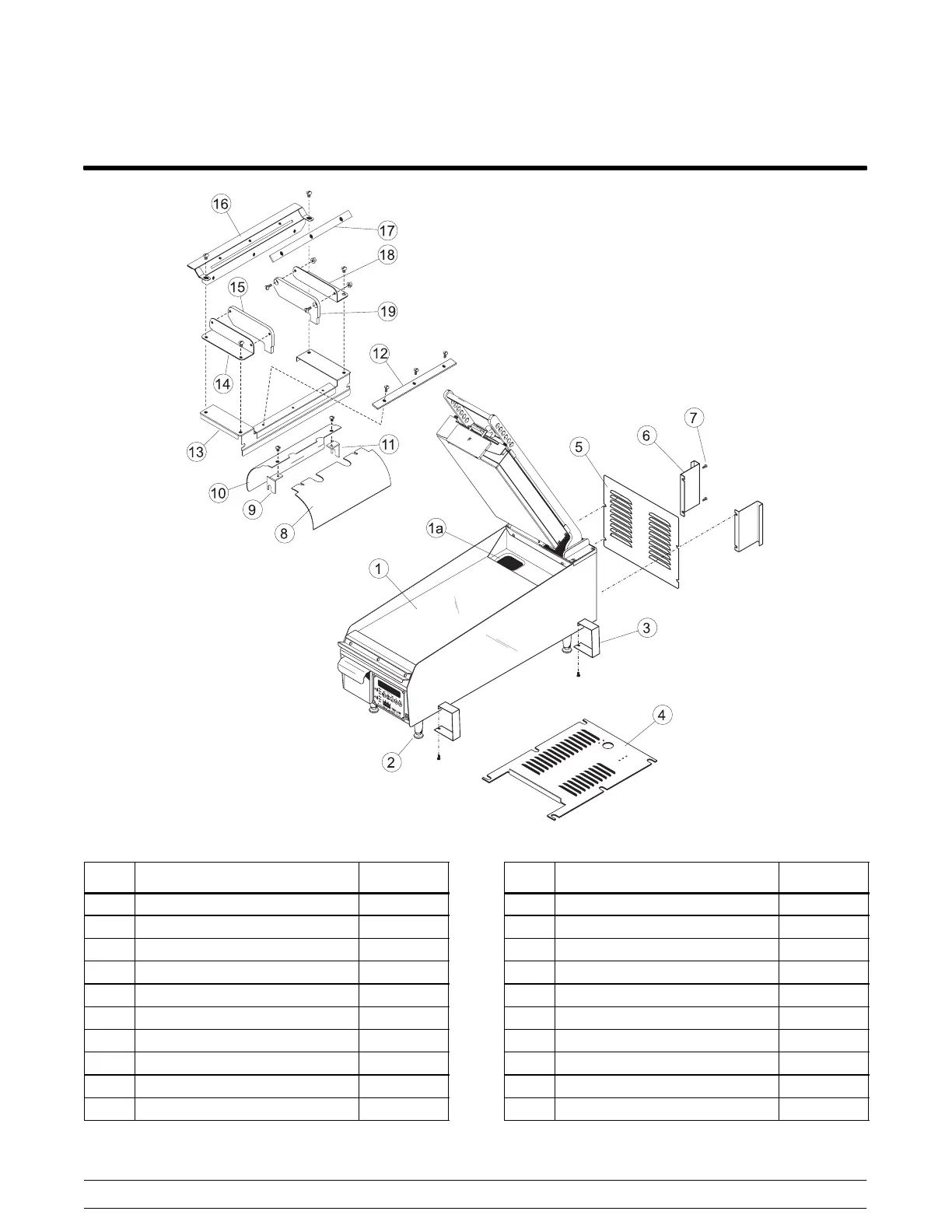

QS12 Service Parts Exploded View
ITEM DESCRIPTION PART NO.
1 PLATE A. -LOWER X79254
1a CHUTE A.-GREASE X78419
2 LEG-4”-3/8 -16 STUD 036397
3 STANDOFF -FRONT 079289
4 COVER A. -BOTTOM X79527
5 PANEL -REAR 079280
6 STANDOFF -REAR 079288
7 SCREW-10-32X3/8 TRUSS HD 024298
8 SHIELD-GREASE REAR 079434
9 BRACKET A. -SHIELD RIGHT X79431
ITEM DESCRIPTION PART NO.
10 SHIELD-GREASE FRONT 079433
11 BRACKET A.-SHIELD LEFT X79429
12 WIPER-REAR 079440
13 COVER A.-REAR X79444
14 BRACKET-MTG SIDE RIGHT 079436
15 WIPER-SIDE RIGHT 079438
16 GUARD A.-FRONT X79426-SP
17 WIPER-FRONT 079439
18 BRACKET-MTG SIDE LEFT 079435
19 WIPER-SIDE LEFT 079437
To Next Page
