Taylor QS Series Service Manual

35
Models QS12/QS24
Parts
051128

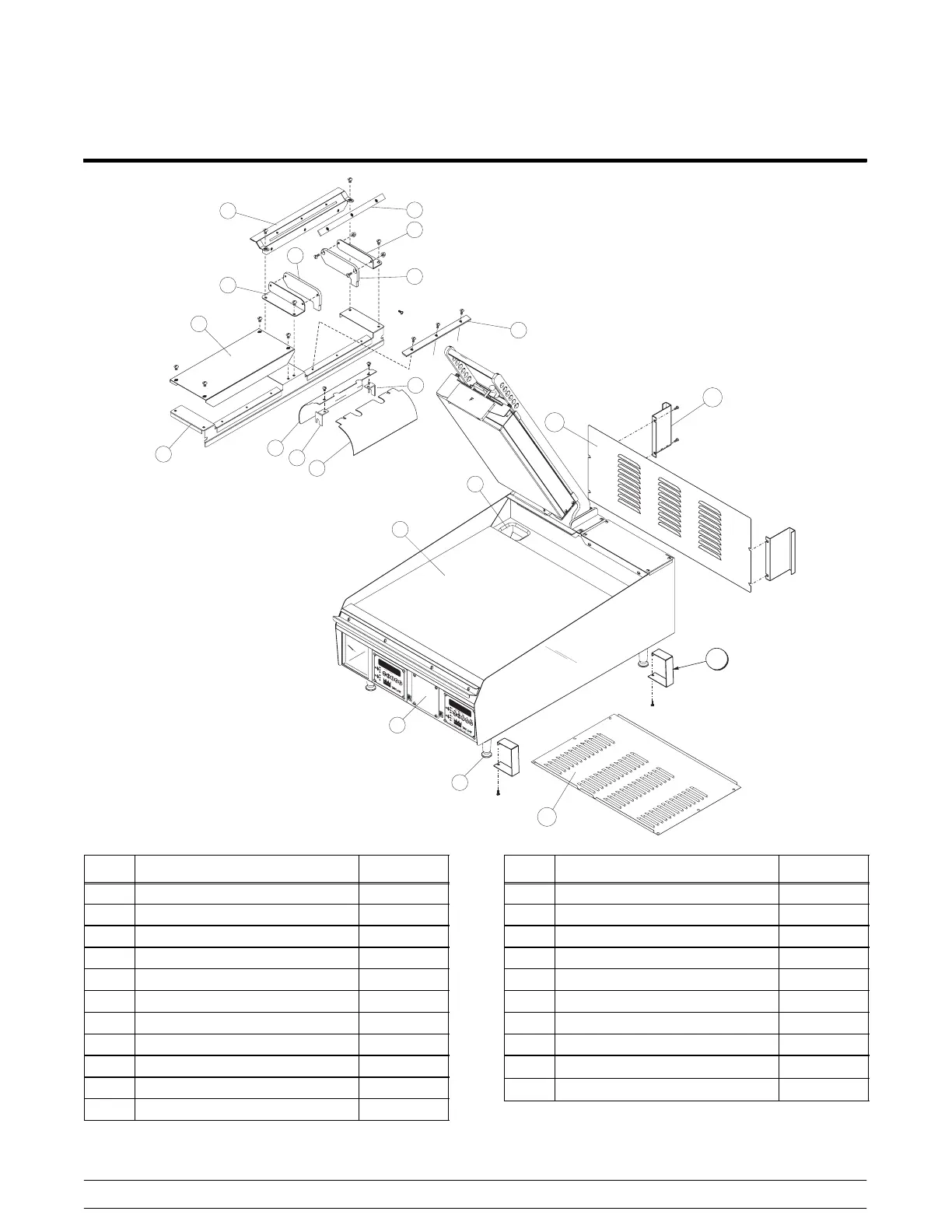

QS24 Service Parts Exploded View
2
3
1
1a
4
5
20
7
10
11
16
18
9
8
6
12
17
13
1514
O
N
O
F
F
O
N
O
F
F
M
E
N
U
U
F
T
IM
E
T
E
M
P
U
P
D
O
W
N
E
X
IT
U
M
U
R
LR
L
M
LF
R
MANUF
A
CTURED
B
YTHETAYLOR
C
OM
P
ANY
ROC
KT
ON
,
I
LLINO
IS
U
.
S.
A.
19
ITEM DESCRIPTION PART NO.
1 PLATE A. -LOWER X78748
1a CHUTE A.-GREASE X78419
2 COVER-ACCESS LINE VOLT. 078511
3 LEG-4”-3/8 -16 STUD 036397
4 COVER-BOTTOM 078535
5 PANEL -REAR 079044
6 COVER-LINKAGE 079441
7 SHIELD-GREASE REAR 079434
8 BRACKET A. -SHIELD RIGHT X79431
9 SHIELD-GREASE FRONT 079433
10 COVER A.-REAR X79423
ITEM DESCRIPTION PART NO.
11 BRACKET A.-SHIELD LEFT X79429
12 BRACKET-MTG SIDE RIGHT 079436
13 WIPER-SIDE RIGHT 079438
14 GUARD A.-FRONT X79426-SP
15 WIPER-FRONT 079439
16 BRACKET-MTG SIDE LEFT 079435
17 WIPER-SIDE LEFT 079437
18 WIPER-REAR 079440
19 STANDOFF-FRONT 079289
20 STANDOFF-REAR 079288
