To the In staller
Models QS11 & QS23
Leveling Procedures

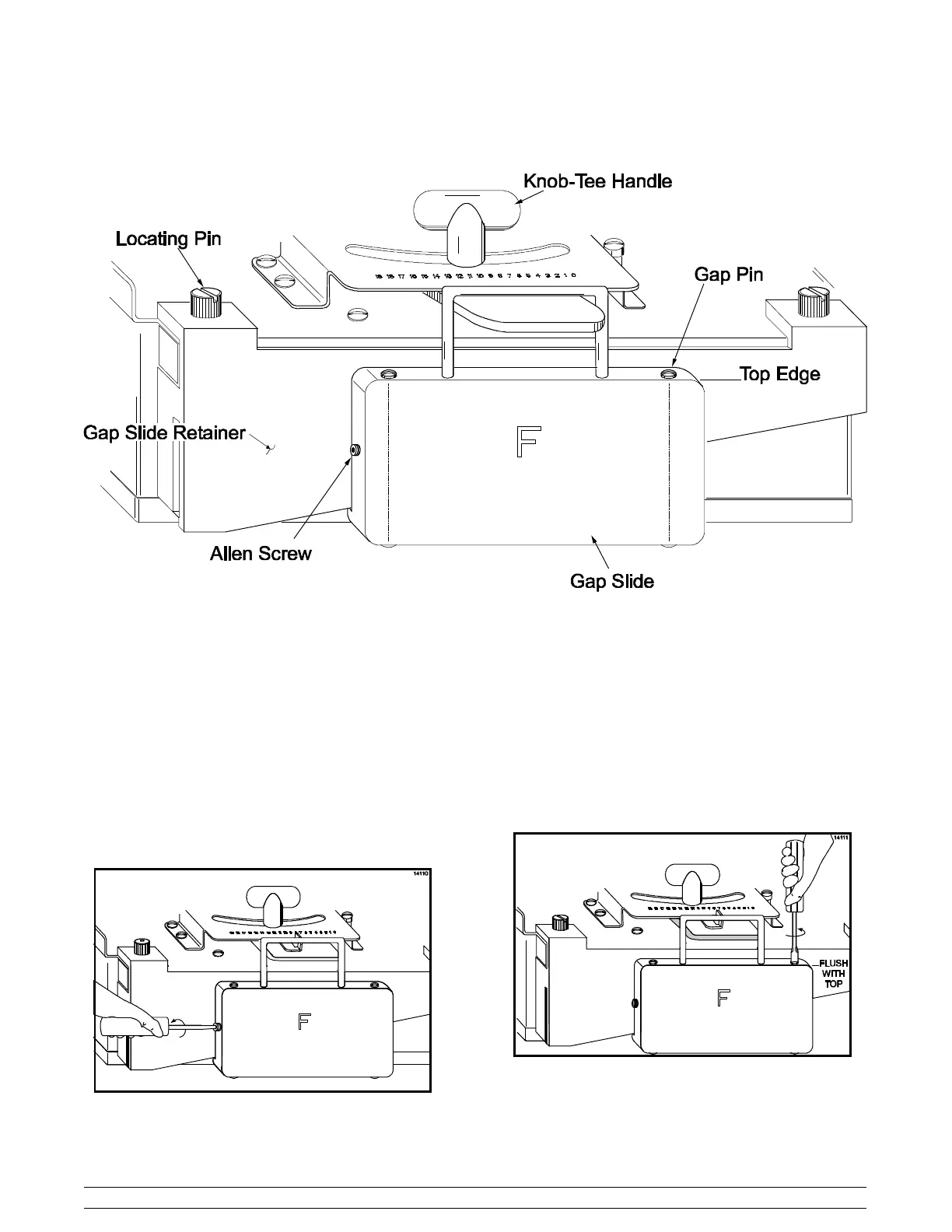

Figure 2
Step 1
The leveling adjustment needs to be performed when
the grill is properly gapped and at operating
temperature. Level the grill without the release
material sheets in place.
Step 2
To allow adjustment of the gap pins, loosen the two
1/8” allen screws located on the sides of the front and
rear gap slides.
Figure 3
Step 3
Raise both gap pins on the front gap slide until the
bottom of the screwdriver slot is flush with the top edge
of the gap slide. Repeat this step for the rear gap slide.
Slide the gap slide to the right.
Figure 4
To Next Page
