Taylor QS12 - QS12 Operator Parts Exploded View

34
Parts
Models QS12/QS24

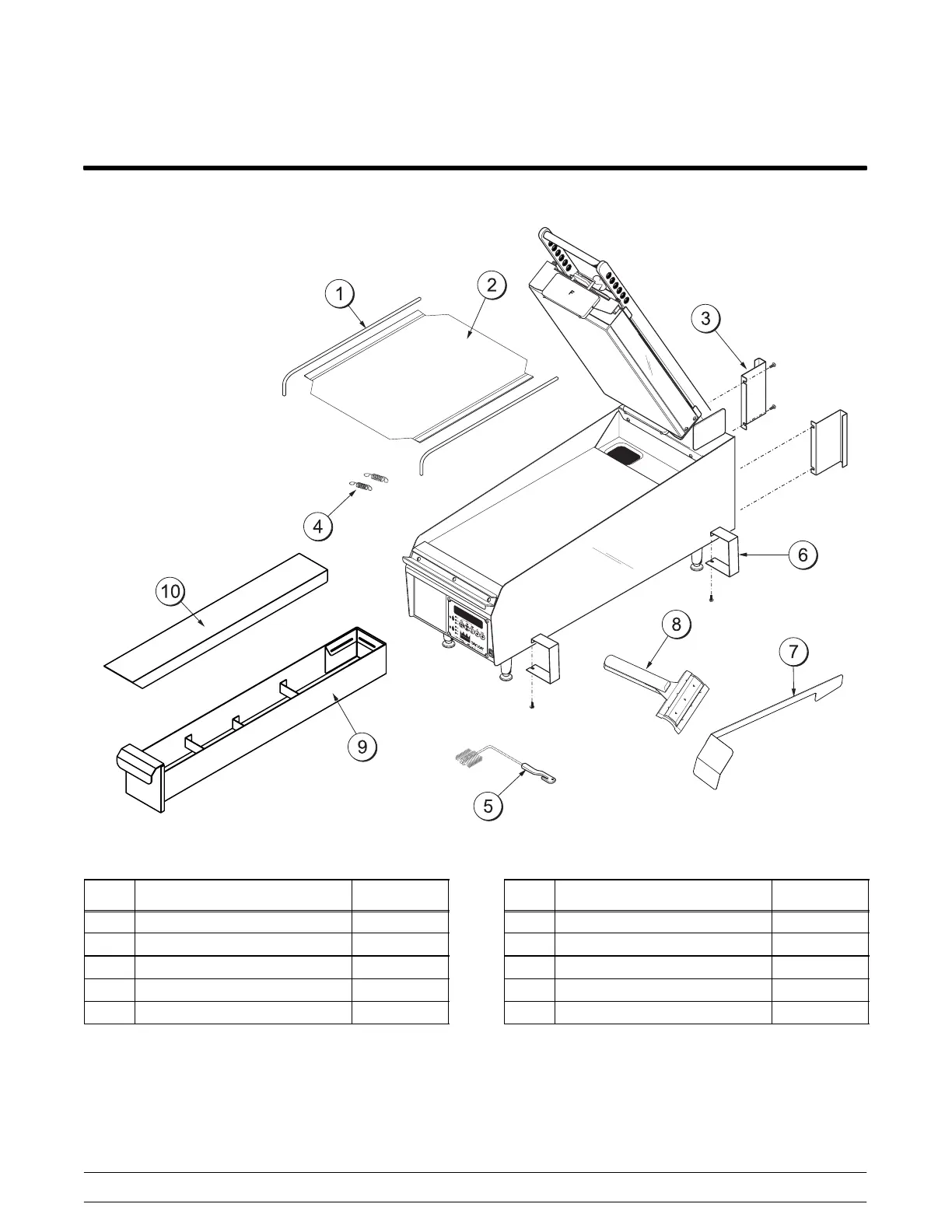

QS12 Operator Parts Exploded View
ITEM DESCRIPTION PART NO.
1 BAR-RELEASE SHEET 079930
2 SHEET -SEAMED RELEASE 078804
3 STANDOFF -REAR 079288
4 SPRING-.438 OD X .046 X 1.75 079704
5 BRUSH (GAP CLEANER) 074166
ITEM DESCRIPTION PART NO.
6 STANDOFF -FRONT 079289
7 SCRAPER-TROUGH 079726
8 SCRAPER-TEFLON WIPER 075887
9 TRAY A. --GREASE X79940 -SER
10 COVER--TOP 079969
