Taylor QS12 - Front of Lower Grill Assembly

39
Models QS12/QS24
Parts

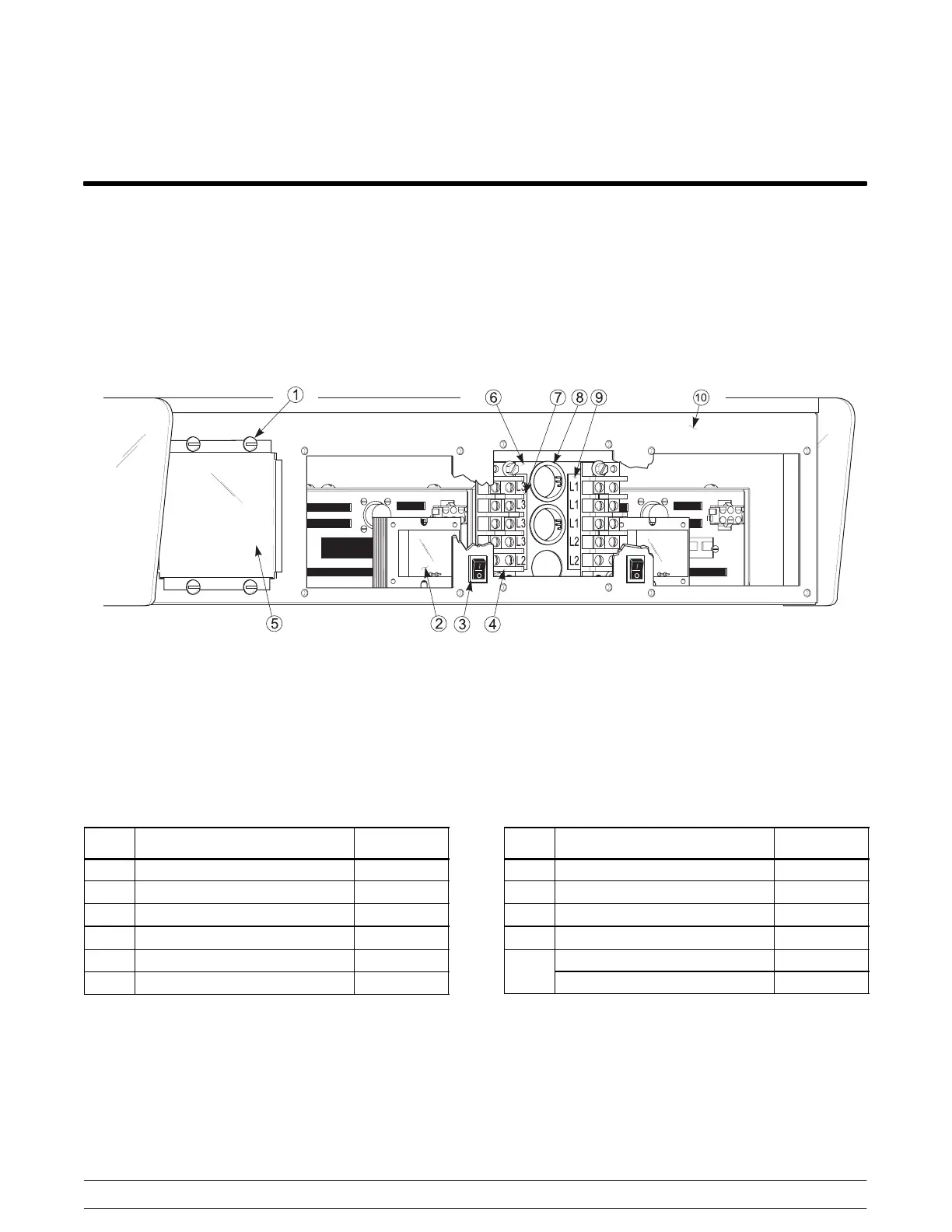

Front of Lower Grill Assembly
ITEM DESCRIPTION PART NO.
1 Screw-8-32 x 1/4 NP Slot Pan 078525
2 Transformer-Cont.-40VA 120/200 045754
3 Switch-Rocker SPST Off-On 078418
4 Block-Terminal 5P Screw 75A 079833
5 Partition A.-Grease Tray X79944
*5a Gasket--Box A. (Partition) 074154
ITEM DESCRIPTION PART NO.
6 Plate-Terminal Block 078754
7 Decal-Terminal Block (Left) 079046-23L
8 Bushing-Snap 1-5/8 ID x 2 OD 043637
9 Decal-Terminal Block (Right) 079046-23R
1
0
Panel A.-Control (QS24) X78405
10
Panel A.-Control (QS12) X79265
*Not Shown
