16
Controls and Systems
Models QS12/QS24
Leveling Procedures

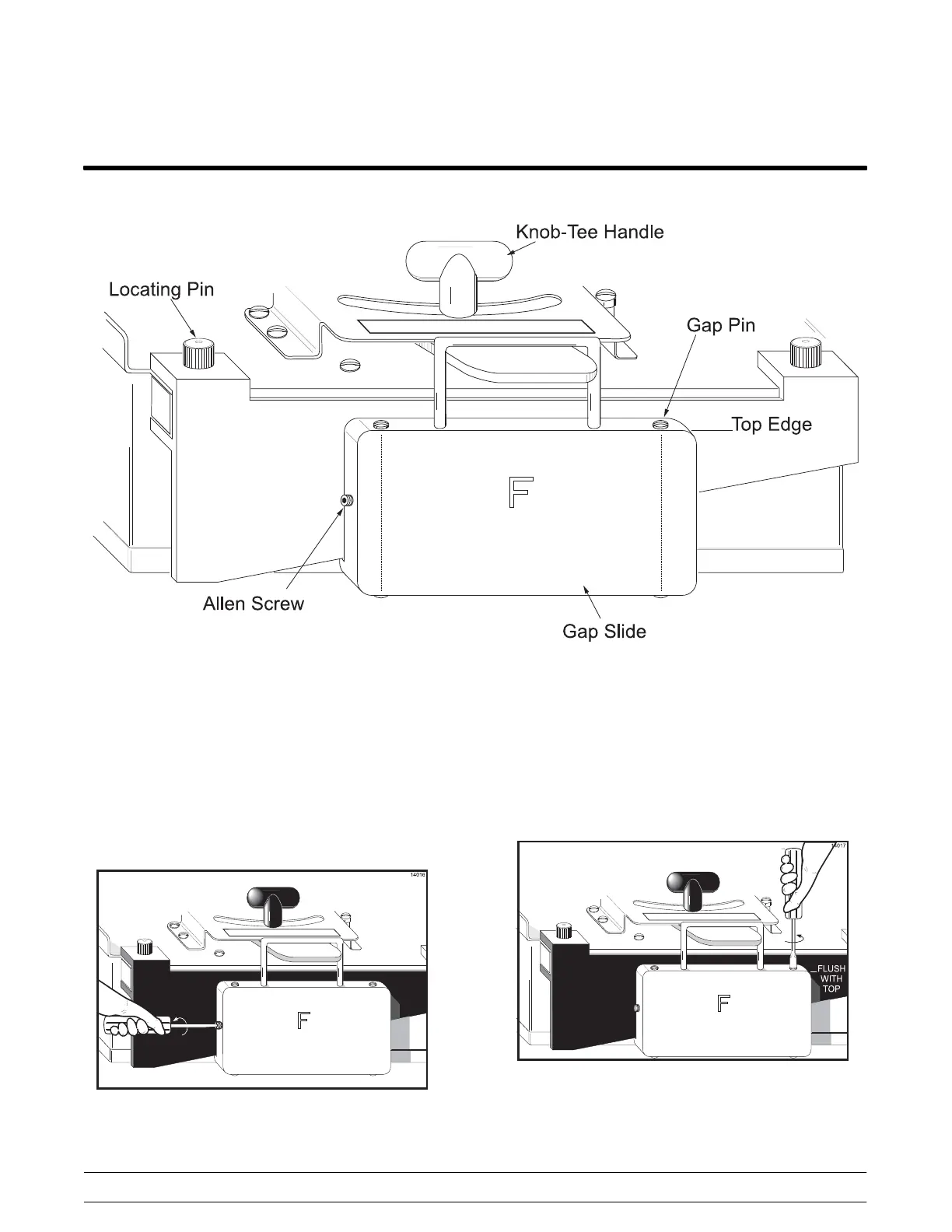

Figure 3
Step 1
The leveling adjustment needs to be performed while
the grill is at operating temperature. Remove the cook
surface shroud and release sheet.
Step 2
To allow adjustment of the gap pins, loosen the two set
screws located on the side of the front and rear gap
slide.
Figure 4
Step 3
Raise or lower both gap pins on the front gap slide until
they are flush with the top edge of the gap slide.
Repeat this step for the rear gap slide. Slide the gap
slide to the right.
Figure 5
To Next Page
