39
DOWN to convert Y or N. N means do not need to
recover default setting; Y means entering into password
setting. Otherwise, display will exit. The default state is
N.

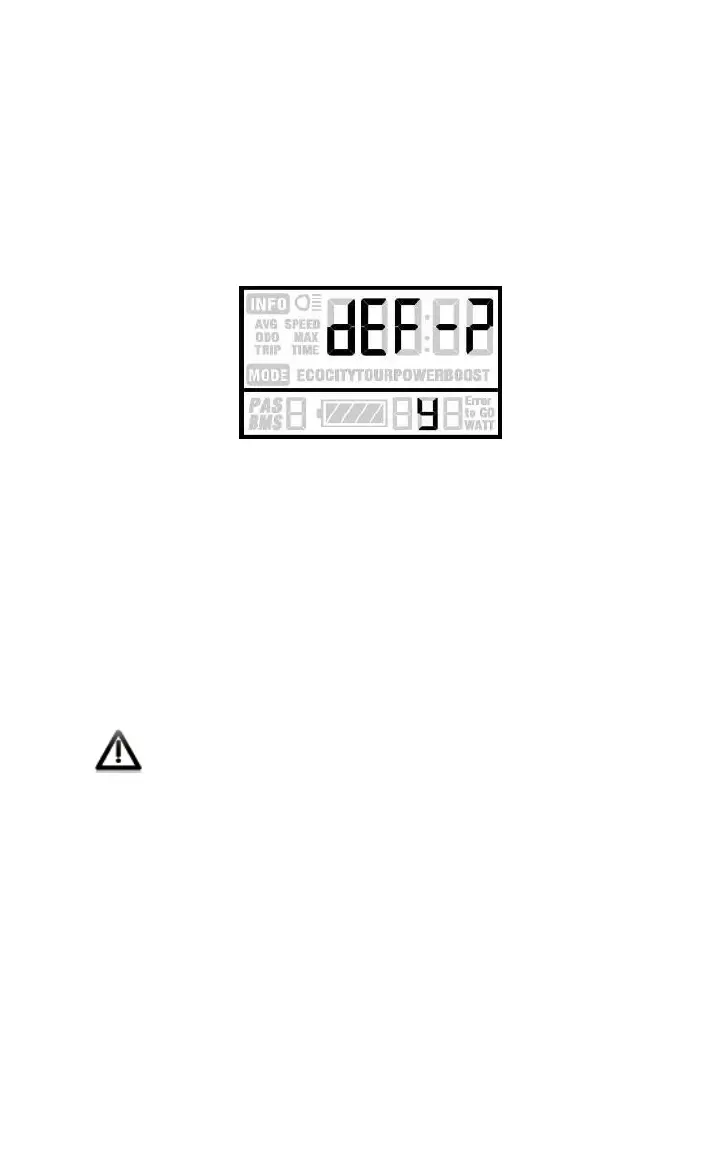

Restore default setting interface
The password to recover default settings is 0368.
Short press MODE to select the digit, UP/DOWN can
increase or reduce the number. After inputting 4 digits,
short press MODE to confirm. The interface is as below.
When the display shows DEF:00 it means recovering
default state completed, then exiting.
In the recovery default, battery power, ODO and
trip cannot be recovered, but starting up
password can be recovered.
