TBA KM5S-LCD - Connection Layout

43

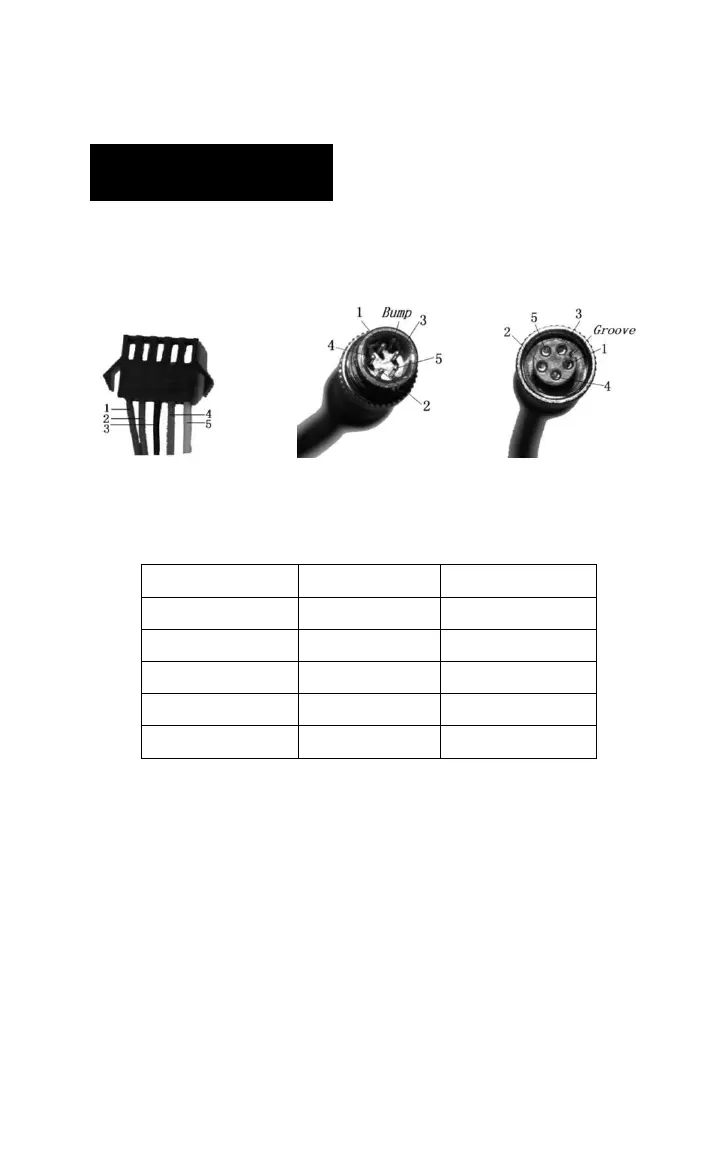

Connection layout
Connector line sequence
Display-side Connector Male adapter Female adapter
Line sequence table
Line sequence
Color
Function
1
Red（VCC）
+
2
Blue(K)
Lock
3
Black(GND)
-
4
Green(RX)
RX
5
Yellow(TX)
TX
Some wires use the water-proof connector, in such
cases users are not able to see the inside colour.
