TBB NEMO Series User Manual

NEMO series battery to battery Charger
3

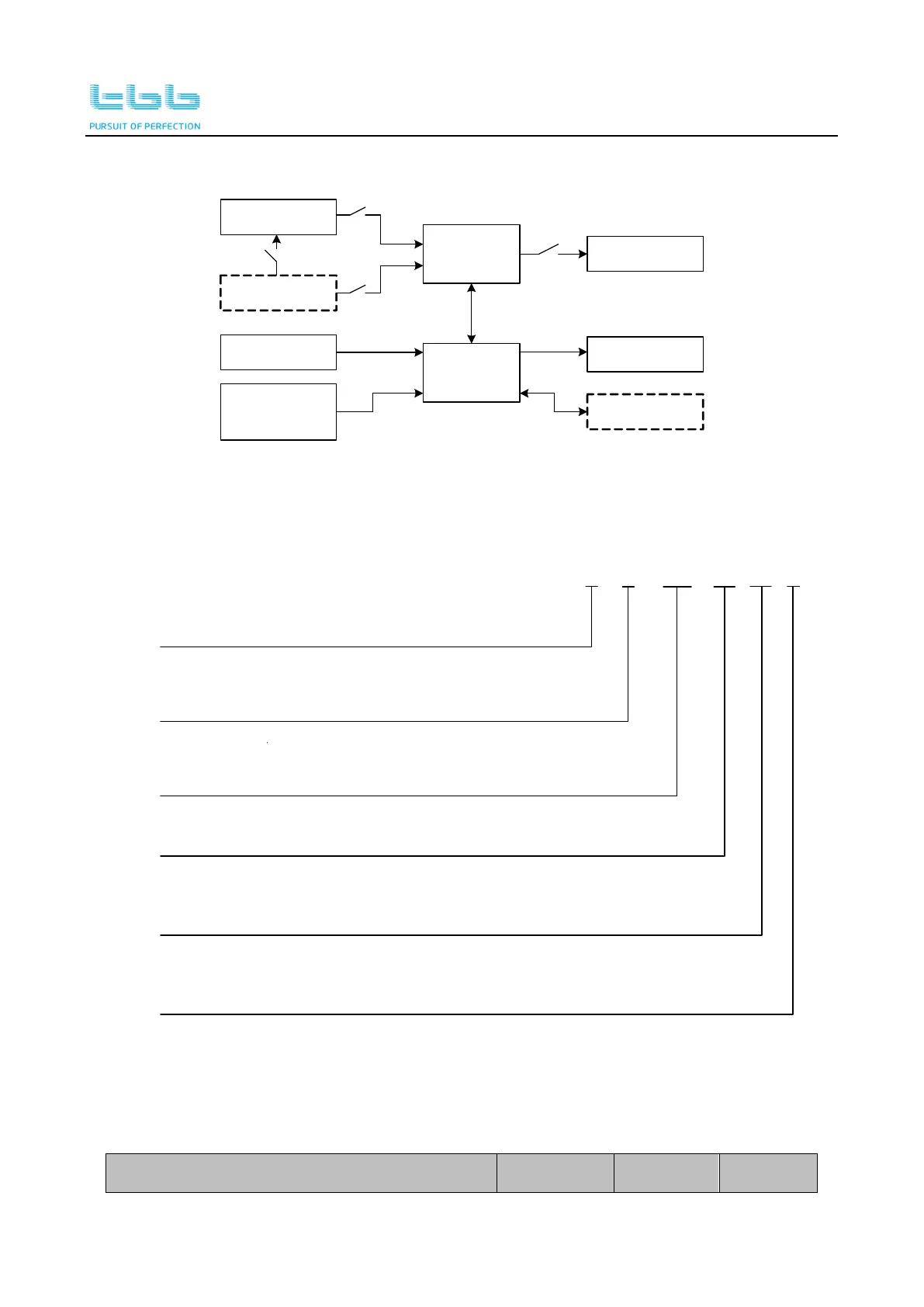

2.2 Principle Diagram
Alternator
starter battery
PV panel
IGN
Temperature
and voltage
compensated
DC/DC
MCU
Auxiliary
battery
LED
RS485
Figure 2-1 Functional block diagram of the charger
2.3 Model Information
Example: I D DX 12 30 x
Communication function
MPPT
Device family
Output rated voltage
Output rated current
Vehicle output voltage(ALT)
I:enable
D:with MPPT
Default:without MPPT
Default:disable
DX:DCDC converter
12:output rated voltage is 12V.
24:output rated voltage is 24V.
15:output rated current is 15A.
30:output rated current is 30A.
L:vehicle output voltage is 12V.
Default:same with output.
Figure 2-2 Ordering information scheme
Table 2-1 Model series
Model
Alternator PV
RS485

TBB NEMO Series Specifications

General

Brand	TBB
Model	NEMO Series
Category	Battery Charger
Language	English
