NEMO series battery to battery Charger

3. Structure

3.1 Terminal and panel definition

There are two different cable configurations available as per figure 3-1 and figure 3-2 for

DX and DDX models. They have no difference in function.IDX / IDDX models are for OEM

and have more adjustable settings via PC software (ask your dealer for more information

and refer to Figure 5-3 on page 12). The panel and terminal definition are as follow.

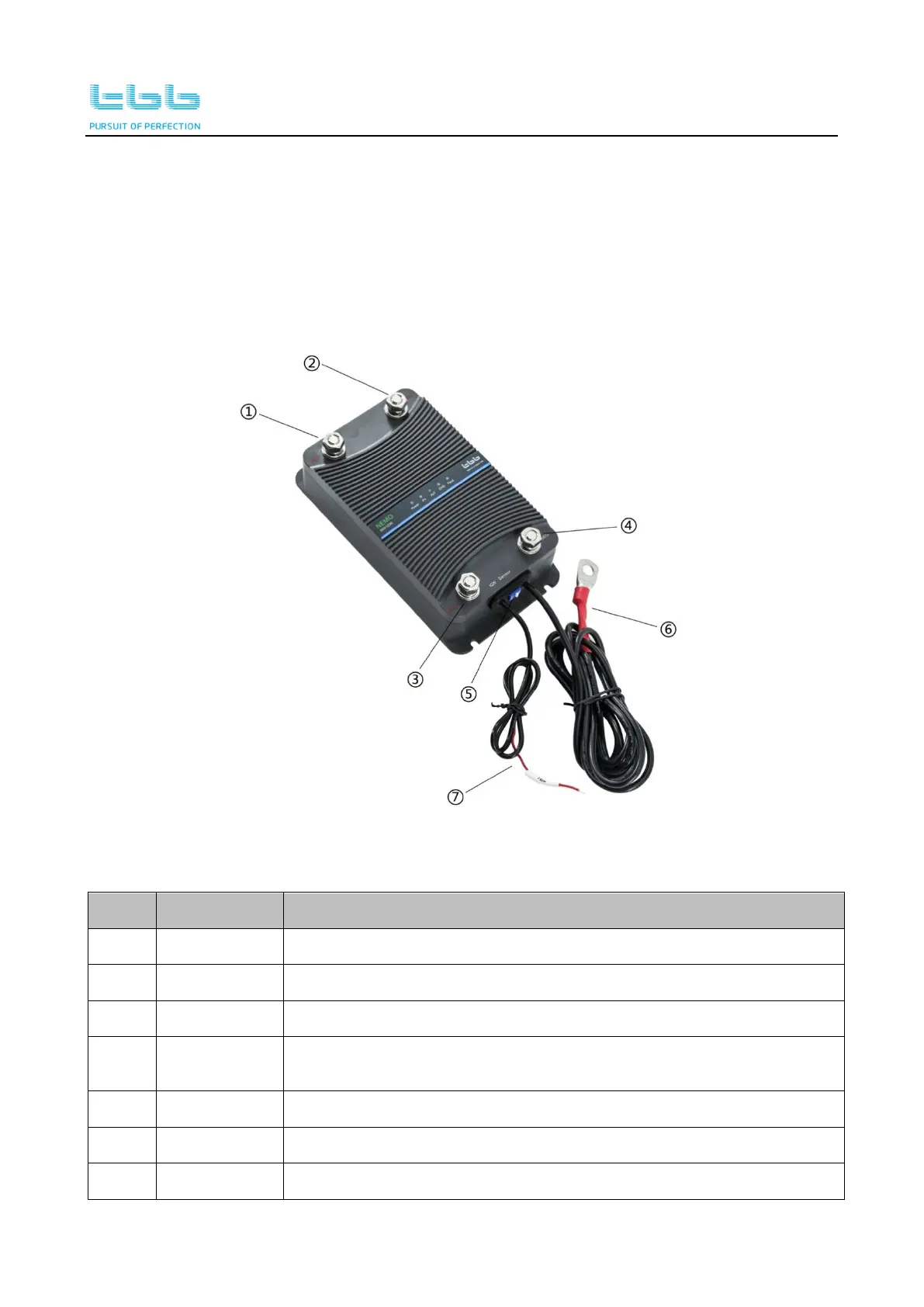

Figure 3-1 Charger model and cable for DX/DDX model

Table 3-1 Connectors or Terminals Description

NO. Definition Description

1 ALT+ Alternator IN + , Starter Battery +

2 PV+ PV IN+ (only available for DDX and IDDX)

3 OUT+ Aux battery+

4 NEG-

Common Negative for PV-, Alternator/Starter battery-, Aux

battery-

5 Dip switch Battery type setting

6 Sensor Temperature and voltage sensor

7 IGN Ignition feedback wire
