NEMO series battery to battery Charger

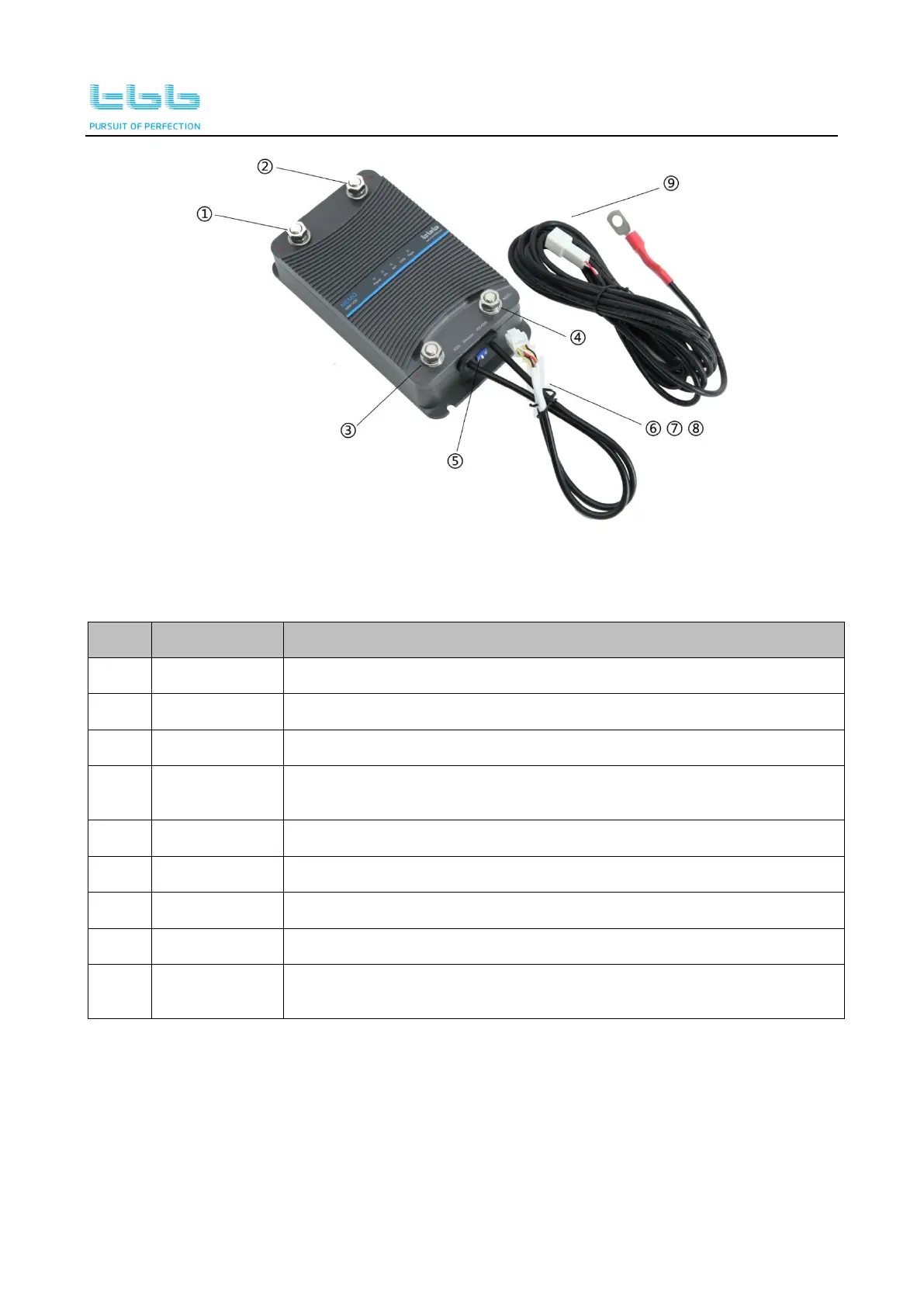

Figure 3-2 Charger model and extension cable

Table 3-2 Connectors or Terminals Description

NO. Definition Description

1 ALT+ Alternator IN +, Starter Battery +

2 PV+ PV IN+ (only available for DDX and IDDX)

3 OUT+ Aux battery+

4 NEG-

Common Negative for PV-, Alternator/Starter battery-, Aux

battery-

5 Dip switch Battery type setting

6 IGN Ignition feedback wire

7 Sensor Temperature and voltage sensor

8 COM Communication – RS485(only for IDX and IDDX)

Extension

cable

Temperature/Voltage, Ignition sensor and RS485 cable
