TC Electronic A/S
M5000
Service manual
page
11

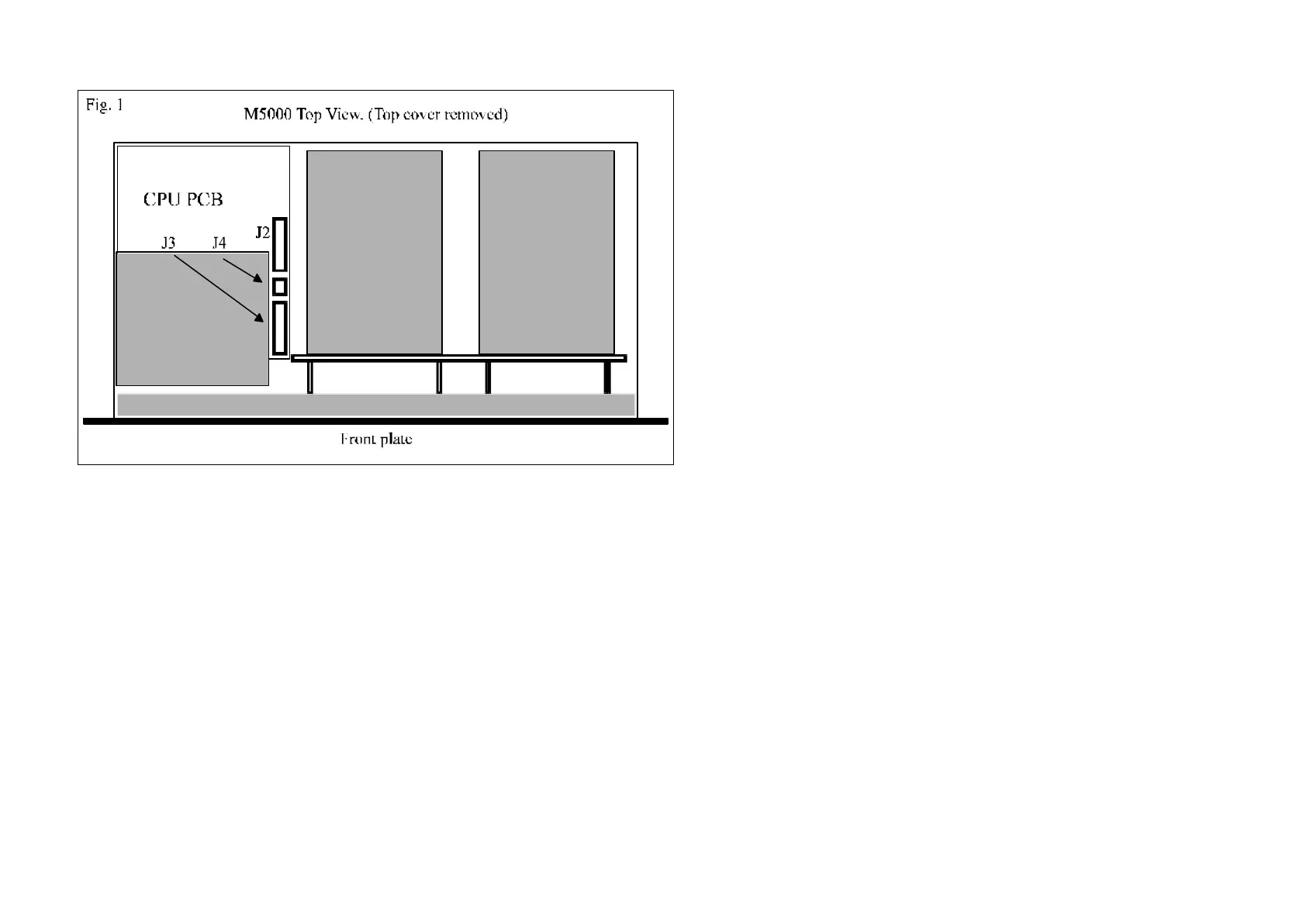

Remove the CPU PCB by unscrewing 2 screws on the solder side of the PCB and by unscrewing the 2 jack nuts. See fig. 2.
