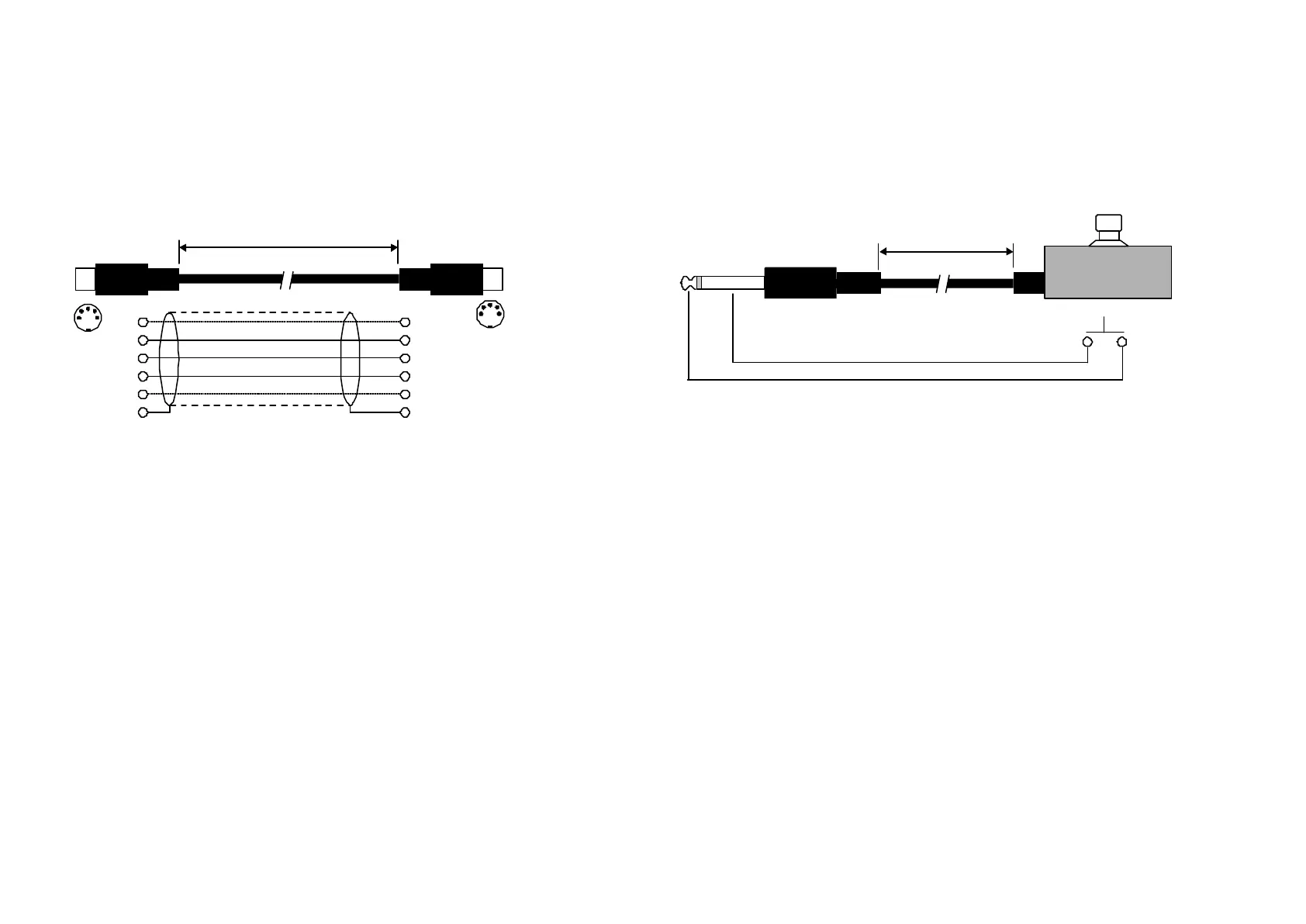

Cable specifications:
DIN CONNECTOR
JACK PLUG
PEDAL SWITCH
or similar
MIDI CABLE
PEDAL CABLE
DIN CONNECTOR
Note: Pin 1 and 3 at the Finalizer are reserved for optional RS485 interface
Therefore, use only 3-wires if the Finalizer is connected to other equipment that use these pins
max. 10m
max. 100m
5 POLE - MALE
45 degrees
MONO - MALE
Ø 6.35mm, 1/4“
5 POLE - MALE
45 degrees
SHIELDED CABLE ( 3 or 5 wires + screen )
2 wires
1 1
see note
see note
4 4
2
shield/ground
2
5 Tip
Switch must be
momentary type
5
3
C C
3
