TC-Helicon GO XLR User Manual

15 GO XLR User Manual

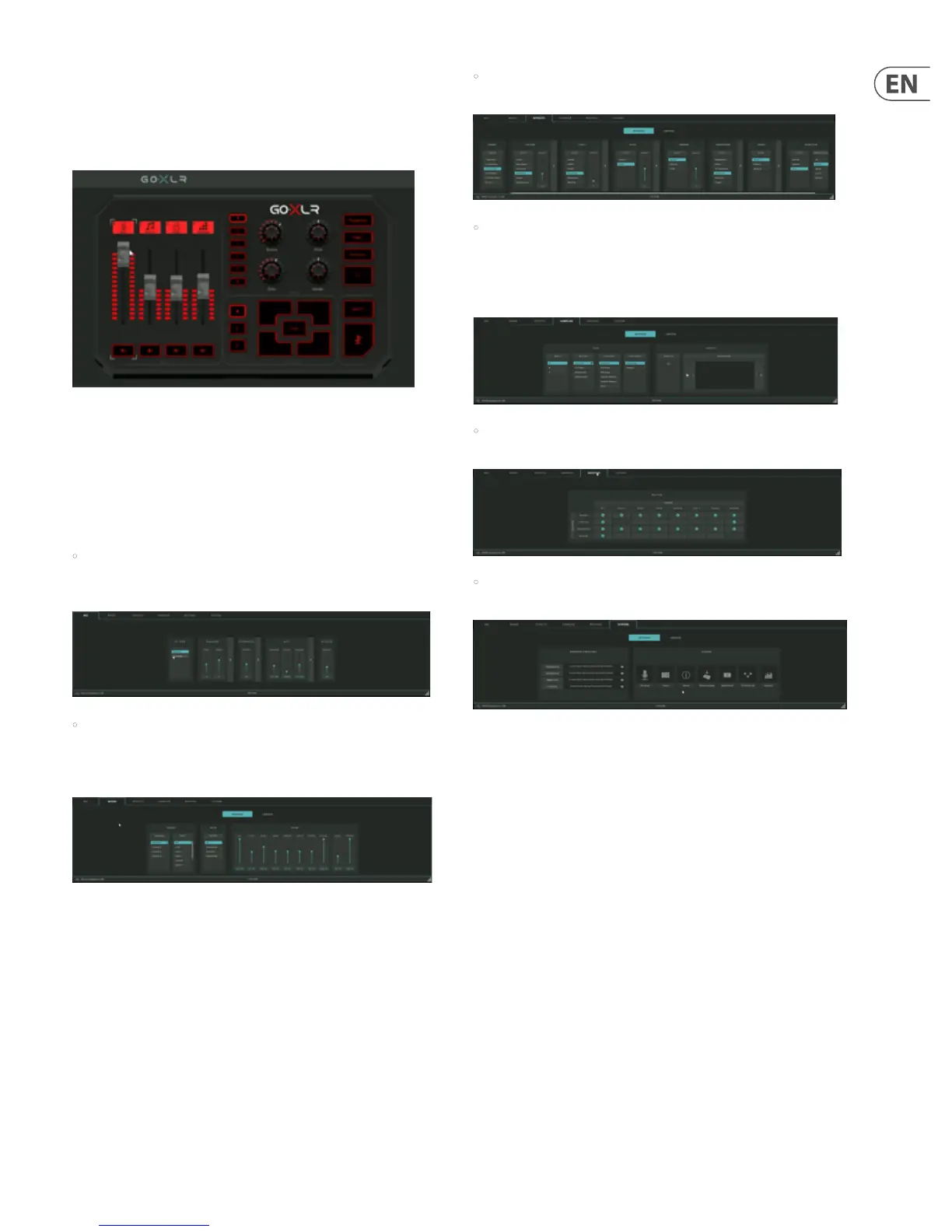

5.3 Live View
The Live View is the GO XLR app’s onscreen representation of the GO XLR panel.
This digital version of the mixer panel changes to reect any control changes you
may make on the hardware, such as moving a slider, turning a knob or
pressing a button.
Live View in the GO XLR app
By clicking on individual sliders or other controls in Live View, you can go in and
change settings and processing for that control in the Control Tabs section.
5.4 Control Tabs
The Control Tabs live in the lower half of the GO XLR app screen and contain
these sections:
• Mic—Select settings to suit your mic, such Dynamic or Condenser (which
activates Phantom Power to run the mic), as well as EQ, compression, gating
and a de-esser.
• Mixer—View settings for the Mixer section, including fader assignments,
muting options and mix levels for all active devices, not just devices assigned
to the hardware faders. In the Lighting sub-section, you can also customize
the various LED colors for related controls on the hardware panel.
• Eects—Shows eects and settings assigned to the knobs and buttons in
the Eects section, as well as color customization for these controls.
• Sampler—Shows settings and sample assignments for each button in the
Sampler section, as well as controls for color customization. The Samples tab
in the upper left will automatically open when you open this section.
You can use this section to record, manipulate and assign samples to your
desired controls.
• Routing—Display a grid showing your inputs and outputs, so you can
control where your audio goes in detail.
• System—This is where you go to set up folders, set up mic gain,
watch tutorials, look for software updates, and so on.

TC-Helicon GO XLR Specifications

General

Frequency range	10 - 20000 Hz
Channels quantity	- channels
Supported sample rates	48 kHz
Digital sound processing	24 bit
Line Signal-to-Noise Ratio (SNR)	101 dB
Equalizer bands quantity	4
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of microphone inputs	1
DJ mixer	-
Product color	Black
USB connector type	USB Type-B
Fuse	1 A
Phantom power	48 V
Power consumption (typical)	10 W

Weight and Dimensions

Depth	174 mm
Width	285 mm
Height	82 mm
Weight	1550 g
