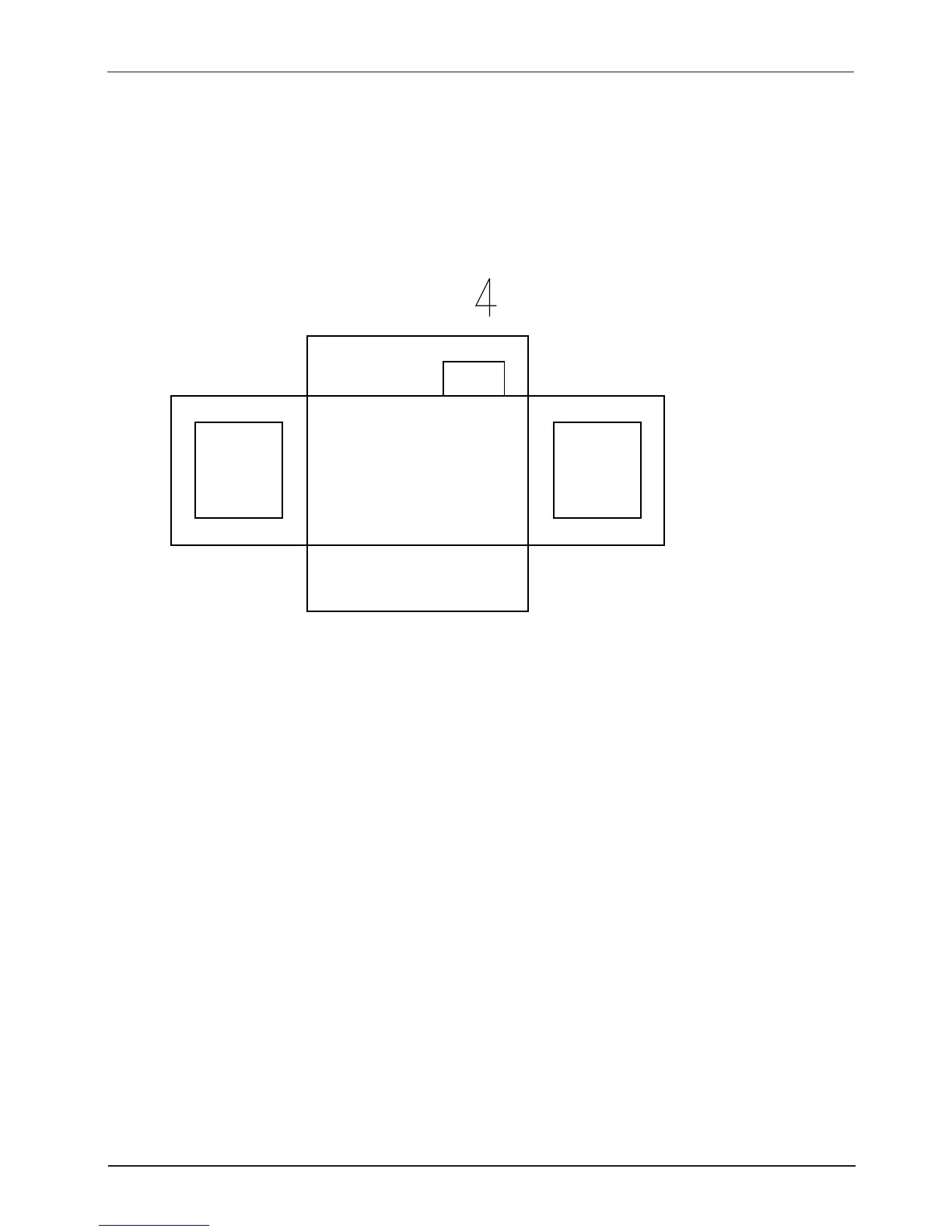

Example) Calculation of simple cooling capacity
By using a simple cooling capacity calculation table, calculate the cooling load.
0.9
2.5
0.5
1
5
7
4
2.3
Double window
(Without pent roof)
(unit:m)
Entrance door
(Opening/shutting door)
Wall (inner wall)
Living room
Wall
No sunshine
North
Condition : .• Apartment living room (middle layer)
• 4 persons in room
• 2 fluorescent light 20W
• One TV set 150W
Sunshine
Veranda
Sliding door
(Double window)
(Curtain)
