TCL U-MATCH-R32 Series

129
TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL

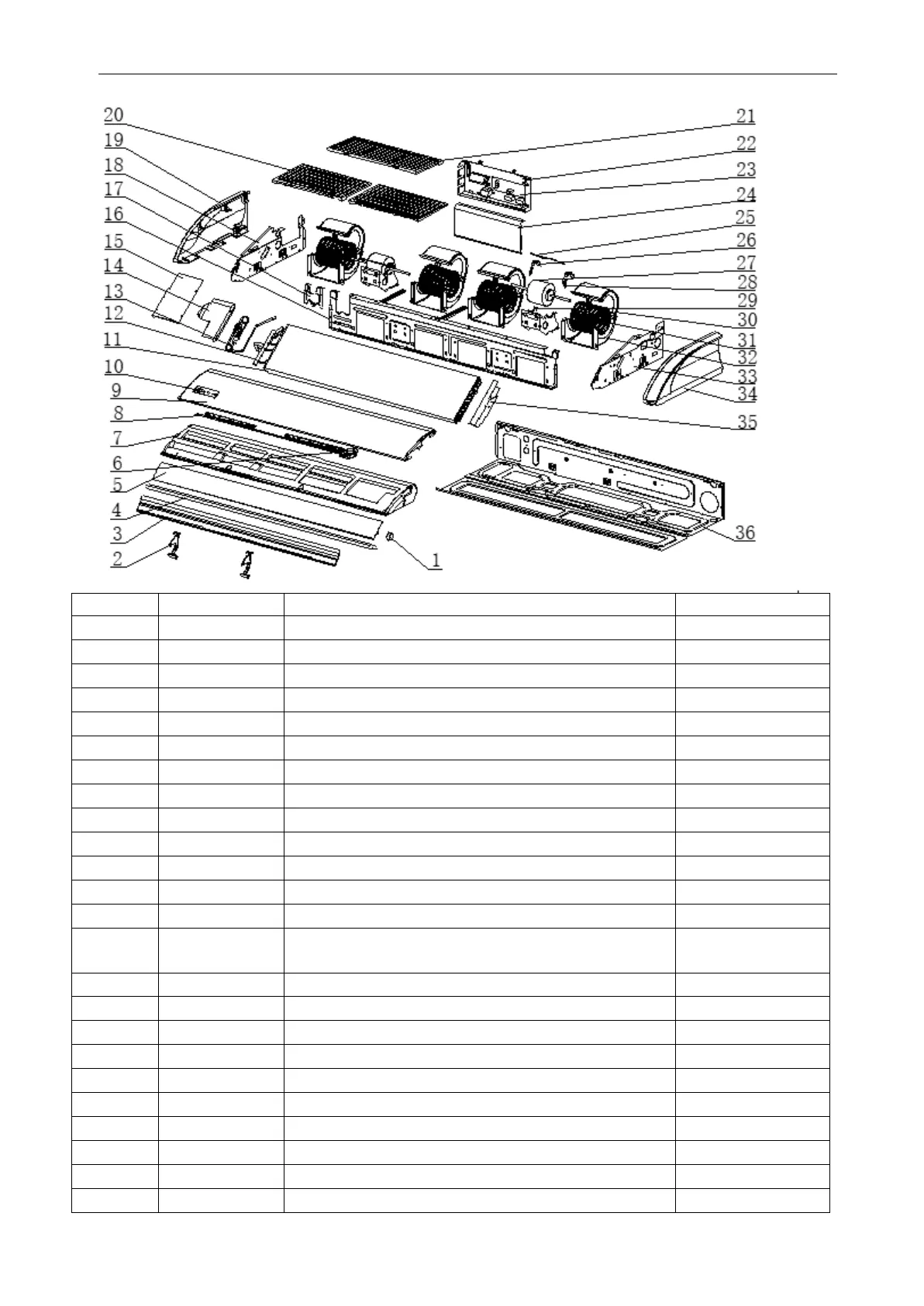

Model: TCC-48ZHRH/DV(02)
No
New Code
Part Name
Q'ty
1
25001-000240
Stepper motor
1
2
45008-000217
Air duct support
2
3
45008-000229
Air outlet bottom plate
1
4
45008-000125
Air vent foam component
1
5
45008-000284
Air guide plate
1
6
25001-000123
Stepper motor
1
7
45011-000087
Water tray component
1
8
45801-000062
Blade Assembly
1
9
45013-000127
front panel
1
10
35010-000074
Display components
1
11
95003-004361
Evaporator assembly
1
12
95016-001604
Output tube assembly
1
13
95016-001428
Input tube assembly
1
14
45801-000046
Lower right cover plate assembly of
evaporator
1
15
45801-000138
Evaporator upper right cover plate assembly
1
16
45014-002009
Middle partition component
1
17
45014-003522
Valve plate
1
18
45003-000202
Right side panel assembly
1
19
45014-002001
Right block
1
20
45014-002551
Air intake grille assembly
2
21
45014-003013
Air intake grille assembly
1
22
35004-001862
Electric control box component
1
23
35004-001826
Indoor control panel
1
24
45006-000354
Electric control box cover
1
