TCL U-MATCH-R32 Series

130
TCL U-MATCH-R32 SERIES DC INVERTER AIR CONDITIONERS SERVICE MANUAL
25
45005-000512
Motor limit card
2
26
45005-000196
Motor bearing right buckle
1
27
25001-000196
Dual axis motor
2
28
45005-000232
Left buckle of motor bearing
2
29
45005-000511
Motor fixing seat
2
30
45008-000195
Wind turbine upper volute
2
31
45009-000015
Centrifugal fan
2
32
45008-000153
Wind turbine lower volute
4
33
45003-000092
Left side panel assembly
4
34
45003-000044
Left block
4
35
45801-000136
Evaporator left cover plate assembly
1
36
45004-000015
Chassis components
1

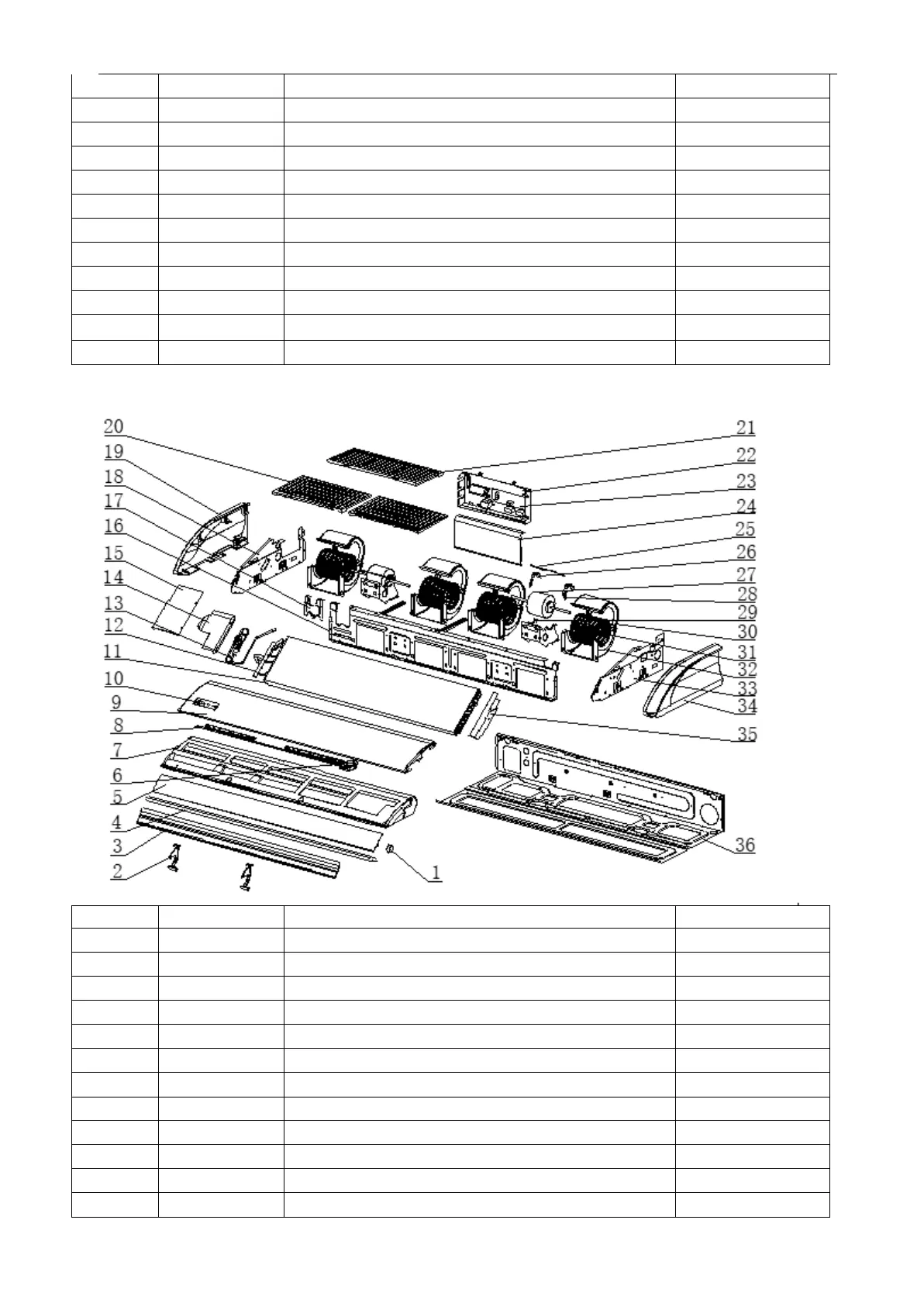

Model: TCC-55ZHRH/DV(02)
No
New Code
Part Name
Q'ty
1
25001-000240
Stepper motor
1
2
45008-000217
Air duct support
2
3
45008-000229
Air outlet bottom plate
1
4
45008-000125
Air vent foam component
1
5
45008-000284
Air guide plate
1
6
25001-000123
Stepper motor
1
7
45011-000087
Water tray component
1
8
45801-000062
Blade Assembly
1
9
45013-000127
front panel
1
10
35010-000074
Display components
1
11
95003-004361
Evaporator assembly
1
12
95016-001604
Output tube assembly
1
