8.1.3 LOCATIONS OF ROLLERS
End and side rollers are installed on the carriage.
The end rollers support longitudinal load and the side rollers support lateral load so that the
inner channel and carriage are raised and lowered smoothly.

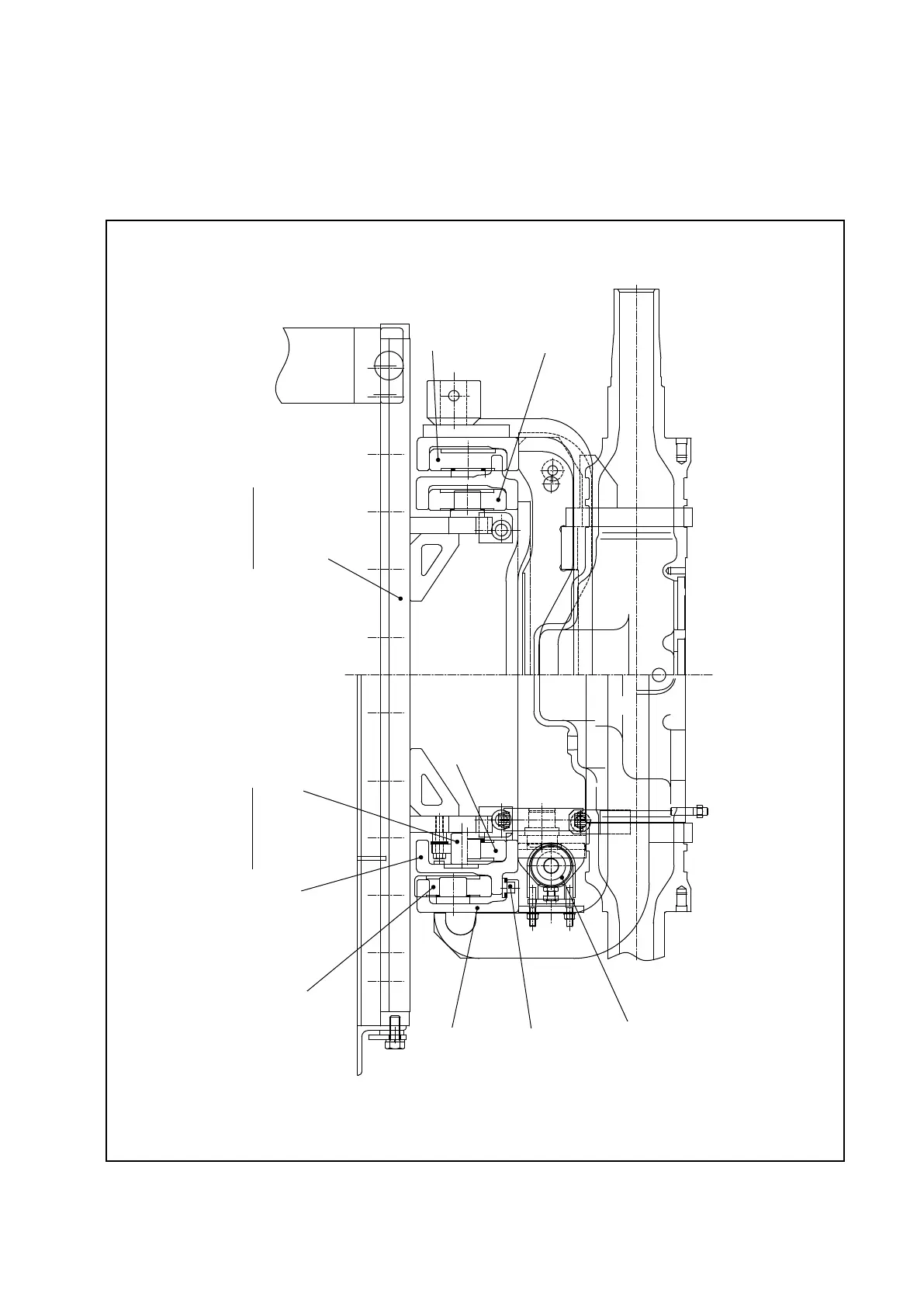

Fig. 8.4 Locations of Rollers (1- to 1.8-ton Trucks)
LIFT CYLINDER
OUTER
CHANNEL
INNER
CHANNEL
SIDE ROLLER
CARRIAGE
SLIPPER
END ROLLER
END ROLLER
END ROLLER
END ROLLER
Upper section
Lower section
8. LOAD HANDLING SYSTEM
