- 32 -
締付トルク：278～416 N・m
{2800～4200 kgf・cm}
（ロックタイト＃262塗布）
カウンタギヤ2
カウンタギヤ1

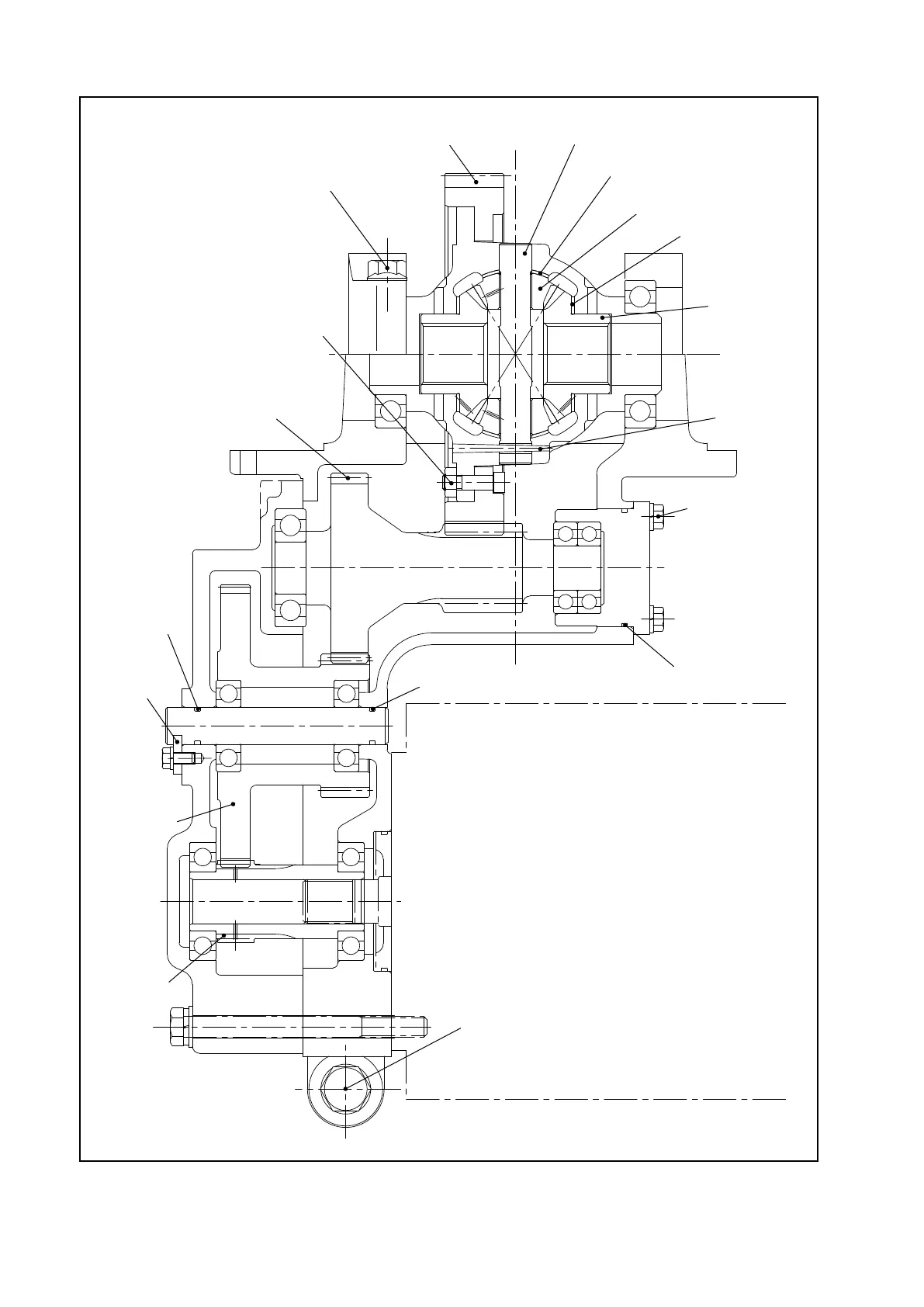

Fig. 4.1 Drive Unit (1- to 1.8-ton Trucks)
Tightening torque: 95 to 142 N-m
{970 to 1450 kgf-cm}
[840.8 to 1257 lbf-in.]
Tightening torque: 44 to 54 N-m
{450 to 550 kgf-cm}
[389.4 to 477.9 lbf-in.]
COUNTER GEAR 2
O-RING
STOPPER
COUNTER
GEAR 1
DRIVE GEAR
RING GEAR
PINION SHAFT
WASHER
PINION GEAR
WASHER
SIDE GEAR
TAPER PIN
Tightening torque:
34.3 to 44 N-m
{350 to 450 kgf-cm}
[303.6 to 389.4 lbf-in.]
O-RING
O-RING
MOTOR
Tightening torque: 278 to 416 N-m
{2800 to 4200 kgf-cm}
[2460.5 to 3681.9 lbf-in.]
(Apply LOCTITE #262)
4. DRIVE UNIT AND DRIVE AXLE
