TCS ISW3030 User Manual

10 07/2015
TCS TürControlSysteme AG, TCS Hotline Germany: +49 (0) 41 94/ 9 88 11 88 Subject to technical changes.
Mail: hotline@tcsag.de ISW3030-0140 UK 2 A
Commissioning
 Install the devices of the system voltage-free and completely.
 Proof the a-, b- and P-wire against each other on short-circuit.
 Switch on the main voltage.
Hint:
If the floor push button is not working, proof, if it is connected to the a-wire of the power
supply and control unit.
Settings
Pre-adjusted times
communication time
max. 2 min
flashing period of the green LED, if the voice
channel is busy after the voice communication
is established
2 sec
3 x flashing
internal standby time, if the device is calling or
is called
around
30 sec
2-wire/3-wire opration

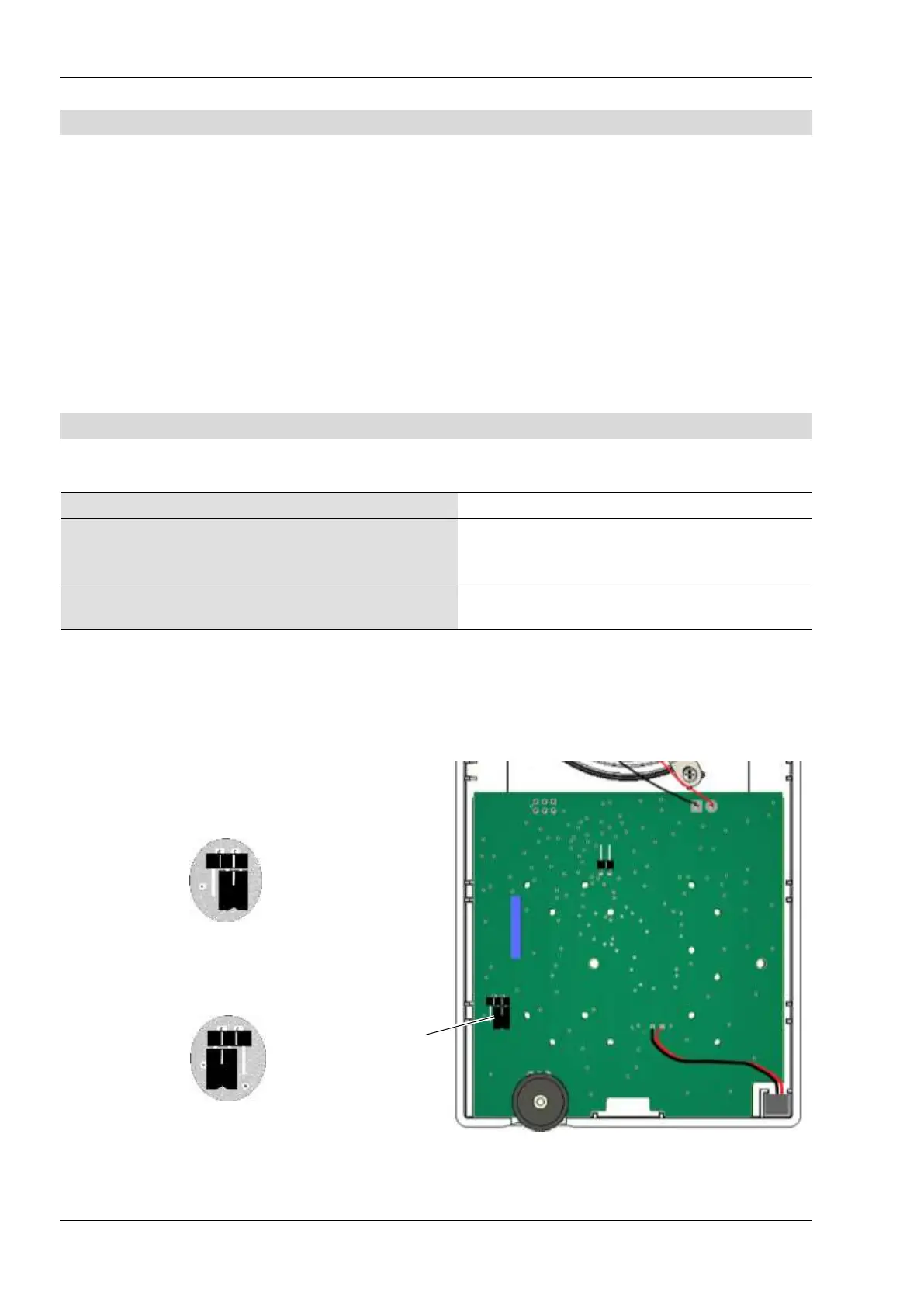

The jumper J1 is adjusted for the 2-wire
operation in delivered state.
2-wire operation (delivered state)
 Put the jumper J1 at both contacts for the
3-wire operation.
3-wire operation
J1
