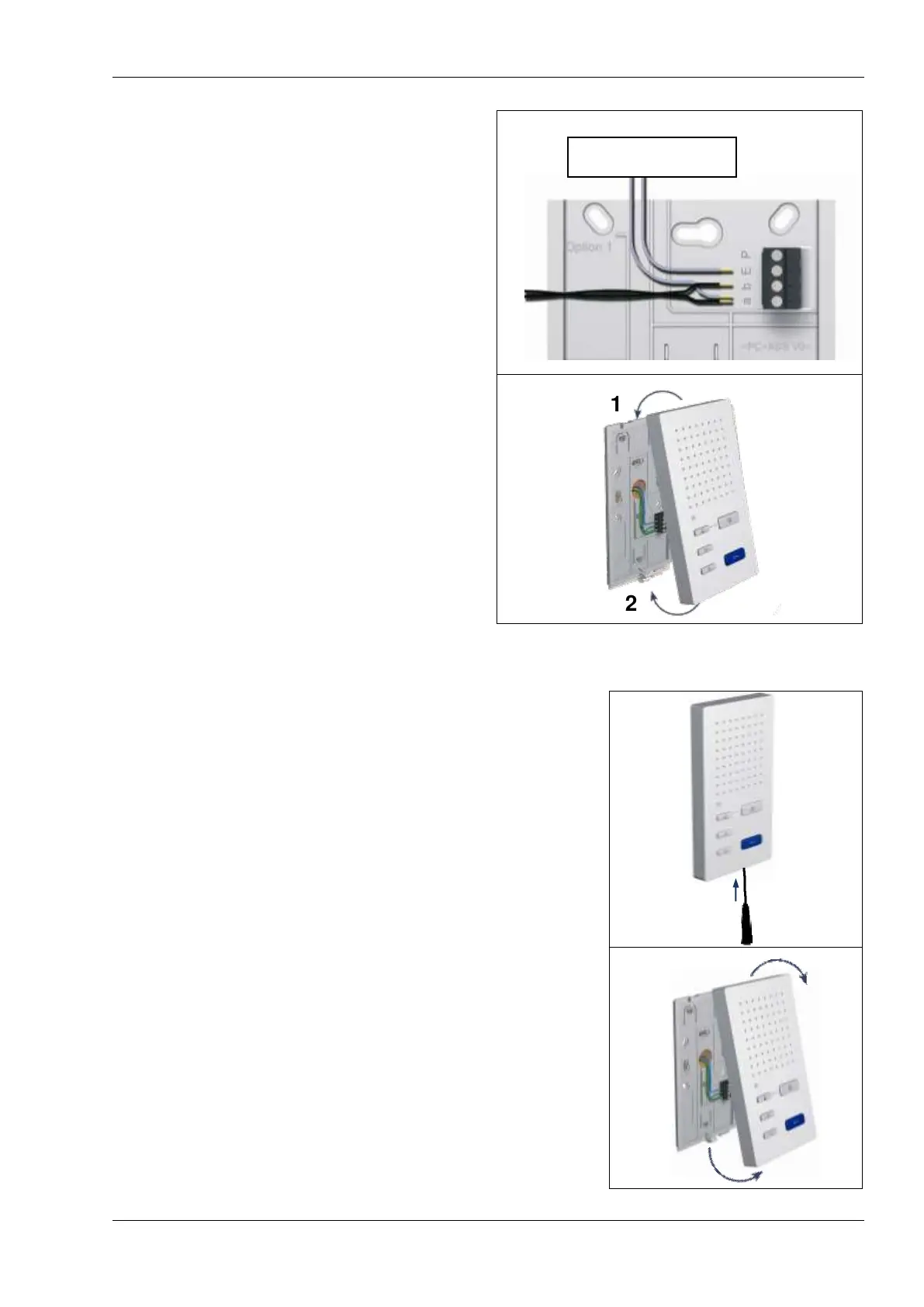

Connect the lines (2-wire technique)
 Minimize the length of the lines above the
lower cover to place the lines without any
problems and do not clamp the lines when
snapping-on the upper cover.
 Connect the lines according to the label-
ling: a b E P (from the bottom to the top),
floor push button at a – E.
See wiring diagram on page 9.
Snapping-on the upper cover
 Set on the upper cover at both adjustment
increment of the lower cover (1).
 Snap-in the upper cover below with slight
pressure (2)
Open the device
 There is a rectangular release opening at the underside
of the device. Insert a small screwdriver straight and
with slight pressure into this opening.
 The upper cover can be removed at the underside (1).
 Lift the upper cover out of the two upper adjustment
increments (2).
1
2
1
2
floor push button
