Installation of extended functions
TRE1
radio transmitter board
FFS3100

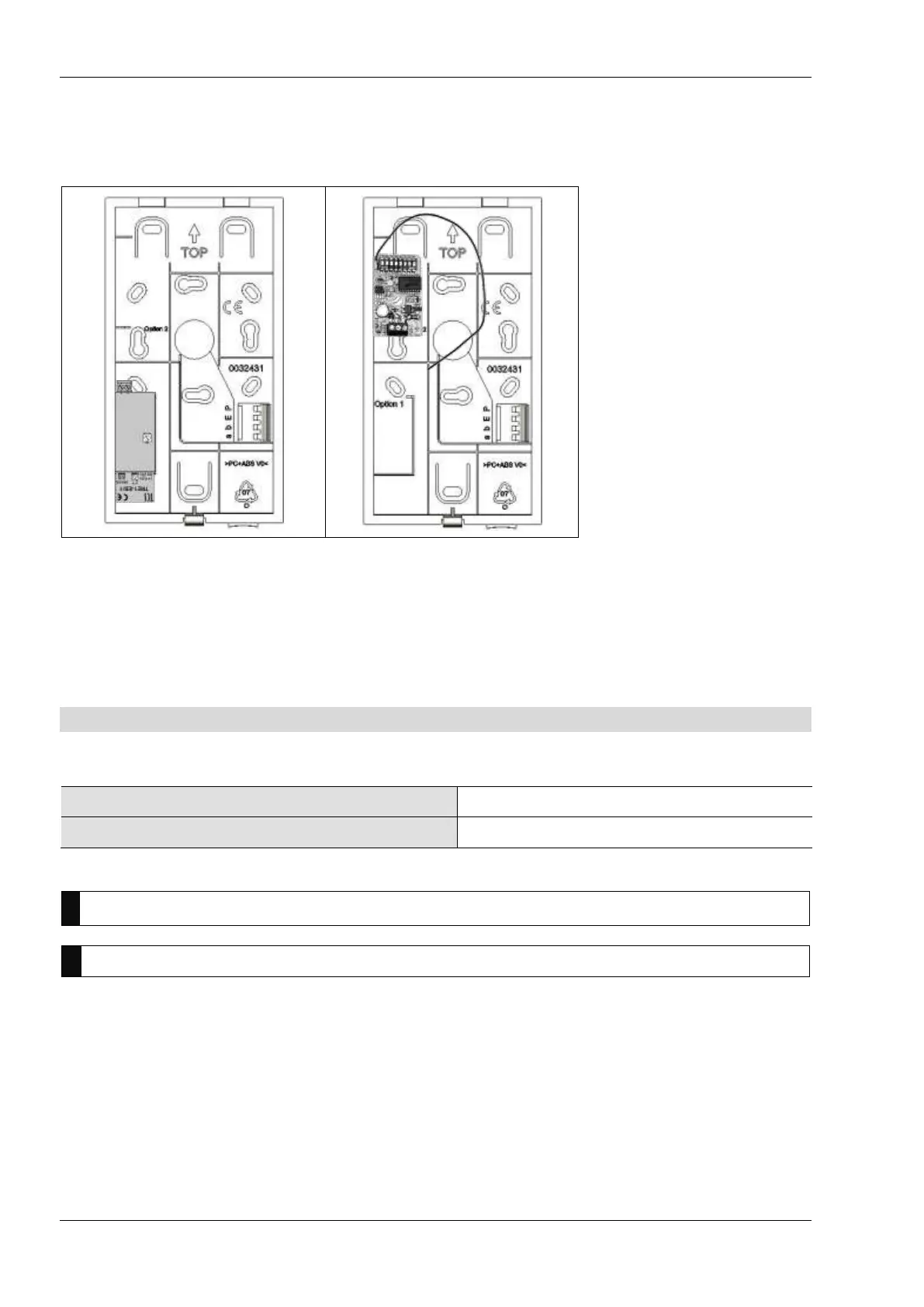

 The extended functions (and the antenna) have to be fixed with adhesive pads in the
indoor station (see also product information of the corresponding extended function).
Connecting the lines
Connecting lines
permitted cross-section (diameter)
0.08 … 0.82 mm
2
(Ø 0.32 … 1.0 mm)
max. number of wires per terminal contact
each 2 x 0.8 mm, 3 x 0.6 mm
!
Further wires have to be connected via auxiliar terminals!
!
Use only connecting lines with the same diameter in one terminal contact.
