TCS ISW3030 User Manual

4 07/2015
TCS TürControlSysteme AG, TCS Hotline Germany: +49 (0) 41 94/ 9 88 11 88 Subject to technical changes.
Mail: hotline@tcsag.de ISW3030-0140 UK 2 A

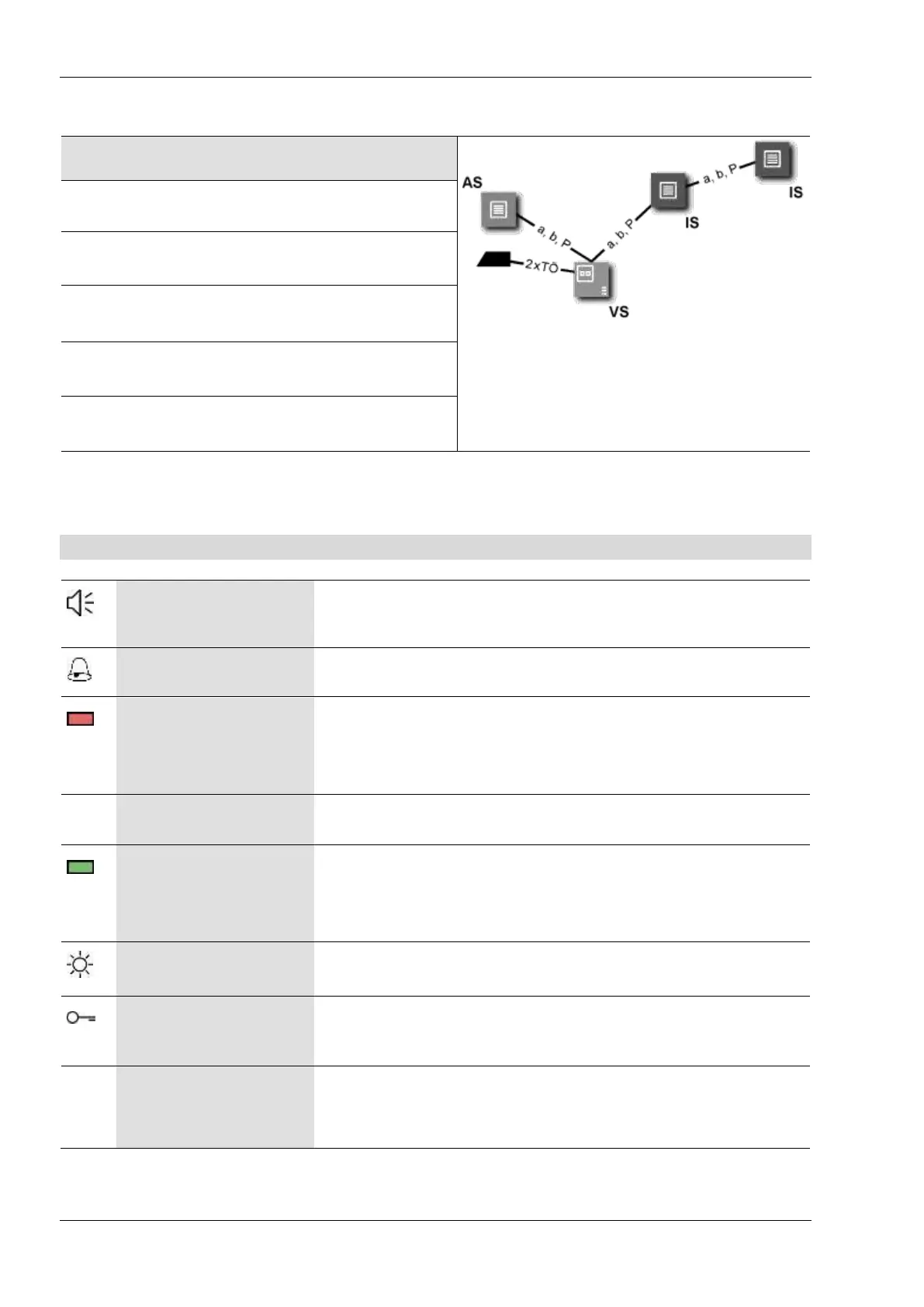

Max. number ISW3030 in 3-wire operation
in case of using power
supply and control unit
Max. Anzahl
ISH3030
BVS20 or
NBV1000, 1 line
20
BVS100,
distributed on 3 lines
80
VBVS05, 1 line
90
BVS20 + NGV1011,
1 line
90
AS front-door station
VS power supply and control unit
IS indoor station
note: The max. number of front-door stations which
can be connected is limited. Details are described in
their product information!
BVS100 + NGV1011,
3 lines
270
Indication and operating elements
speech button
 accepting a call, activate communication,
manually controlled duplex communication
 end communication
call OFF button
 press short: ring tone stopper
 press for 8 sec: initiate ring tone selection
display call OFF
(red)
 ON: call OFF is activated
 error indication: both LEDs are flashing
 ring tone selection: both LEDs are ON
○
control key
 control function 8
 ring tone selection internal call
Call display (green)
 ON: call, communication is activated
 Blinks 3 x: speech channel is busy
 error indication: both LEDs are flashing
 ring tone selection: both LEDs are ON
light switch button
 switching lights
 ring tone selection floor call (from the flat door)
door release button
 open the door
 trigger light switch function*
 ring tone selection door call from front-door station

volume control for
 voice output
 ring tone
adjustable in 8 steps:
 when voice communication is established
 when no voice communication is established
* if light switch function is activated in the front.door station
