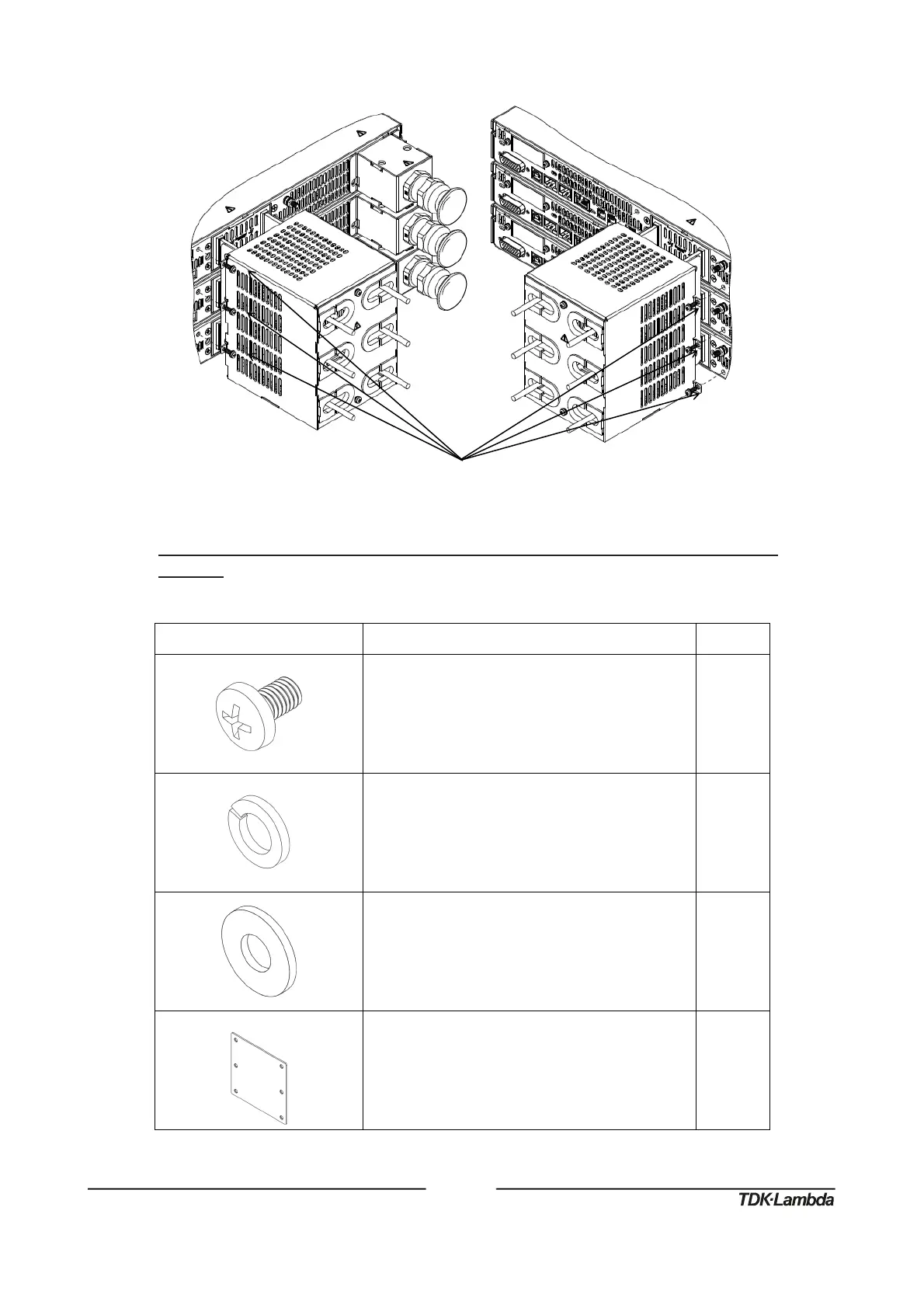

7. Fix output cover to the power supplies using six SEMS screws as illustrated in Figure 22.





Figure22:Three60V‐100VUnitsOutputCoverAssembly
1.4.4 G/P-3U-150-600V - Assembly Instructions for three 150V-600V units in
Parallel
1.4.4.1 Components List
Image Component Quantity



10‐32x5/16PanHeadScrew,StainlessSteel 12



HelicalSpring‐LockWasher,No.10,StainlessSteel 12

PlainWasher,No.10,StainlessSteel 12


ConnectionPlate3U 2
M3x8SEMSScrew,NickelPlated
Tighteningtorque:4.7
‐
5.7Lbf
‐
inch(0.53
‐
0.64Nm)

