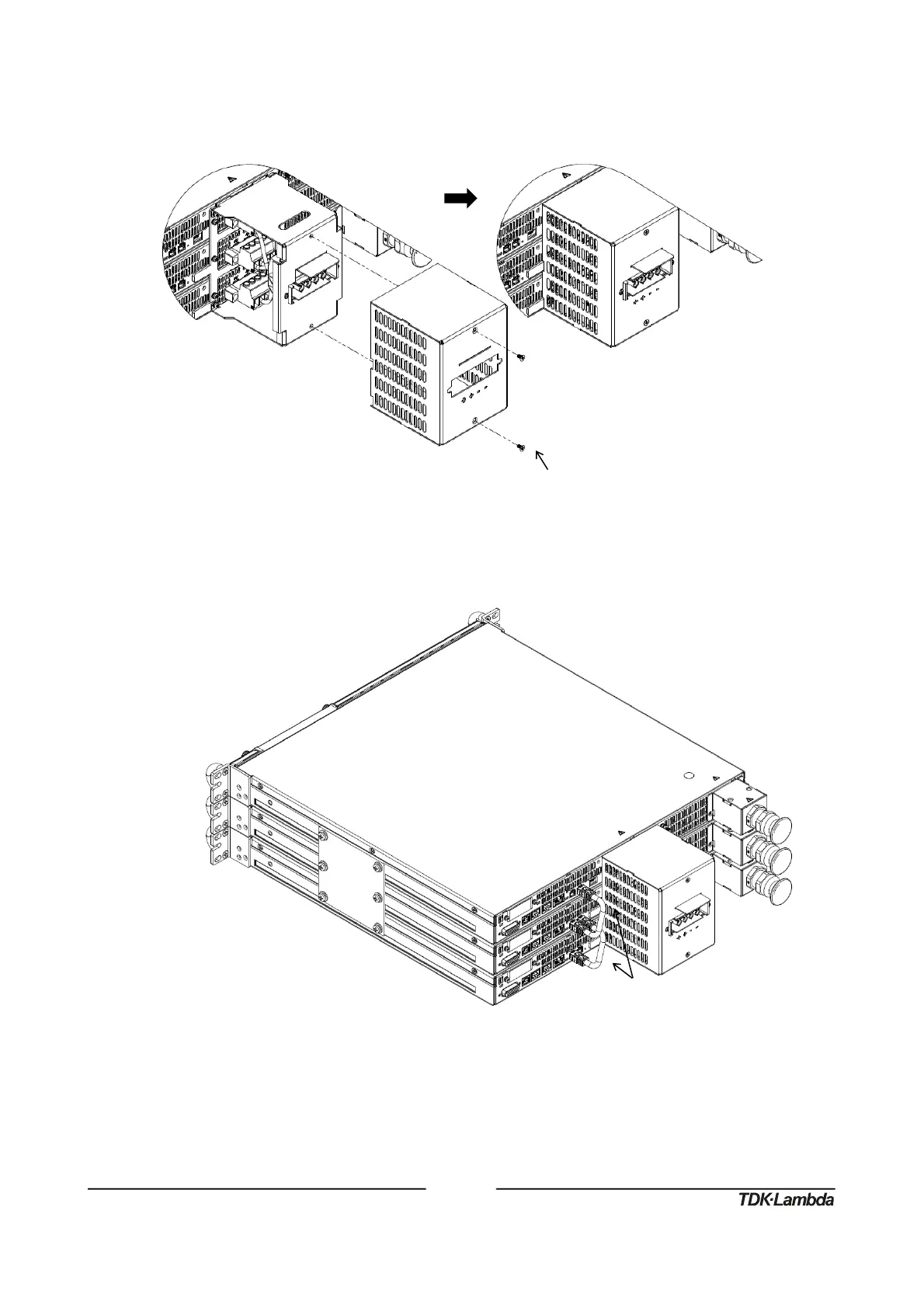

6. Attach output bracket to output bracket G+15KW using two flat head screws as illustrated in
Figure 28.



Figure28:Outputbracketinstallation
7. Connect two paralleling cables from top unit M connector to bottom unit S connector as
illustrated in Figure 29.

Figure29:Three150V‐600VUnitsParallelingCablesConnection

ParallelingCables
M3x6GFlatHeadScrew,NickelPlated
Tighteningtorque:4.7‐5.7Lbf‐inch(0.53‐0.64Nm)
