OUTPUT TERMINALS COVER
Models up to 60V output voltage
After connection of the load wires ( refer to par. 3-7 ), attach the plastic cover to the rear panel of the
power supply, using two self tapping screws supplied with the unit. Refer to Fig. 1-1 for details.
Fig. 1-2: Output wires connection
OUTPUT CONNECTOR COVER
80V and 120V models
MALE CONNECTOR (PSC1.5/3-M-PE , Phoenix)
FEMALE PLUG (PSC 1.5/3-F)
PLASTIC PLUG COVER
Wires : Copper , AWG16-30
Tightening torque : 4lib-in
WARNING
Hazardous voltages may exist at the output terminals.
Attach the terminals cover, supplied with the unit, to the chassis after connecting the load wires as
described below.

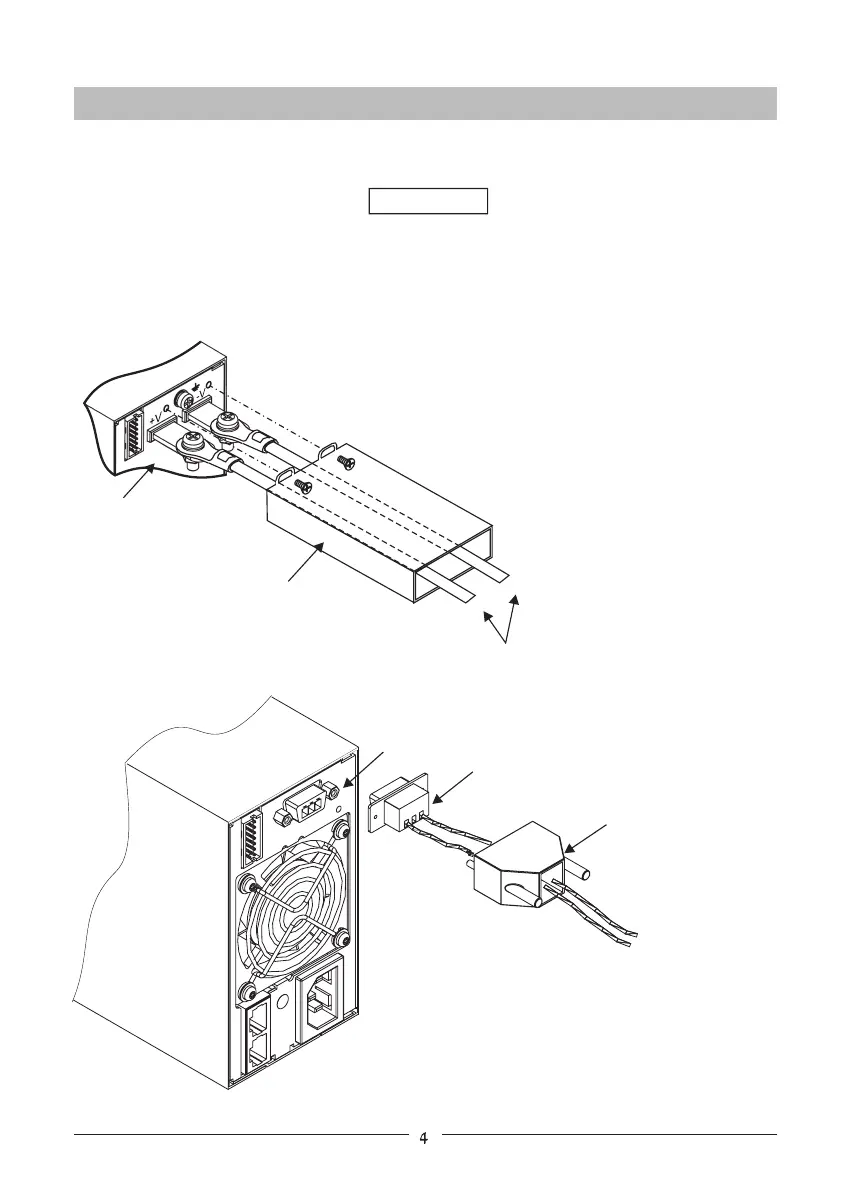

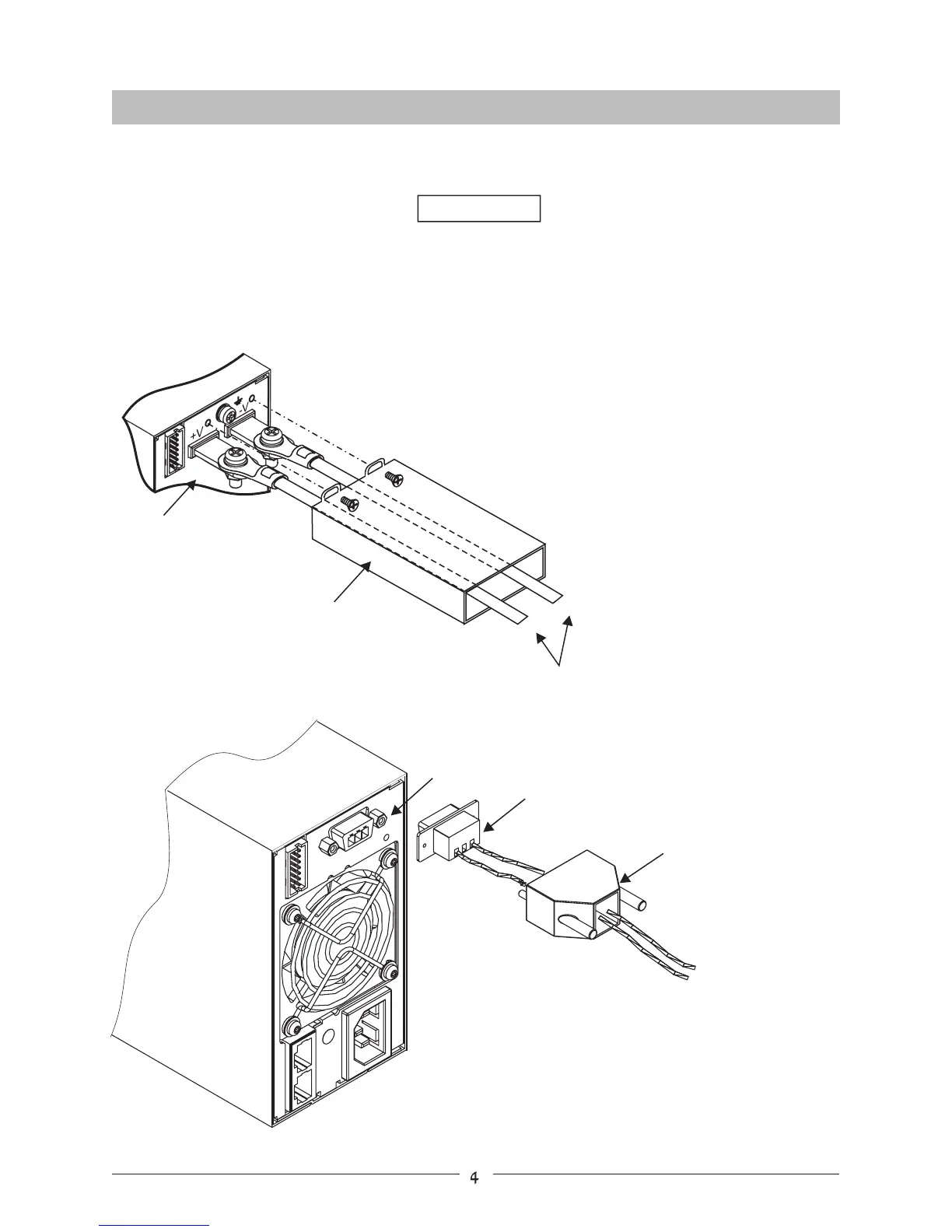

Fig. 1-1: Terminals cover assembly
REAR PANEL
LOAD WIRES
PLASTIC COVER
SAFETY INSTRUCTIONS
+V
-V
