TE Connectivity CCS1 - Cross-Sectional Crimp Requirements; Shape and Position Tolerances

114-94438 REV C1
10 of 36
5.5. Cross sections

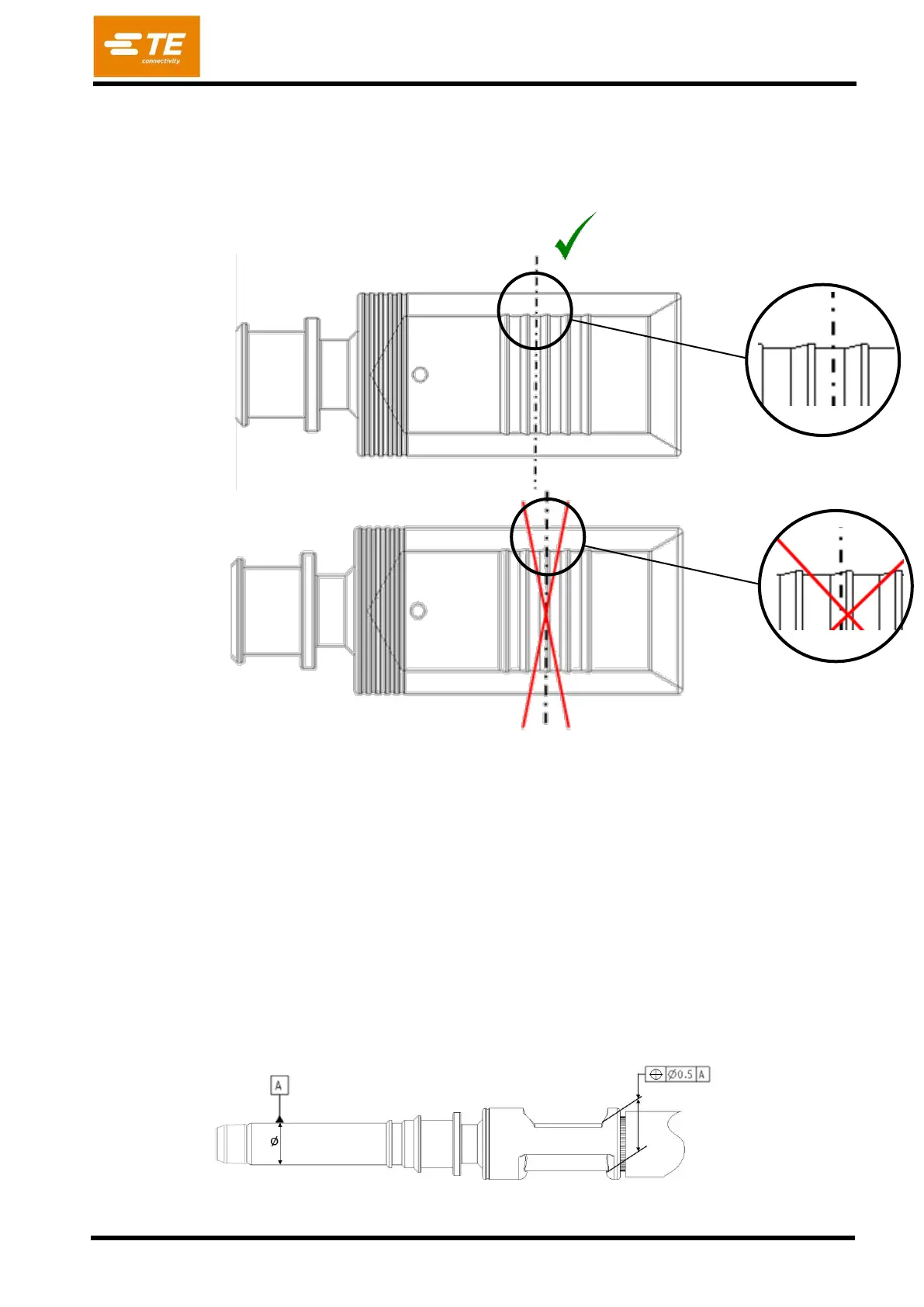

When creating cross sections, the correct grinding layer must be selected. The
Grinding layer has to be at middle of crimp area and may not be inside of serration.
5.6. Contact area
During processing and following processing, the contact area may not be damaged or bended.
5.7. Sealing area
During processing and following processing, the sealing area may not be damaged or bended.
5.8. Shape and position tolerances
For 6 mm² and 16 mm² meeting the specific shape and position tolerances shown at figure 6 must be ensured
before the contact is inserted into the housing.
Figure 5
Figure 6
