TE Connectivity CCS1 - Crimp Tool Positioning

114-94438 REV C1
8 of 36
Crimp Die Sets are subject to wear and their condition and quality have to be monitored. Suspect and/or
worn Die Sets have not to be used for the production of these crimps. Die Sets are available as spare
parts.

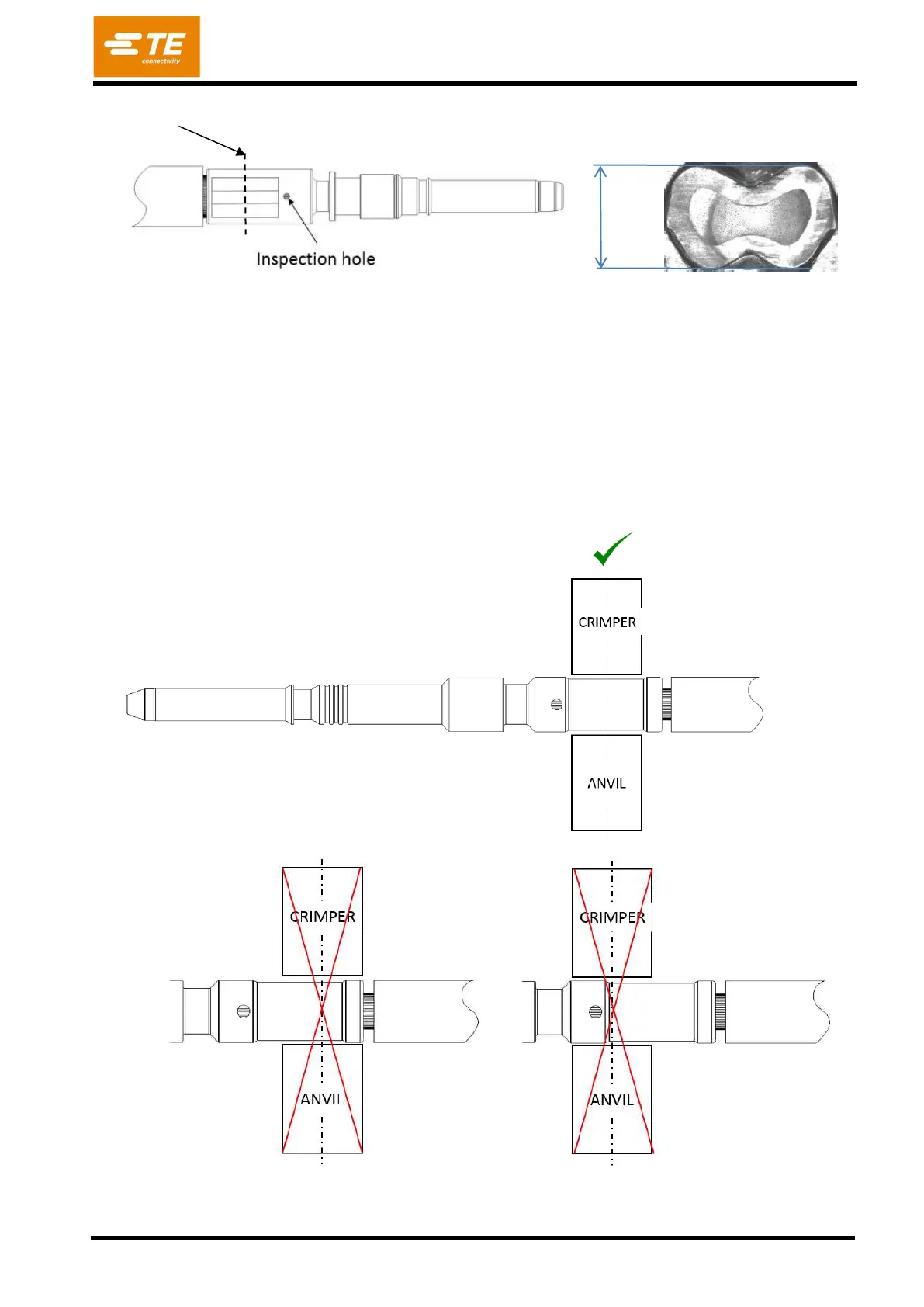

5.4. Crimpposition
Contacts of diameter 6mm² have to be crimped with crimping tool position at middle of crimp area as
shown.
H
Figure 2
Figure 3
Measuring plane
