6. ASSEMBLY INSTRUCTIONS
In this chapter the way of assembly is described. All pictures in this chapter may differ from the
specific product. The pictures illustrate the way of assembly and may not reflect all variants. The
exact appearance of the components can be seen in the drawing documentation.

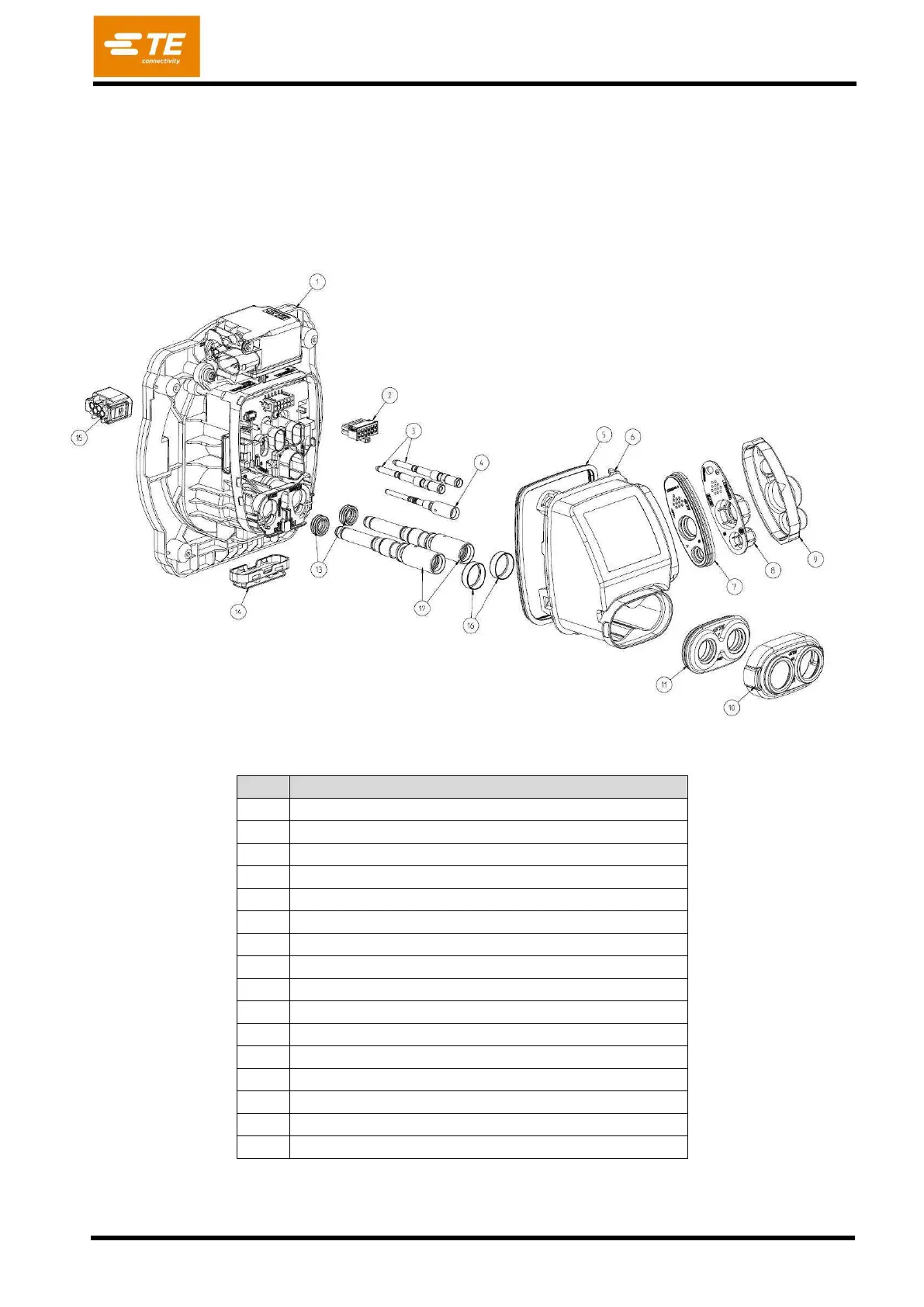

6.1. Assembly overview
Charge Inlet CCS I
Pos.
Description / Bezeichnung
1
INLET HSG, COMBO1, ASSY
2
12P MICRO MNL ASSY
3
PIN DIA 3.6, AC
4
PIN DIA 2.8, PE
5
PERIPHERAL SEAL
6
CABLE EXIT
7
FAMILY SEAL, AC
8
STRAIN RELIEF, AC
9
COVER, CABLE SEAL, AC
10
COVER, CABLE SEAL, DC
11
FAMILY SEAL, DC
12
PIN, DIA8.0
13
SEALING
14
WATER DRAIN
15
4POS MQS ASSY
16
OUTER FERRULE
Table 2
Figure 10
