APPENDIX 1 SPECIFICATIONS ENGLISH VERSION
1 - 5
A1 .3 Media

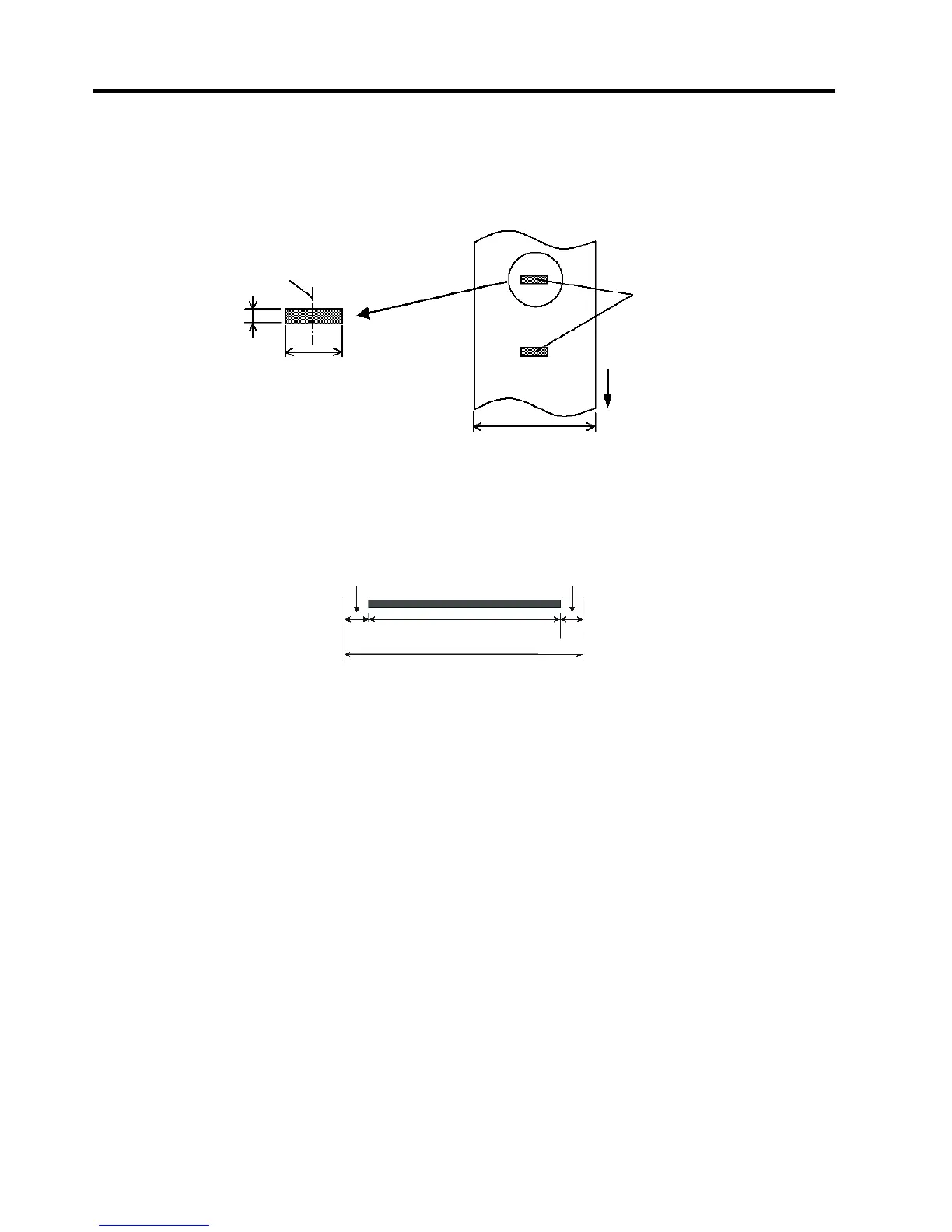

A1 .3.3 Detection Area of the Reflective Sensor
The Reflective Sensor is movable within the full range of the media width.
The reflection factor of the Black Mark must be 10% or lower with a waveform length of 950 nm.
The Reflective Sensor should be aligned with the centre of the Black Mark.
Sensor is movable within the full range.
Media feed direction
Min. 8 mm
Min. 2 mm
Detecting the black marks on the
back.
Sensor should be positioned at the
cent
re of the black mark.
A1 .3.4 Effective Print Area
The figure below illustrates the relation between the head effective print width and media width.
Out of print range Out of print range
Print head element
2 mm
108.0 mm± 0.2mm
(Head Effective Print Range)
1
12.0 mm (Max. media width)
To Next Page
