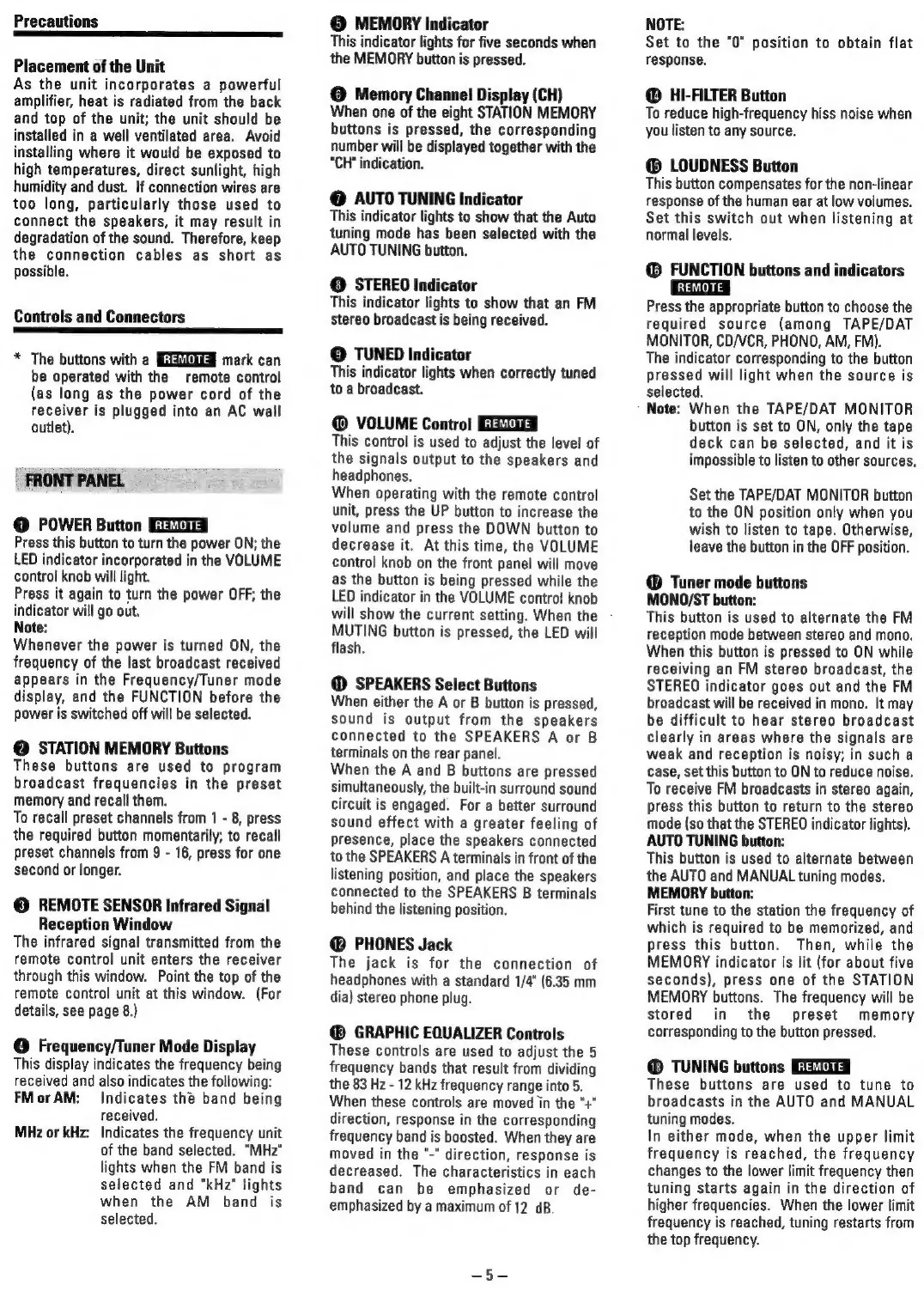

Precautions
Placement
of
the
Unit
As
the
unit
incorporates
a
powerful
amplifier,
heat
is
radiated
from
the
back
and
top
of
the
unit;
the
unit
should
be
installed
in
a
well
ventilated
area.
Avoid
installing
where
it
would
be
exposed
to
high
temperatures,
direct
sunlight,
high
humidity
and
dust.
If
connection
wires
are
too
long,
particularly
those
used
to
connect
the
speakers,
it
may
result
in
degradation
of
the
sound.
Therefore,
keep
the
connection
cables
as
short
as
possible.
Controls
and
Connectors
*
The
buttons
with
a
mark
can
be
operated
with
the
remote
control
(as
long
as
the
power
cord
of
the
receiver
is
plugged
into
an
AC
wall
outlet).
FRONT
PANEL
@
POWER
Button
Press
this
button
to
turn
the
power
ON;
the
LED
indicator
incorporated
in
the
VOLUME
control
knob
will
light.
Press
it
again
to
turn
the
power
OFF;
the
indicator
will
go
out.
Note:
Whenever
the
power
is
turned
ON,
the
frequency
of
the
last
broadcast
received
appears
in
the
Frequency/Tuner
mode
display,
and
the
FUNCTION
before
the
power
is
switched
off
will
be
selected.
@
STATION
MEMORY
Buttons
These
buttons
are
used
to
program
broadcast
frequencies
in
the
preset
memory
and
recall
them.
To
recall
preset
channels
from
1
-
8,
press
the
required
button
momentarily;
to
recall
preset
channels
from
9
-
16,
press
for
one
second
or
longer.
©
REMOTE
SENSOR
Infrared
Signal
Reception
Window
The
infrared
signal
transmitted
from
the
remote
control
unit
enters
the
receiver
through
this
window.
Point
the
top
of
the
remote
control
unit
at
this
window.
(For
details,
see
page
8.)
©
Frequency/Tuner
Mode
Display
This
display
indicates
the
frequency
being
received
and
also
indicates
the
following:
FMorAM:
Indicates
the
band
being
received.
MHz
or
kHz:
Indicates
the
frequency
unit
of
the
band
selected.
"MHz"
lights
when
the
FM
band
is
selected
and
“kHz”
lights
when
the
AM
band
is
selected.
©
MEMORY
Indicator
This
indicator
lights
for
five
seconds
when
the
MEMORY
button
is
pressed.
©
Memory
Channel
Display
(CH)
When
one
of
the
eight
STATION
MEMORY
buttons
is
pressed,
the
corresponding
number
will
be
displayed
together
with
the
“CH"
indication.
@
AUTO
TUNING
Indicator
This
indicator
lights
to
show
that
the
Auto
tuning
mode
has
been
selected
with
the
AUTO
TUNING
button.
©
STEREO
Indicator
This
indicator
lights
to
show
that
an
FM
stereo
broadcast
is
being
received.
©
TUNED
Indicator
This
indicator
lights
when
correctly
tuned
to
a
broadcast.
@
VOLUME
Control
This
control
is
used
to
adjust
the
level
of
the
signals
output
to
the
speakers
and
headphones.
When
operating
with
the
remote
control
unit,
press
the
UP
button
to
increase
the
volume
and
press
the
DOWN
button
to
decrease
it.
At
this
time,
the
VOLUME
control
knob
on
the
front
panel
will
move
as
the
button
is
being
pressed
while
the
LED
indicator
in
the
VOLUME
control
knob
will
show
the
current
setting.
When
the
-
MUTING
button
is
pressed,
the
LED
will
flash.
@
SPEAKERS
Select
Buttons
When
either
the
A
or
B
button
is
pressed,
sound
is
output
from
the
speakers
connected
to
the
SPEAKERS
A
or
B
terminals
on
the
rear
panel.
When
the
A
and
B
buttons
are
pressed
simultaneously,
the
built-in
surround
sound
circuit
is
engaged.
For
a
better
surround
sound
effect
with
a
greater
feeling
of
presence,
place
the
speakers
connected
to
the
SPEAKERS
A
terminals
in
front
of
the
listening
position,
and
place
the
speakers
connected
to
the
SPEAKERS
B
terminals
behind
the
listening
position.
@
PHONES
Jack
The
jack
is
for
the
connection
of
headphones
with
a
standard
1/4"
(6.35
mm
dia)
stereo
phone
plug.
GRAPHIC
EQUALIZER
Controls
These
controls
are
used
to
adjust
the
5
frequency
bands
that
result
from
dividing
the
83
Hz
-
12
kHz
frequency
range
into
5.
When
these
controls
are
moved
in
the
"+"
direction,
response
in
the
corresponding
frequency
band
is
boosted.
When
they
are
moved
in
the
“-"
direction,
response
is
decreased.
The
characteristics
in
each
band
can
be
emphasized
or
de-
emphasized
by
a
maximum
of 12
dB
NOTE:
Set
to
the
"0"
position
to
obtain
flat
response.
HI-FILTER
Button
To
reduce
high-frequency
hiss
noise
when
you
listen
to
any
source.
LOUDNESS
Button
This
button
compensates
for
the
non-linear
response
of
the
human
ear
at
low
volumes.
Set
this
switch
out
when
listening
at
normal
levels.
@
FUNCTION
buttons
and
indicators
Press
the
appropriate
button
to
choose
the
required
source
(among
TAPE/DAT
MONITOR,
CD/VCR,
PHONO,
AM,
FM).
The
indicator
corresponding
to
the
button
pressed
will
light
when
the
source
is
selected.
Note:
When
the
TAPE/DAT
MONITOR
button
is
set
to
ON,
only
the
tape
deck
can
be
selected,
and
it
is
impossible
to
listen
to
other
sources,
Set
the
TAPE/DAT
MONITOR
button
to
the
ON
position
only
when
you
wish
to
listen
to
tape.
Otherwise,
leave
the
button
in
the
OFF
position.
Tuner
mode
buttons
MONO/ST
button:
This
button
is
used
to
alternate
the
FM
reception
mode
between
stereo
and
mono.
When
this
button
is
pressed
to
ON
while
receiving
an
FM
stereo
broadcast,
the
STEREO
indicator
goes
out
and
the
FM
broadcast
will
be
received
in
mono.
It
may
be
difficult
to
hear
stereo
broadcast
clearly
in
areas
where
the
signals
are
weak
and
reception
is
noisy;
in
such
a
case,
set
this
button
to
ON
to
reduce
noise.
To
receive
FM
broadcasts
in
stereo again,
press
this
button
to
return
to
the
stereo
mode
(so
that
the
STEREO
indicator
lights).
AUTO
TUNING
button:
This
button
is
used
to
alternate
between
the
AUTO
and
MANUAL
tuning
modes.
MEMORY
button:
First
tune
to
the
station
the
frequency
of
which
is
required
to
be
memorized,
and
press
this
button.
Then,
while
the
MEMORY
indicator
is
lit
(for
about
five
seconds),
press
one
of
the
STATION
MEMORY
buttons.
The
frequency
will
be
stored
in
the
preset
memory
corresponding
to
the
button
pressed.
TUNING
buttons
These
buttons
are
used
to
tune
to
broadcasts
in
the
AUTO
and
MANUAL
tuning
modes.
In
either
mode,
when
the
upper
limit
frequency
is
reached,
the
frequency
changes
to
the
lower
limit
frequency
then
tuning
starts
again
in
the
direction
of
higher
frequencies.
When
the
lower
limit
frequency
is
reached,
tuning
restarts
from
the
top
frequency.
