Teac C-3 User Manual

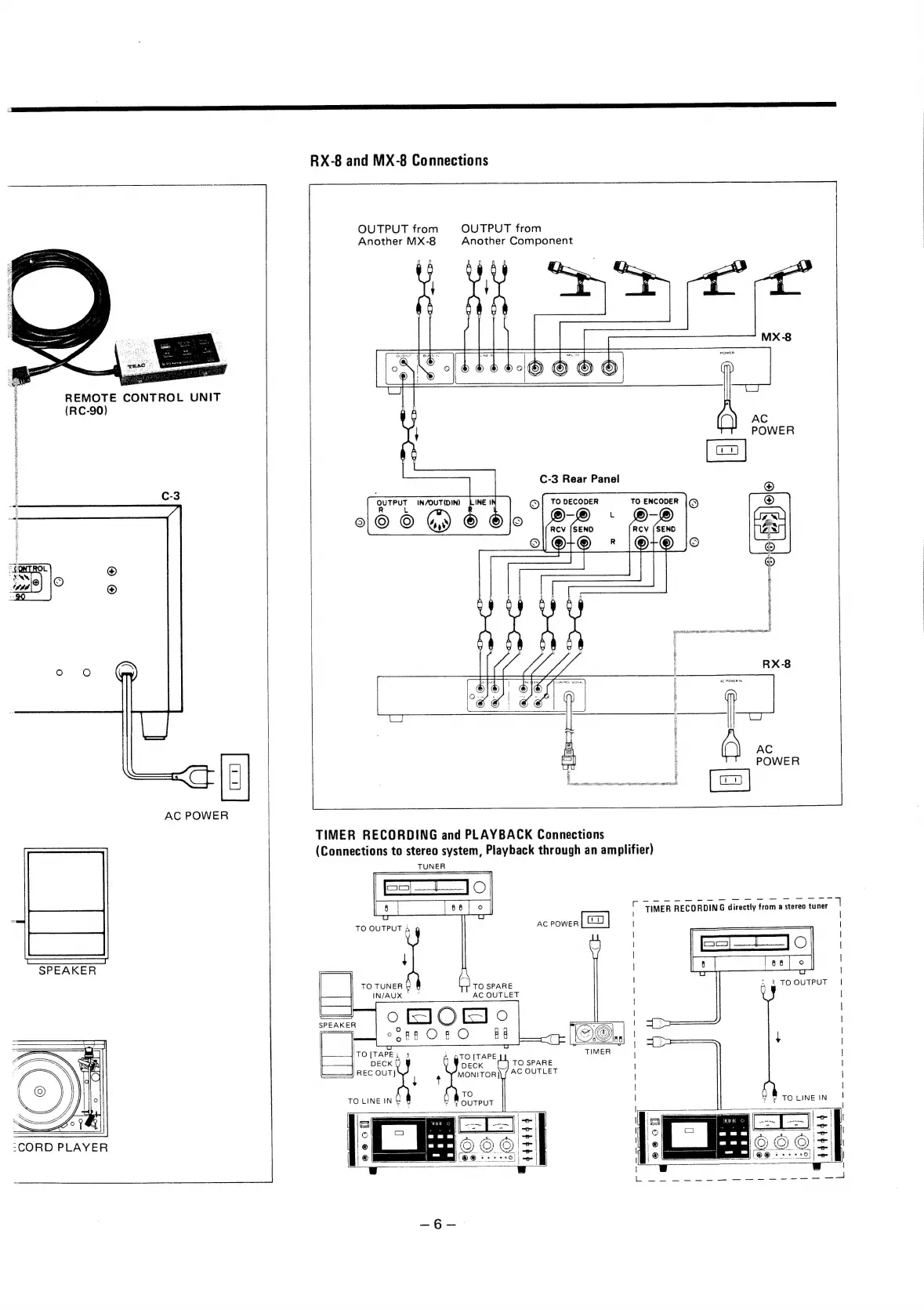

RX-8 and MX-8 Connections
OUTPUT from OUTPUT from
Another MX-8 Another Component
MX-8
REMOTE CONTROL UNIT
(RC-90)
C-3 Rear Panel
ouyeme IN /OUTIDIN) INE | © TO DECODER TO ENCODER
L ;
© © GY © Oo
bt
i
E
3
satten recat car a acnya) SAO ASST aa a
AC POWER
TIMER RECORDING and PLAYBACK Connections
(Connections to stereo system, Playback through an amplifier)
TUNER
TO OUTPUT }
rtd
TO TUNER §
IN/AUX ~
SPEAKER
TO [TAPE «
DECK
TOLINE IN © &
SPEAKER
TO SPARE
AC OUTLET
t DECK TO SPARE
MONITOR)\/ AC OUTLET
=CORD PLAYER

Teac C-3 Specifications

Audio Specifications

track system	4-track 2-channel stereo
heads	3: Erase, record & playback
type of tape	Cassette tape C-60 and C-90
tape speed	1 7/8 ips
wow and flutter (NAB Weighted)	0.05 %
frequency response	20 — 20, 000 Hz
signal to noise ratio	58 dB
fast wind time	Approximately 90 seconds for C-60

Inputs and Outputs

line input	60 mV, 50 k ohms
microphone input	0.25 mV/-72 dB
line output	0.3 V for load impedance of 50 k ohms or more
headphone output	8 ohms
power requirements	100/117/220/240 V AC, 50/60 Hz, 25 W

Weight and Dimensions

dimensions	482(W) x 147(H) x 345(D) mm
weight	10 kg
