Teac C-3 User Manual

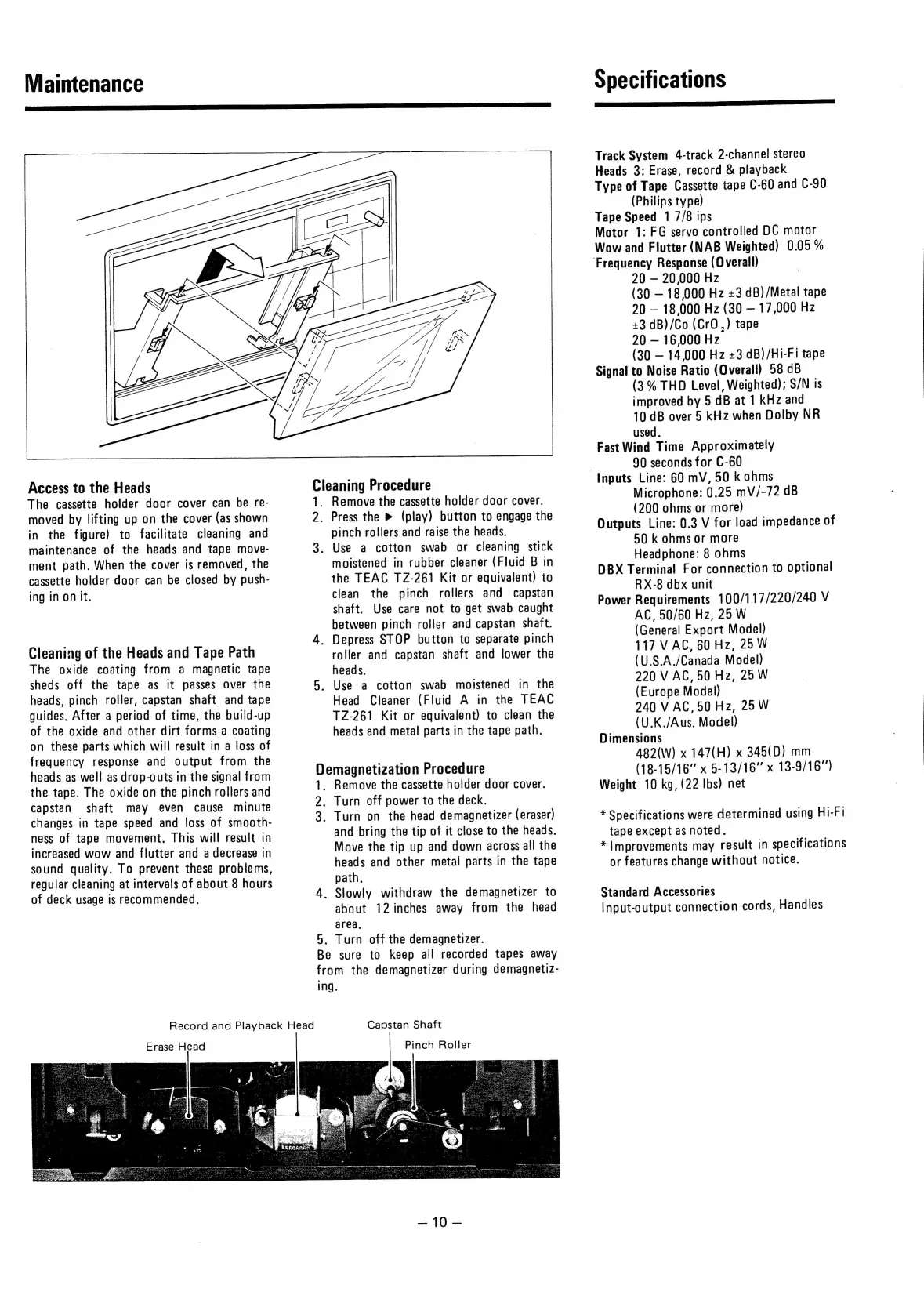

Maintenance
Access to the Heads
The cassette holder door cover can be re-
moved by lifting up on the cover (as shown
in the figure) to facilitate cleaning and
maintenance of the heads and tape move-
ment path. When the cover is removed, the
cassette holder door can be closed by push-
ing in on it.
Cleaning of the Heads and Tape Path
The oxide coating from a magnetic tape
sheds off the tape as it passes over the
heads, pinch roller, capstan shaft and tape
guides. After a period of time, the build-up
of the oxide and other dirt forms a coating
on these parts which will result in a loss of
frequency response and output from the
heads as well as drop-outs in the signal from
the tape. The oxide on the pinch rollers and
capstan shaft may even cause minute
changes in tape speed and loss of smooth-
ness of tape movement. This will result in
increased wow and flutter and a decrease in
sound quality. To prevent these problems,
regular cleaning at intervals of about 8 hours
of deck usage is recommended.
Record and Playback Head
Erase Head
Cleaning Procedure
1. Remove the cassette holder door cover.
2. Press the » (play) button to engage the
pinch rollers and raise the heads.
3. Use a cotton swab or cleaning stick
moistened in rubber cleaner (Fluid B in
the TEAC TZ-261 Kit or equivalent) to
clean the pinch rollers and capstan
shaft. Use care not to get swab caught
between pinch roller and capstan shaft.
4. Depress STOP button to separate pinch
roller and capstan shaft and lower the
heads.
5. Use a cotton swab moistened in the
Head Cleaner (Fluid A in the TEAC
TZ-261 Kit or equivalent) to clean the
heads and metal parts in the tape path.
Demagnetization Procedure
1. Remove the cassette holder door cover.
2. Turn off power to the deck.
3. Turn on the head demagnetizer (eraser)
and bring the tip of it close to the heads.
Move the tip up and down across all the
heads and other metal parts in the tape
path.
4. Slowly withdraw the demagnetizer to
about 12 inches away from the head
area,
5. Turn off the demagnetizer.
Be sure to keep all recorded tapes away
from the demagnetizer during demagnetiz-
ing.
Capstan Shaft
Pinch Roller
—10—
Specifications
a PE PS
Track System 4-track 2-channel stereo
Heads 3: Erase, record & playback
Type of Tape Cassette tape C-60 and C-90
(Philips type)
Tape Speed 1 7/8 ips
Motor 1: FG servo controlled DC motor
Wow and Flutter (NAB Weighted) 0.05 %
Frequency Response (Overall)
20 — 20,000 Hz
(30 — 18,000 Hz +3 dB)/Metal tape
20 — 18,000 Hz (30 — 17,000 Hz
+3 dB)/Co (CrO,) tape
20 — 16,000 Hz
(30
—
14,000
Hz
+3
dB)
/Hi-Fi
tape
Signal to Noise Ratio (Overall) 58 dB
(3% THD Level, Weighted); S/N is
improved by 5 dB at 1 kHz and
10
dB
over
5
kHz
when
Dolby
NR
used.
Fast Wind Time Approximately
90 seconds for C-60
“Inputs Line: 60 mV, 50 k ohms
Microphone: 0.25 mV/-72 dB
(200 ohms or more)
Outputs
Line:
0.3
V
for
load
impedance
of
50 k ohms or more
Headphone: 8 ohms
DBX
Terminal
For
connection
to
optional
RX-8 dbx unit
Power
Requirements
100/117/220/240
V
AC, 50/60 Hz, 25 W
(General Export Model)
117 VAC, 60 Hz, 25 W
(U.S.A./Canada Model)
220 V AC, 50 Hz, 25 W
(Europe Model)
240 VAC, 50 Hz, 25W
(U.K./Aus. Model)
Dimensions
482(W) x 147(H) x 345(D) mm
(18-15/16"
x
5-13/16"
x
13-9/16"")
Weight 10 kg, (22 Ibs) net
*
Specifications
were
determined
using
Hi-Fi
tape
except
as
noted.
*
Improvements
may
result
in
specifications
or
features
change
without
notice.
Standard Accessories
Input-output
connection
cords,
Handles

Teac C-3 Specifications

Audio Specifications

track system	4-track 2-channel stereo
heads	3: Erase, record & playback
type of tape	Cassette tape C-60 and C-90
tape speed	1 7/8 ips
wow and flutter (NAB Weighted)	0.05 %
frequency response	20 — 20, 000 Hz
signal to noise ratio	58 dB
fast wind time	Approximately 90 seconds for C-60

Inputs and Outputs

line input	60 mV, 50 k ohms
microphone input	0.25 mV/-72 dB
line output	0.3 V for load impedance of 50 k ohms or more
headphone output	8 ohms
power requirements	100/117/220/240 V AC, 50/60 Hz, 25 W

Weight and Dimensions

dimensions	482(W) x 147(H) x 345(D) mm
weight	10 kg
