Teac C-3 User Manual

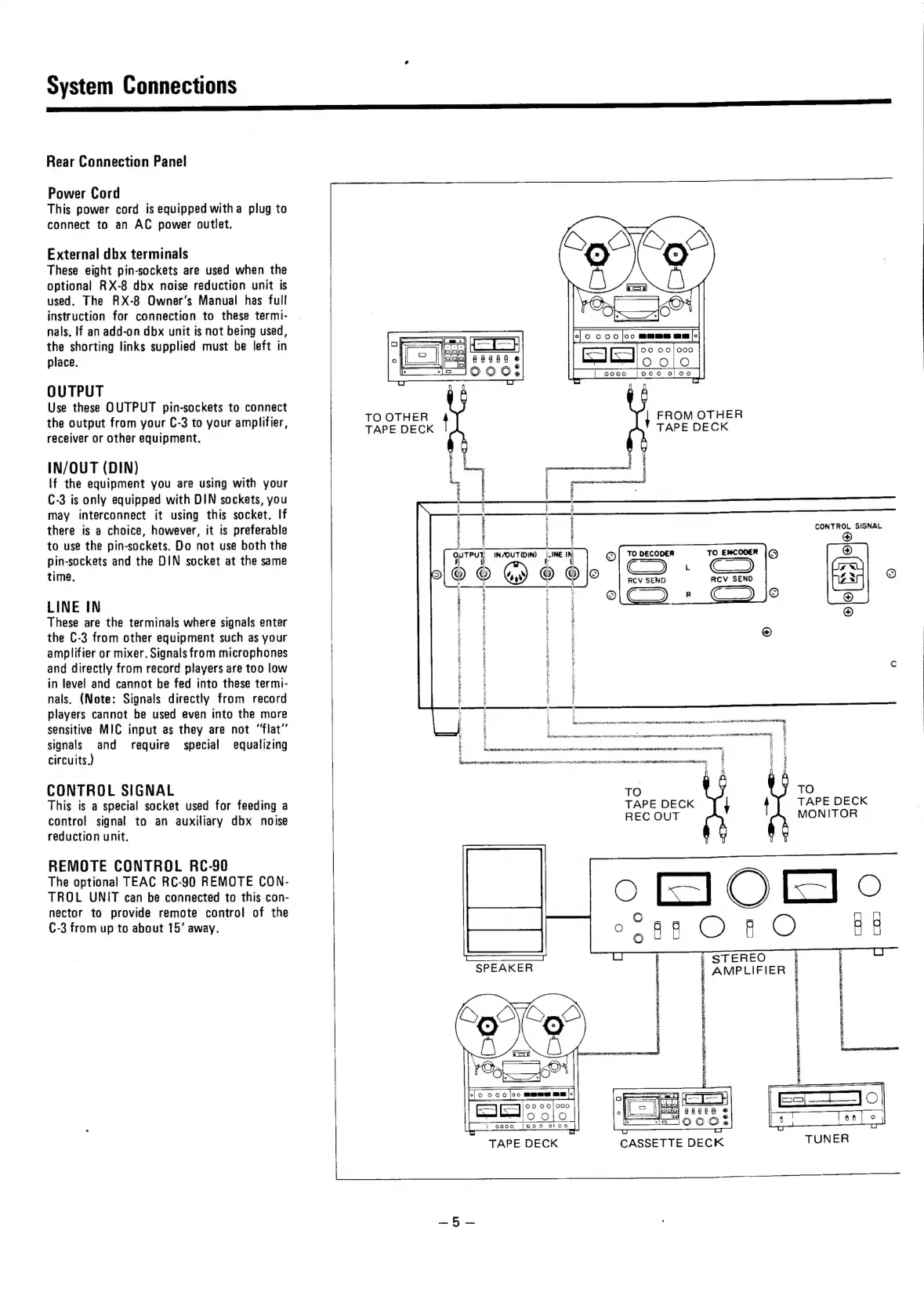

System Connections
Rear Connection Panel
Power Cord
This power cord is equipped witha plug to
connect to an AC power outlet.
External dbx terminals
These eight pin-sockets are used when the
optional RX-8 dbx noise reduction unit is
used. The RX-8 Owner’s Manual has full
instruction for connection to these termi-
nals. If an add-on dbx unit is not being used,
the shorting links supplied must be left in
place.
OUTPUT
Use these OUTPUT pin-sockets to connect
the output from your C-3 to your amplifier,
receiver or other equipment.
IN/OUT (DIN)
lf the equipment you are using with your
C-3 is only equipped with DIN sockets, you
may interconnect it using this socket. If
there is a choice, however, it is preferable
to use the pin-sockets. Do not use both the
pin-sockets and the DIN socket at the same
time.
LINE IN
These are the terminals where signals enter
the C-3 from other equipment such as your
amplifier or mixer. Signals from microphones
and directly from record players are too low
in level and cannot be fed into these termi-
nals. (Note: Signals directly from record
players cannot be used even into the more
sensitive MIC input as they are not “flat”
signals and require special equalizing
circuits.)
CONTROL SIGNAL
This is a special socket used for feeding a
control signal to an auxiliary dbx noise
reduction unit.
REMOTE CONTROL RC-90
The optional TEAC RC-90 REMOTE CON-
TROL UNIT can be connected to this con-
nector to provide remote control of the
C-3 from up to about 15’ away.
eee
00 00/000
©
| oco0o |9000 ape)
=
FROM OTHER
TAPE DECK
TO OTHER
TAPE DECK
ws
|
_
QaTPu ONTO) i
© C ») €
CONTROL SIGNAL
__| 2.2 case rarer
TO DECODER
Cc & C2
RCV SEND RCV SEND
LB TIN MMER ASE
Has. es SR Ate
EF RPE IP ARERR SE MAS LE SE:
TO TO
TAPE DECK { TAPE DECK
REC
OUT
MONITOR
=
SPEAKER
o] Oo 000 0° MMenen MEE |°
oo 00 00 00/000
== ae
+ g000 j|000 S100
TAPE DECK CASSETTE DECK TUNER

Teac C-3 Specifications

Audio Specifications

track system	4-track 2-channel stereo
heads	3: Erase, record & playback
type of tape	Cassette tape C-60 and C-90
tape speed	1 7/8 ips
wow and flutter (NAB Weighted)	0.05 %
frequency response	20 — 20, 000 Hz
signal to noise ratio	58 dB
fast wind time	Approximately 90 seconds for C-60

Inputs and Outputs

line input	60 mV, 50 k ohms
microphone input	0.25 mV/-72 dB
line output	0.3 V for load impedance of 50 k ohms or more
headphone output	8 ohms
power requirements	100/117/220/240 V AC, 50/60 Hz, 25 W

Weight and Dimensions

dimensions	482(W) x 147(H) x 345(D) mm
weight	10 kg
