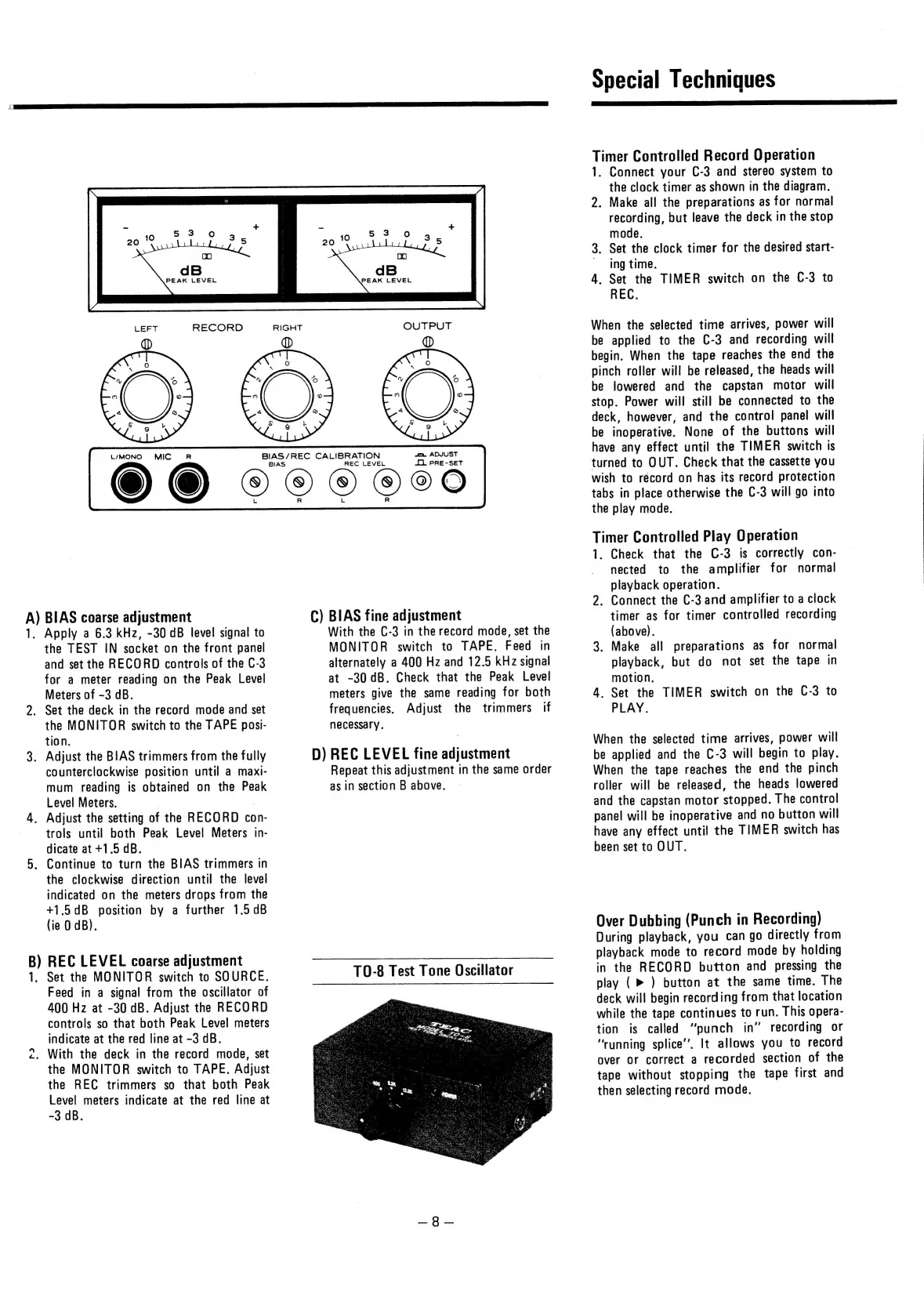

LEFT RECORD
L/MONO MIC R
A) BIAS coarse adjustment
. Apply a 6.3 kHz, -30 dB level signal to
the TEST IN socket on the front panel
and set the RECORD controls of the C-3
for a meter reading on the Peak Level
Meters of -3 dB.
Set the deck in the record mode and set
the MONITOR switch to the TAPE posi-
tion.
. Adjust the BIAS trimmers from the fully
counterclockwise position until a maxi-
mum reading is obtained on the Peak
Level Meters.
. Adjust the setting of the RECORD con-
trols until both Peak Level Meters in-
dicate at +1.5 dB.
Continue to turn the BIAS trimmers in
the clockwise direction until the level
indicated on the meters drops from the
+1.5dB position by a further 1.5 dB
(ie 0 dB).
B) REC LEVEL coarse adjustment
1. Set the MONITOR switch to SOURCE.
ro
Feed in a signal from the oscillator of
400 Hz at -30 dB. Adjust the RECORD
controls so that both Peak Level meters
indicate at the red line at -3 dB.
. With the deck in the record mode, set
the MONITOR switch to TAPE. Adjust
the REC trimmers so that both Peak
Level meters indicate at the red line at
-3 dB.
Bina RES CARER ATION:
© © © ©oO
= sate doe
C) BIAS fine adjustment
With the C-3 in the record mode, set the
MONITOR switch to TAPE. Feed in
alternately a 400 Hz and 12.5 kHz signal
at -30dB. Check that the Peak Level
meters give the same reading for both
frequencies. Adjust the trimmers if
necessary.
D) REC LEVEL fine adjustment
Repeat this adjustment in the same order
as in section B above.
70-8
Test
Tone
Oscillator
Special Techniques
EG A eT
Timer Controlled Record Operation
1. Connect your C-3 and stereo system to
the clock timer as shown in the diagram.
2. Make all the preparations as for normal
recording, but leave the deck in the stop
mode.
3. Set the clock timer for the desired start-
ing time.
4. Set the TIMER switch on the C-3 to
REC.
When the selected time arrives, power will
be applied to the C-3 and recording will
begin. When the tape reaches the end the
pinch roller will be released, the heads will
be lowered and the capstan motor will
stop. Power will still be connected to the
deck, however, and the control panel will
be inoperative. None of the buttons will
have any effect until the TIMER switch is
turned to OUT. Check that the cassette you
wish to récord on has its record protection
tabs in place otherwise the C-3 will go into
the play mode.
Timer Controlled Play Operation
1. Check that the C-3 is correctly con-
nected to the amplifier for normal
playback operation.
2. Connect the C-3 and amplifier to a clock
timer as for timer controlled recording
(above).
3. Make all preparations as for normal
playback, but do not set the tape in
motion.
4. Set the TIMER switch on the C-3 to
PLAY.
When the selected time arrives, power will
be applied and the C-3 will begin to play.
When the tape reaches the end the pinch
roller will be released, the heads lowered
and the capstan motor stopped. The control
panel will be inoperative and no button will
have any effect until the TIMER switch has
been set to OUT.
Over Dubbing (Punch in Recording)
During playback, you can go directly from
playback
mode
to
record
mode
by
holding
in the RECORD button and pressing the
play (> ) button at the same time. The
deck will begin recording from that location
while the tape continues to run. This opera-
tion is called “punch in” recording or
“running splice’. It allows you to record
over or correct a recorded section of the
tape without stopping the tape first and
then selecting record mode.

Teac C-3 Specifications

Audio Specifications

track system	4-track 2-channel stereo
heads	3: Erase, record & playback
type of tape	Cassette tape C-60 and C-90
tape speed	1 7/8 ips
wow and flutter (NAB Weighted)	0.05 %
frequency response	20 — 20, 000 Hz
signal to noise ratio	58 dB
fast wind time	Approximately 90 seconds for C-60

Inputs and Outputs

line input	60 mV, 50 k ohms
microphone input	0.25 mV/-72 dB
line output	0.3 V for load impedance of 50 k ohms or more
headphone output	8 ohms
power requirements	100/117/220/240 V AC, 50/60 Hz, 25 W

Weight and Dimensions

dimensions	482(W) x 147(H) x 345(D) mm
weight	10 kg
