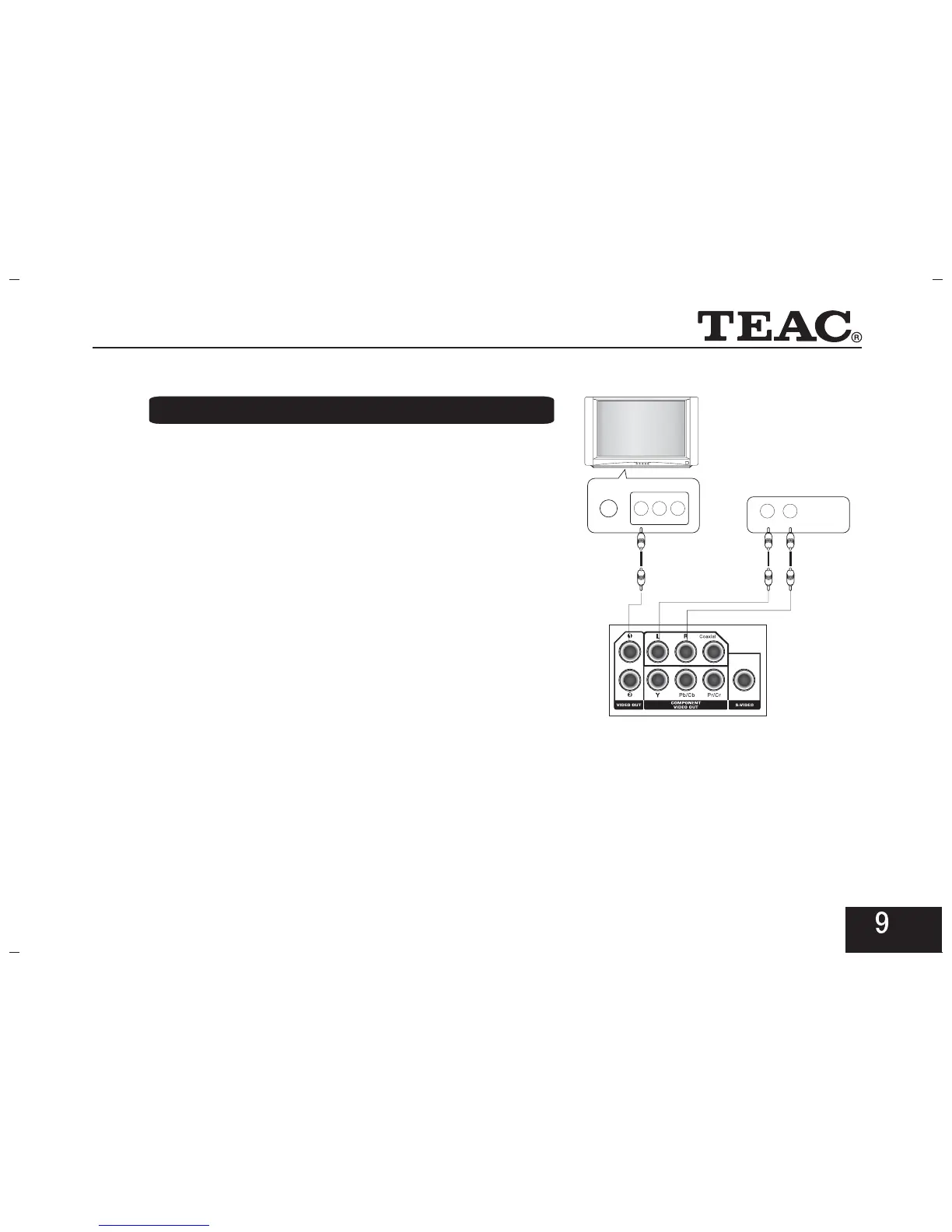

The specific connection is indicated in the picture on
the right.
Connecting an Audio Power Amplifier
1. Connection with a dual-channel power
amplifier.
VIDE O L-AUDIO-R
S-VIDEO
LR
AMPLIFIER
Directly connect the coaxial cord of the amplifier with the
coaxial terminal of this equipment, then, connect the video
terminal of this equipment with the TV video terminal.
When you perform the coaxial output function, refer to
for specific method for the setup.
5.4
Audio Setup
2.Connection to a power amplifier with digital
audio coaxial terminal.
