7

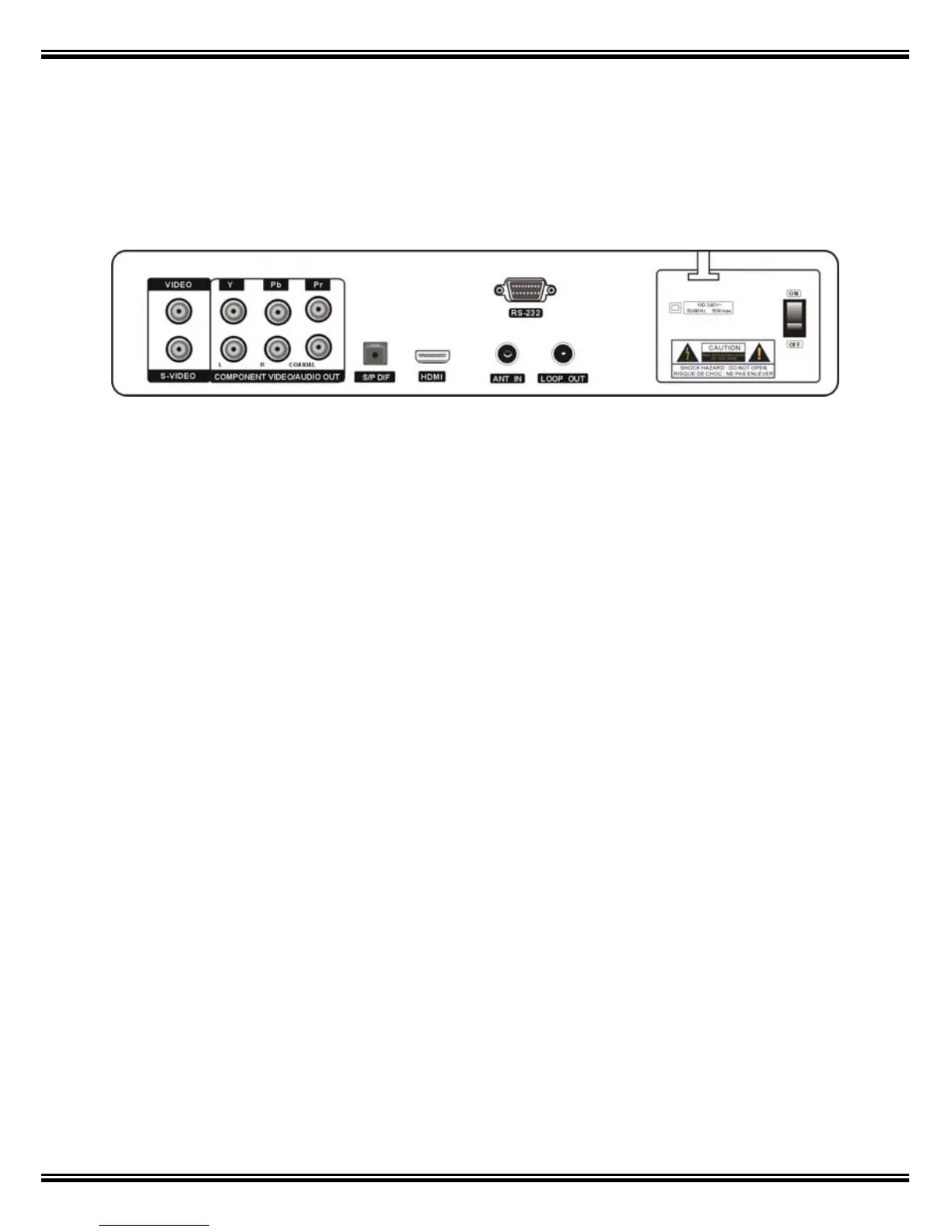

3. Rear Panel
VIDEO: Composite CVBS video output, RCA
S-VIDEO: Y/C Luminance Chrominance video output, 1 x 4 pin MiniDin
Y,Pb,Pr: Component HD video output analogue, 3 x RCA.
AUDIO L/R: Left and Right channel analogue audio outputs, 2 x RCA.
COAXIAL： Digital audio output
SP/DIF: Optical digital audio outputs, 1 x Toslink.
HDMI: Digital HD video and digital audio output, 1 x HDMI
ANT IN : Connect to your external aerial, essential for stable pictures.
LOOP OUT: Antenna RF output, for terminator or another receiver as required.
RS-232: Permits software upgrade, use only when necessary.
100 to 240V: Mains Power input, connect plug to mains for operation.
ON/OFF: Mains Power Switch, use to switch receiver off or re-set.
